| Item | Specification |
| Brand | EPEPRO |
| Model | EPAD101-22VM |
| Product Type | Digital Voltmeter |
| Display Type | LED Digital Display |
| Display Shape | Round Crystal Lens |
| Mounting Hole | 22mm |
| Face Diameter | 30mm |
| Product Height | 37.4mm |
| Body Diameter | 20.4mm |
| Voltage Range | AC 50-500V |
| Rated Power | ≤0.5W |

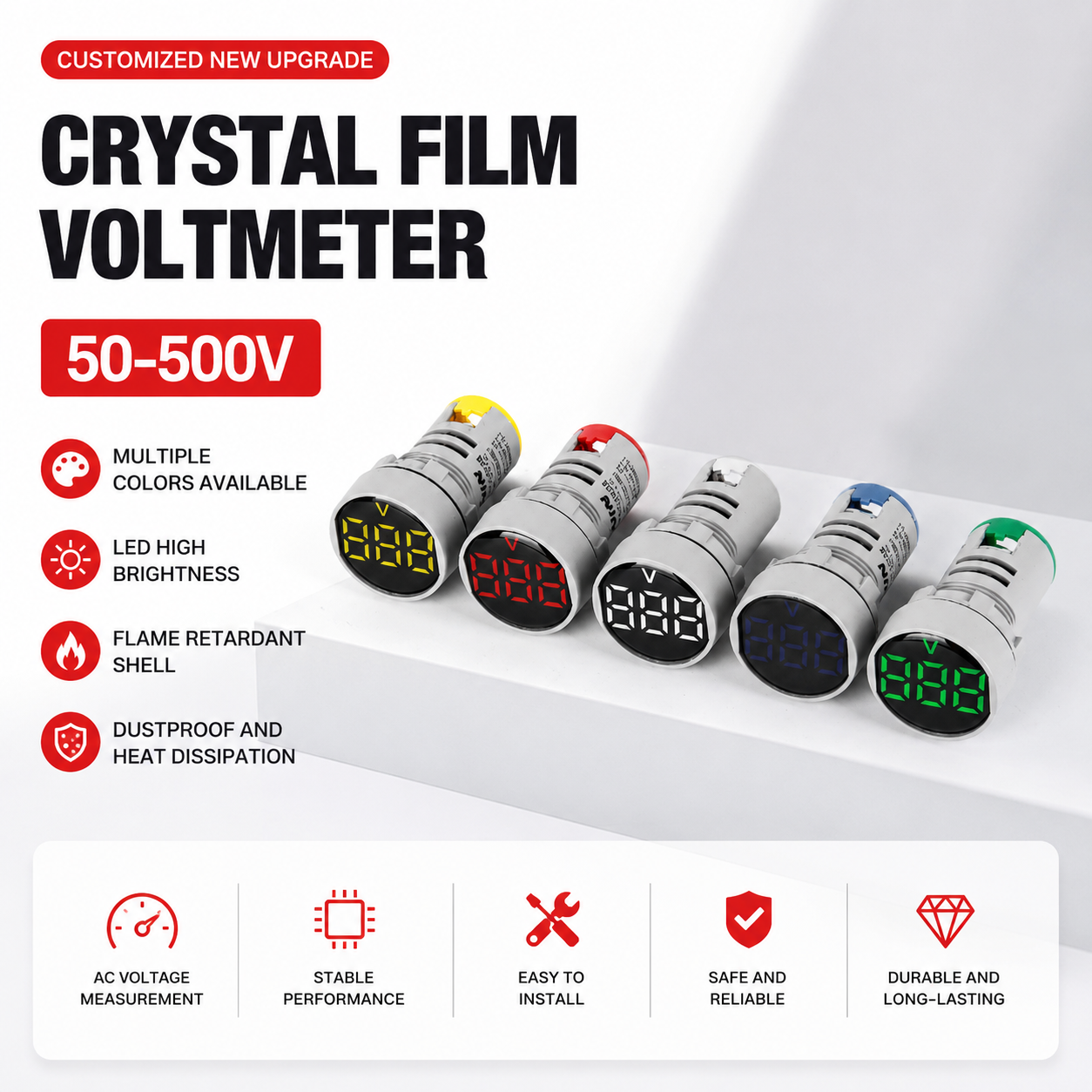

| Display Colors | White / Green / Red / Yellow / Blue |
| Operating Temperature | -25℃ ~ +65℃ |
| Relative Humidity | ≤98% |
| Weight | 0.025kg |
| Housing Material | Flame Retardant ABS |
| Installation Type | Panel Mount |
| OEM Service | Available |
| ODM Service | Available |
| Certification | CE |
Product Overview

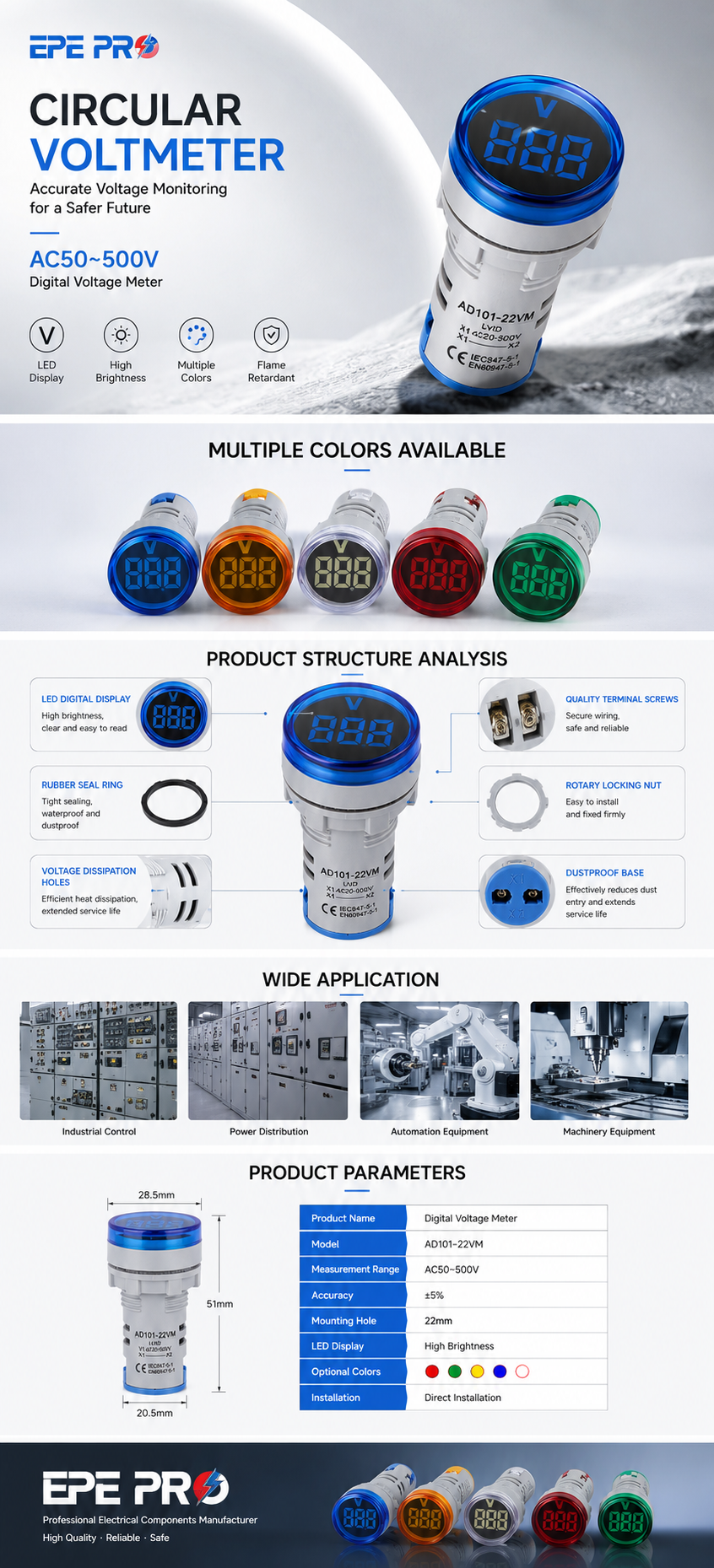

The EPEPRO EPAD101-22VM is a round crystal lens LED digital voltmeter designed for real-time AC voltage monitoring. Featuring a compact 22mm panel mount structure, bright LED display, and crystal lens appearance, it provides clear and accurate voltage readings from AC 50V to 500V.
Its elegant round design, multiple LED color options, and easy installation make it ideal for electrical cabinets, control panels, generator systems, power distribution equipment, and industrial automation applications.
