| Item | Parameter |
| Model | EPPV-32X (EPFU-HOLDER-LINK) |
| Rated Voltage | DC 1000V |
| Rated Current | 1A-32A |
| Fuse Size | 10×38 mm |
| Breaking Capacity | DC 30kA |
| Mounting Way | DIN Rail 35mm |
| Housing Material | Flame-retardant PC |
| Terminal | Tinned copper |
| Indicator | Red blown-out indicator light |
| Standard | IEC 60269-6 |
| Certification | CE, RoHS |
| Wire Range | 1-25mm² |
| Torque | 2.0-3.5N·m |
| Application | Solar PV system, DC combiner box |

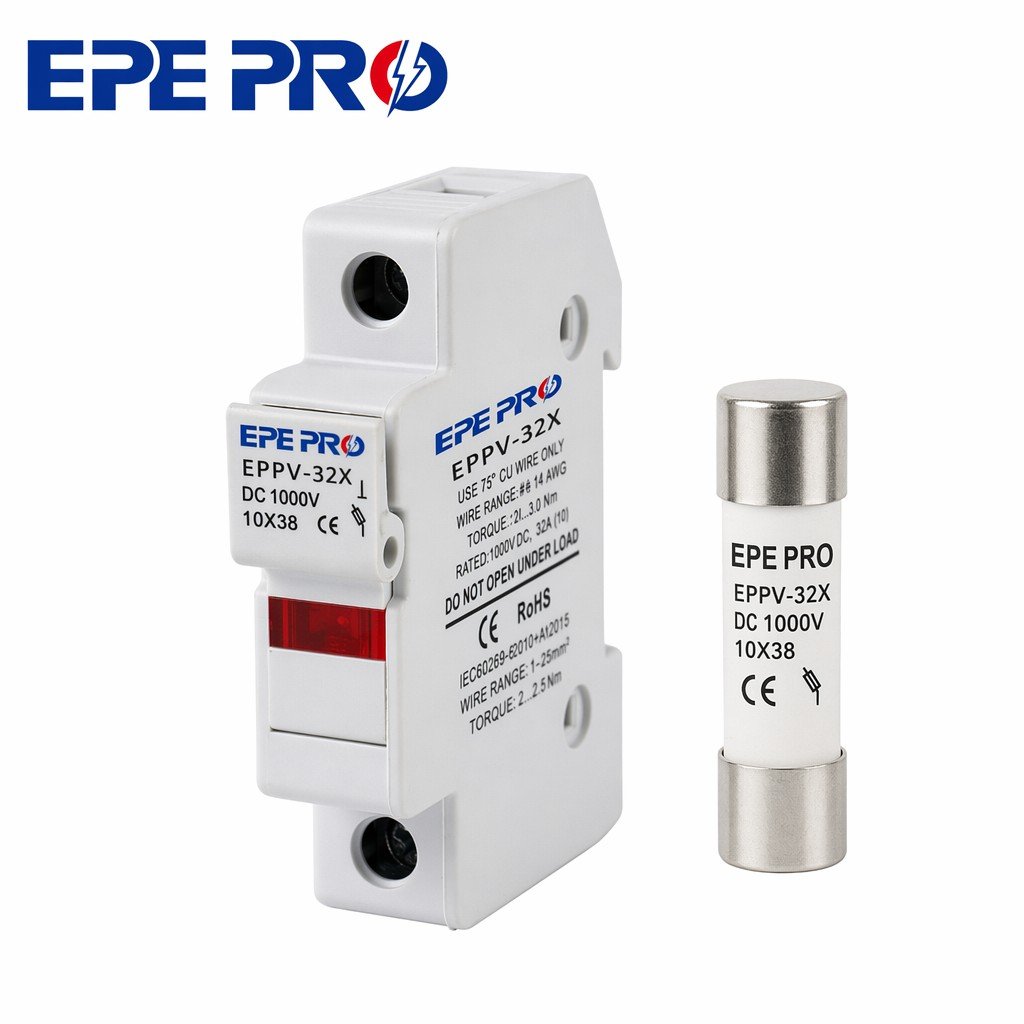

Complete set：Holder + Fuse Link Ready‑to‑use assembly, saving matching work for solar project installation. 1‑32A current options for different PV string requirements.

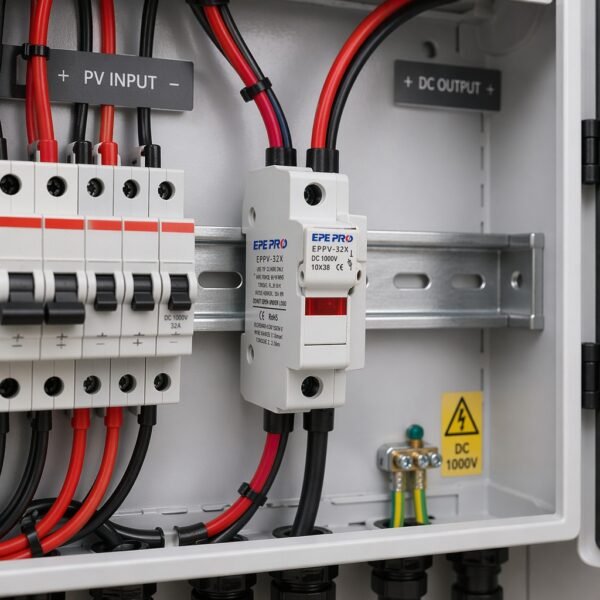

DC 1000V High‑voltage rating Perfect for solar combiner box, offers reliable over‑current and short‑circuit protection for PV modules and DC circuits.
Blown‑out visual indicator Red window turns obvious when fuse blows, quick fault checking without disassembly.
Flame‑retardant insulated housing High‑quality PC material, anti‑aging, high‑temperature resistance, stable performance under harsh outdoor PV working environment.
DIN‑rail installation Simple clip‑on mounting on standard 35mm DIN rail, easy wiring and replacement of fuse link. Tinned copper terminals ensure low‑resistance stable connection.
Strict quality certification Complies with IEC60269‑6 standard, CE & RoHS approved. Widely used in residential & commercial solar power plants, PV combiner boxes.
