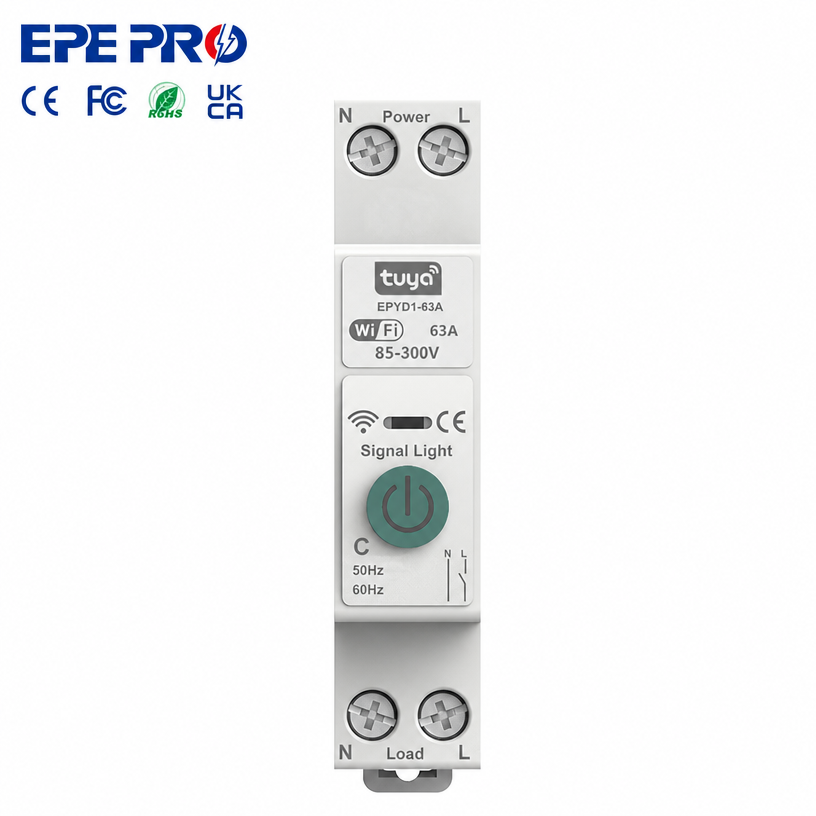

| Brand | EPEPRO |
| Model Number | EPYD1-63A C |
| Current rating | 63 A |
| Rated operational voltage | 80-300V |
| Product dimensions | 9.2 × 1.9× 7.2 cm |
| Material | Copper |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |
About this item
WiFi Remote Control — Turn your circuit breaker on/off from anywhere via the Tuya / Smart Life app (2.4GHz WiFi connection).
Timer & Schedule — Set custom on/off timers and weekly schedules to automate your electrical devices automatically.

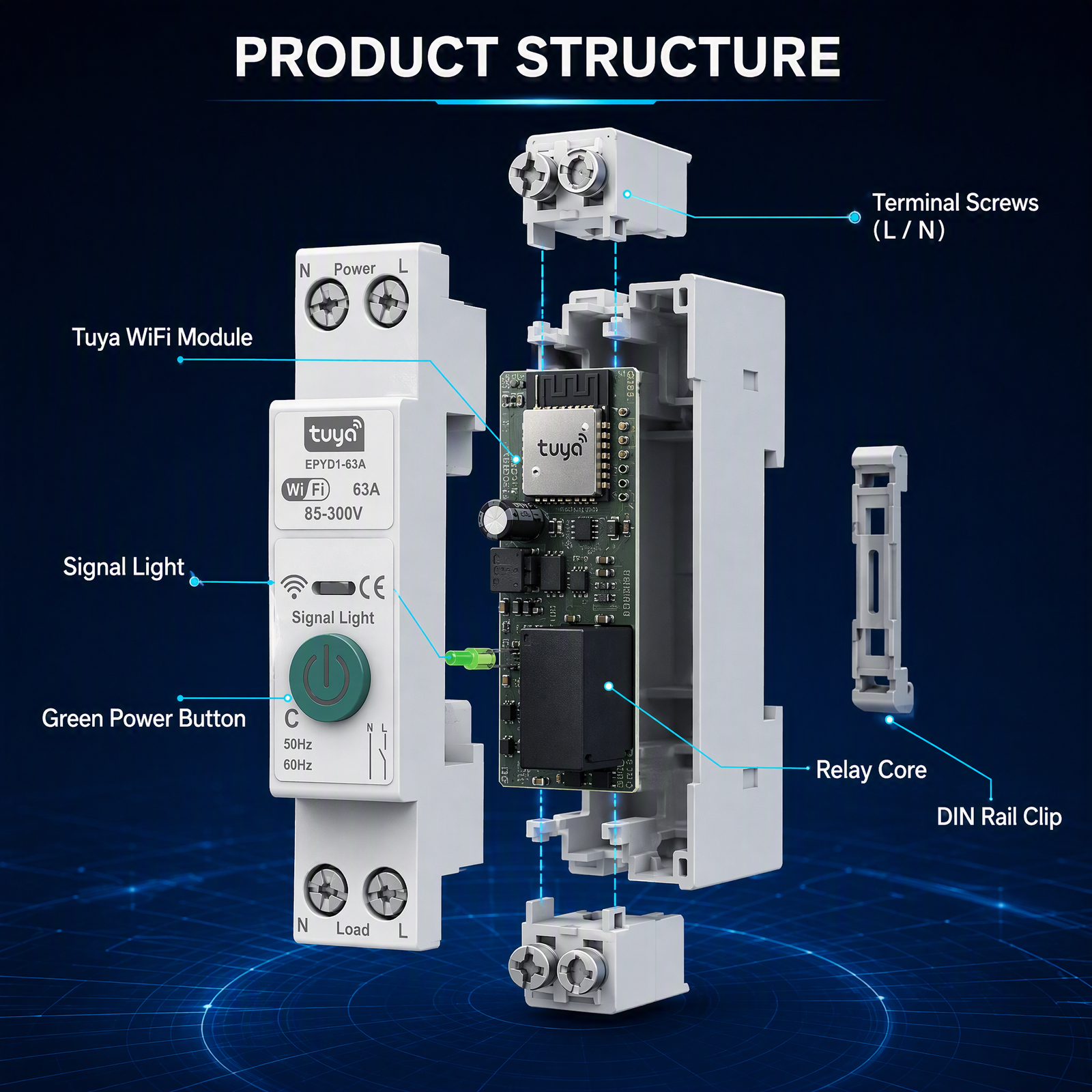

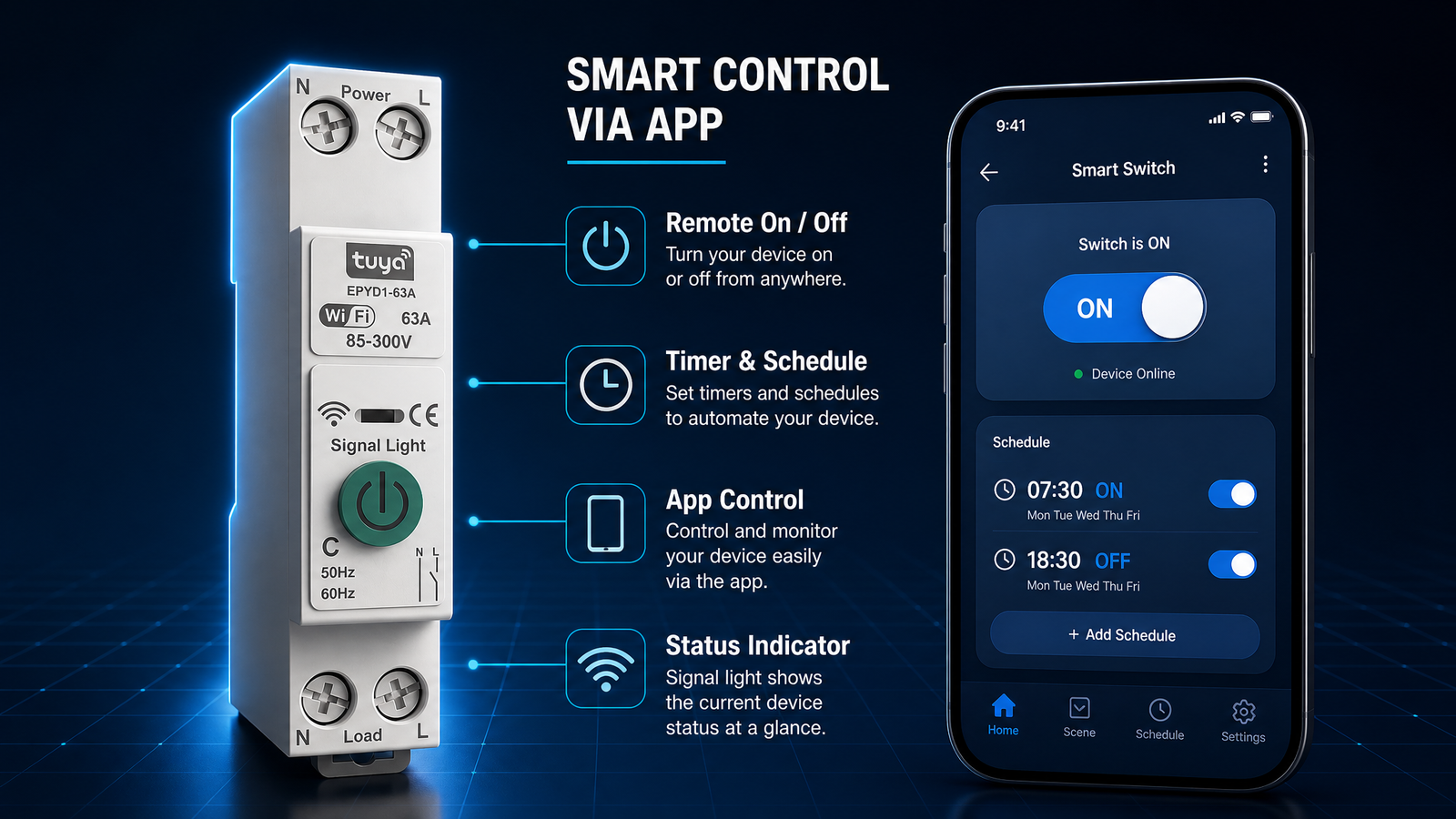

App Management — Control and monitor your device conveniently from your smartphone, with instant status feedback and a signal light indicator.
Local Control — Large green power button allows direct manual on/off switching at the device, even without the app.

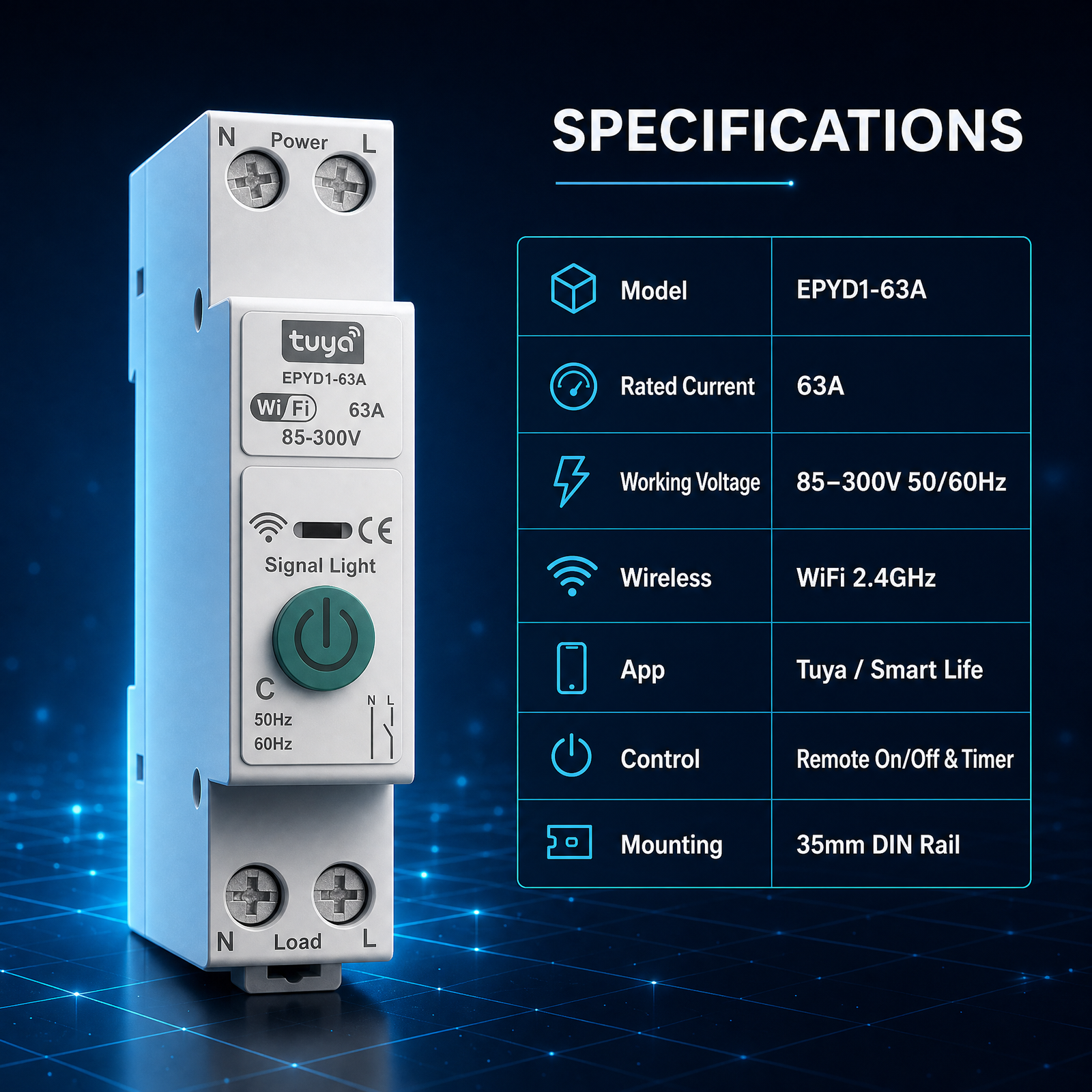

Reliable Specifications — Rated current 63A, working voltage 85–300V, 50/60Hz, 1P+N circuit protection design.

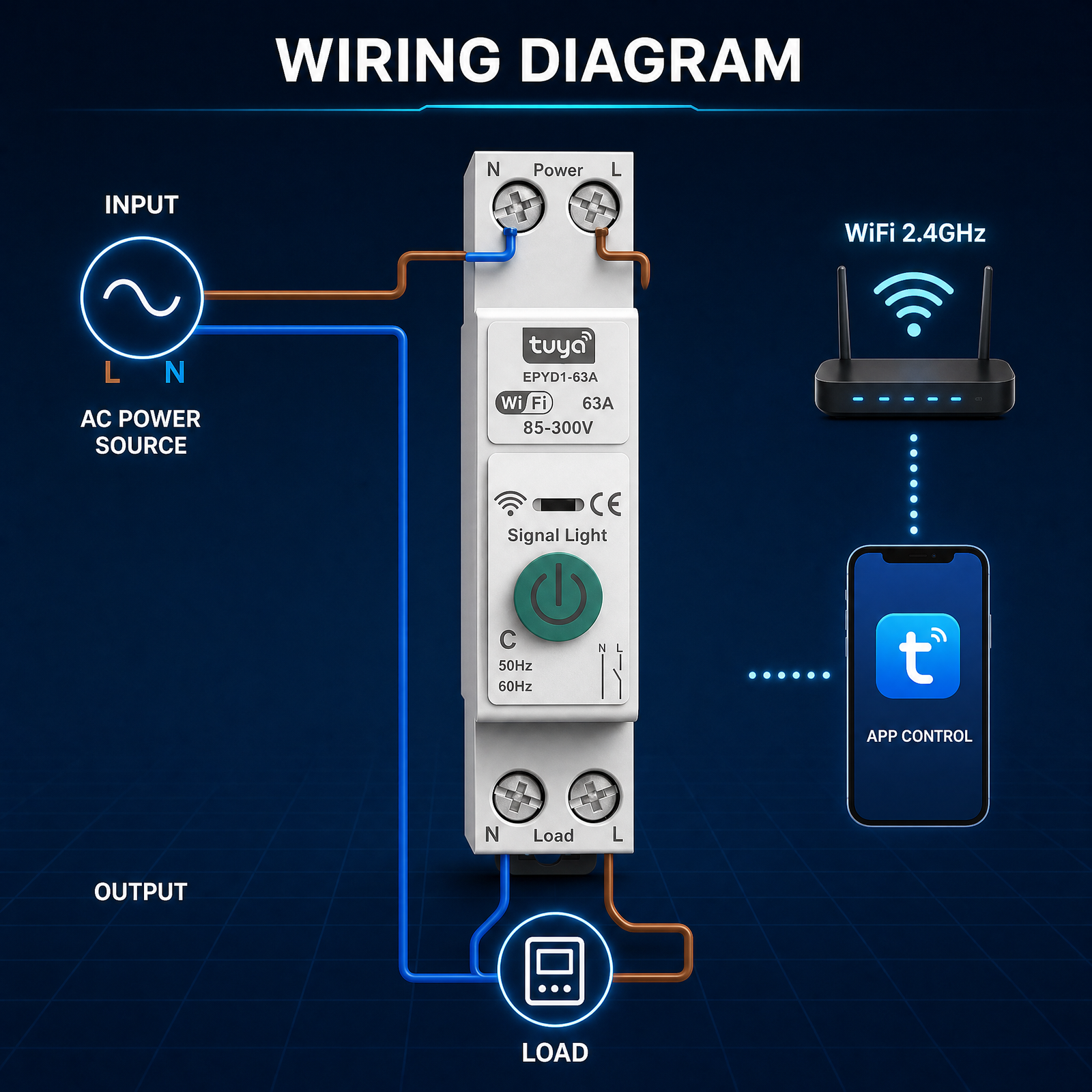

Easy DIN Rail Installation — Compact single-module design (35mm standard DIN rail), simple snap-on installation in home or office distribution boxes.

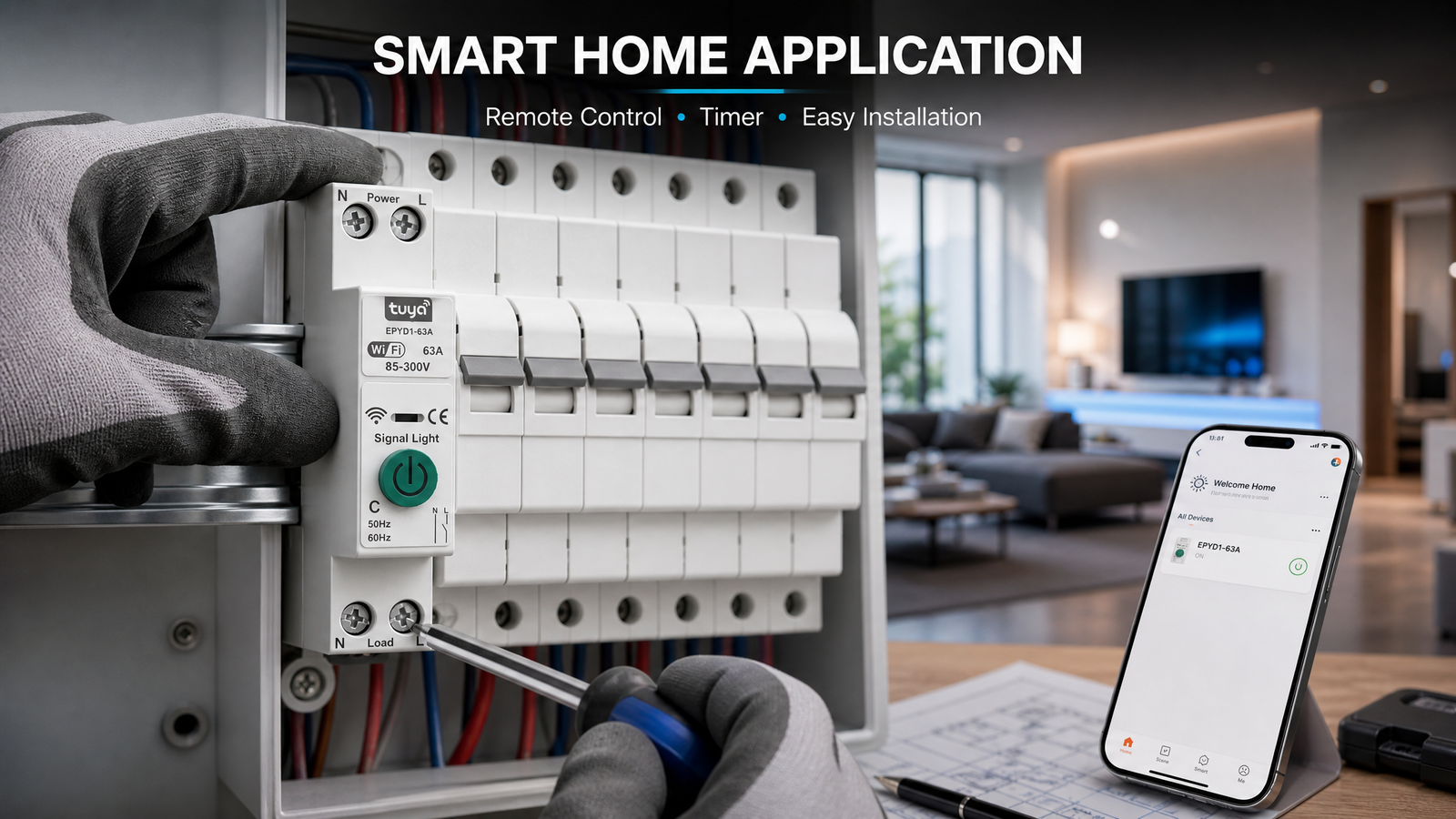

Wide Application — Ideal for home distribution panels, apartments, offices, shops and small commercial spaces.
Technical Data
| Product type | WIFI Miniature Circuit Breaker |
| Pole number | 2P |
| Rated frequency | 50/60Hz |
| Curve code | BC |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Mounting support | 35mm DIN rail |
| operating temperature | -25℃ – +60℃ |
| Standard | IEC60898-1 |
