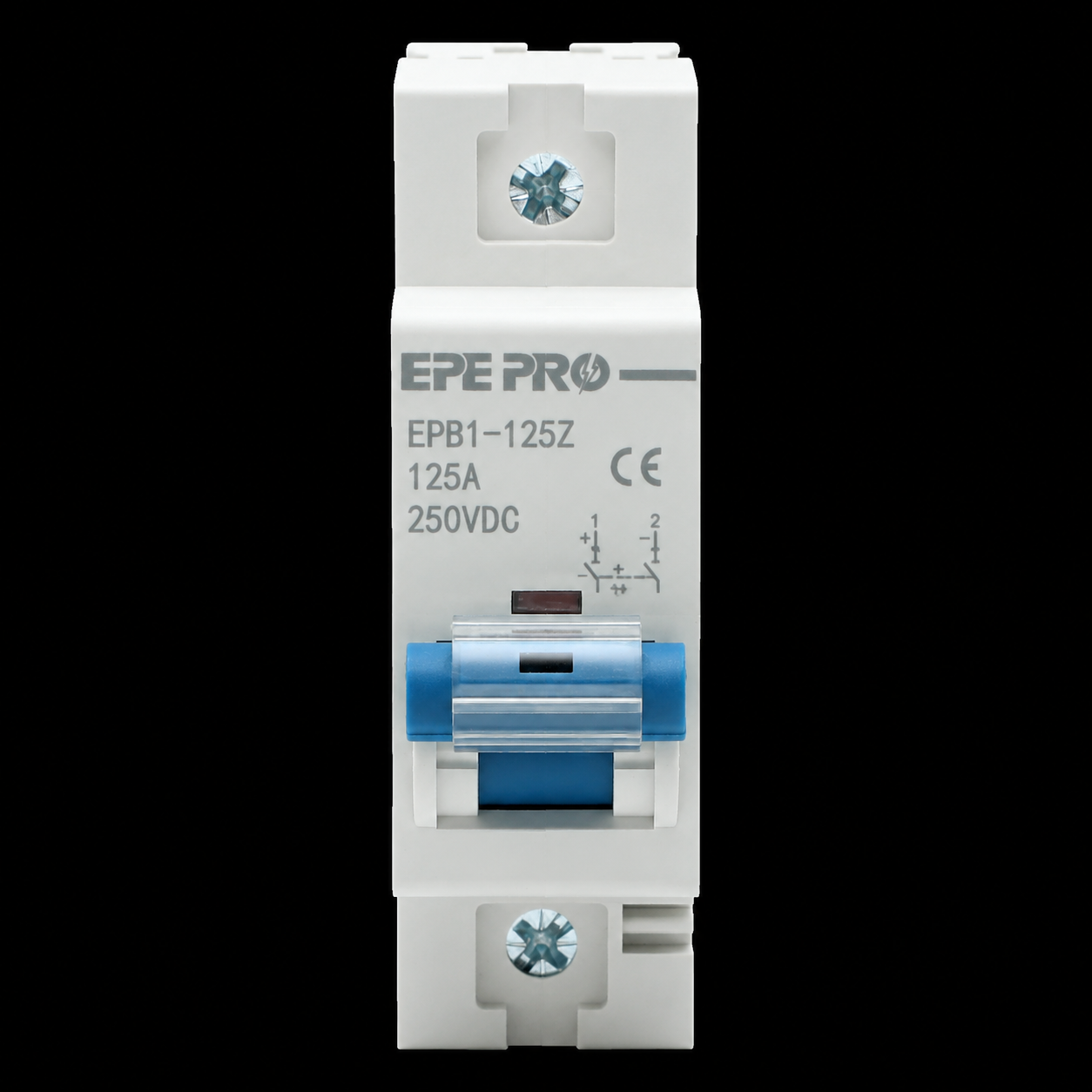

| Brand | EPEPRO |
| Model Number | EPB1-125Z 1P DC 250V |
| Current rating | 125A |
| Rated operational voltage | 120V / 240V AC |

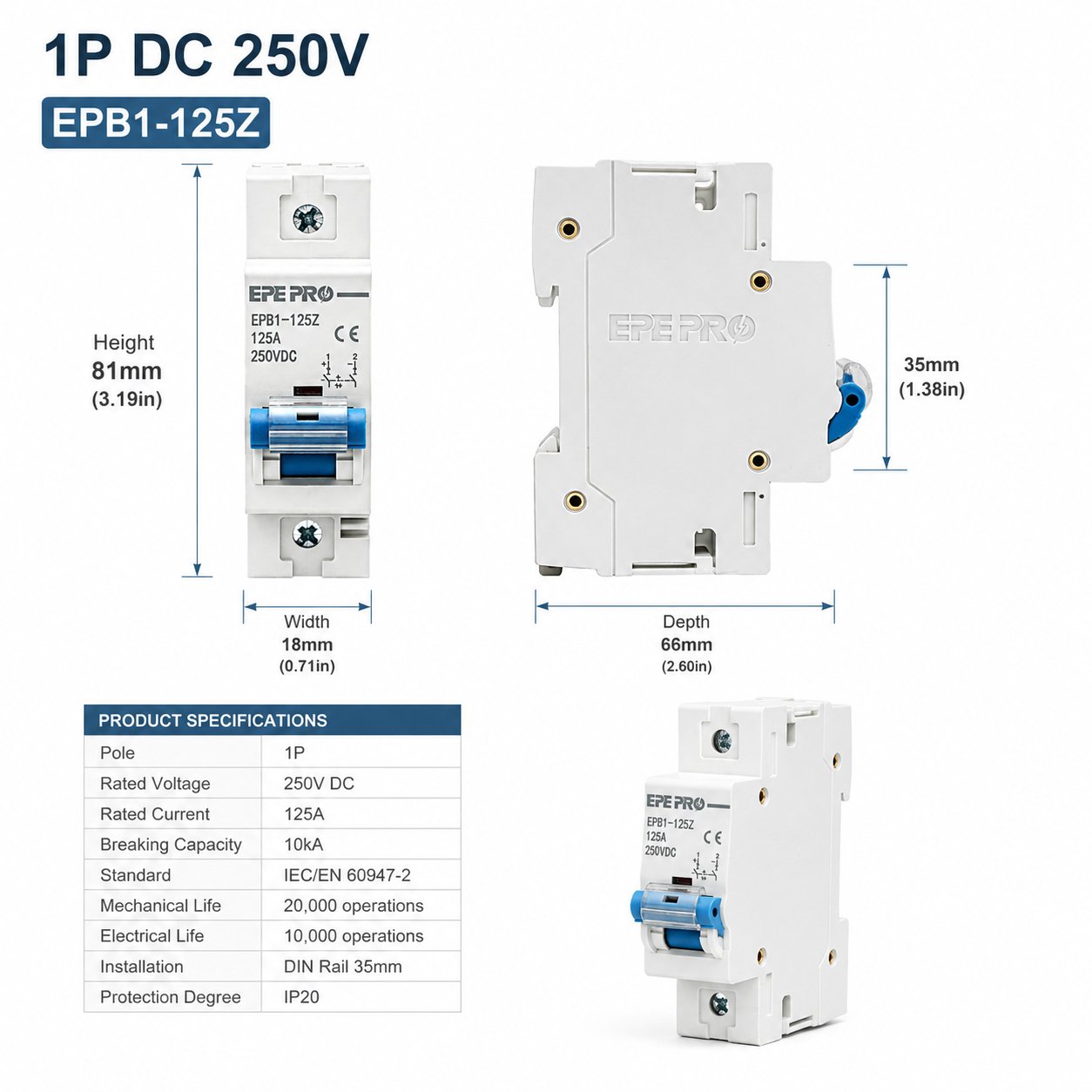

| Product dimensions | 1.8 × 7.4× 8.2 cm |
| Material | Copper |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |
About this item
【Excellent Performance】63 Amp DC 250V solar switch on off, no polarity. Rated Voltage: DC 12-500V protect – and + pole or AC 90~500V protect L and N pole. After iterative upgrading, the short-circuit protection capacity has been increased to 6kA to ensure higher safety and reliability.

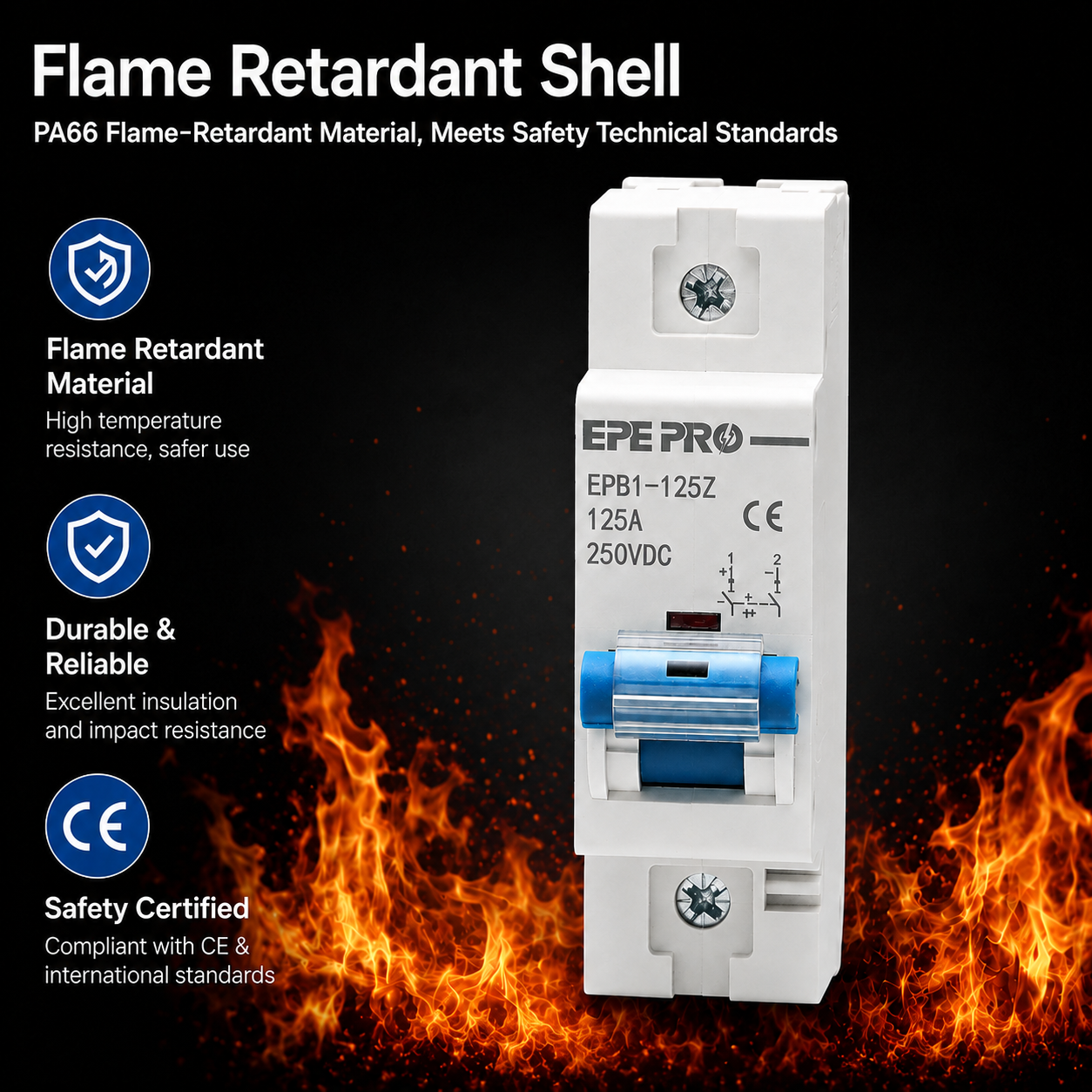

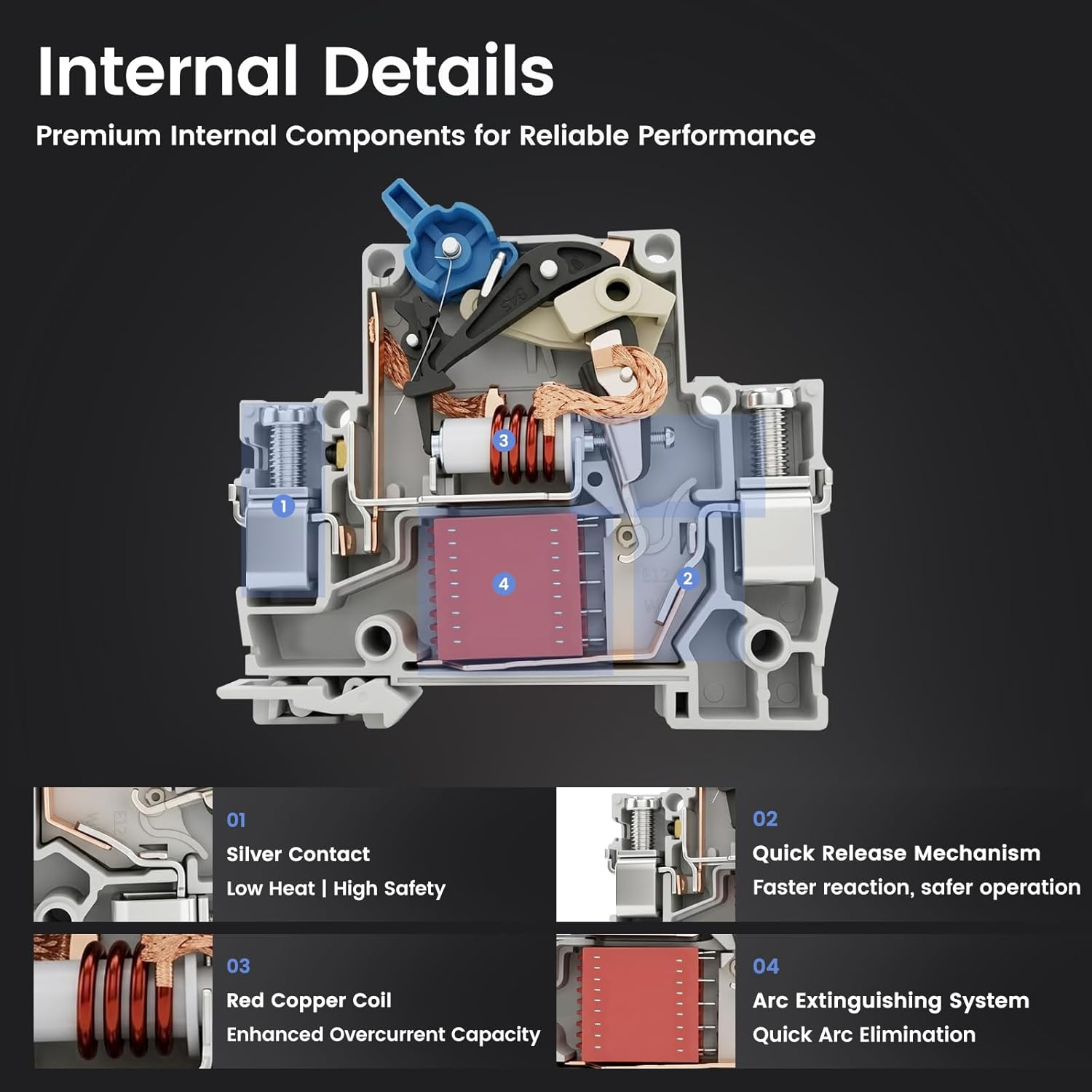

【High Quality Design】Circuit breaker housings flame retardants have been added to ensure safety with a V1 flame retardant rating. With color indicators, monitoring the status and operation of your circuit breaker has never been easier. Silver contacts, and sufficient pure copper coils to ensure its high quality.
【Easy to Use】 Solar disconnect switches are designed to be more precise trips based on current, even in extreme temperatures ranging from -40ºC to 85ºC, without re-rating.
【Widely Application】The 10 amp solar disconnect switch is suitable for photovoltaic solar panel array, solar charge controller, batteries, power inverter, household lighting, small motor control, home, RV, etc.
【Quality Service, Buy with Confidence】 At EPEPRO, each product undergoes strict quality inspection, to ensure that you receive are satisfied with the product, high-quality solar circuit breaker will bring you safer and higher quality green of life!
Technical Data
| Product type | DC miniature circuit breaker |
| Pole number | 1P |
| Rated frequency | 50/60Hz |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Electrical durability | 4000 cycles |
| Mechanical durability | 10000cycles |
| Mounting support | 35mm DIN rail |
| operating temperature | -40℃ – +85℃ |
| Standard | IEC60898-1 |
