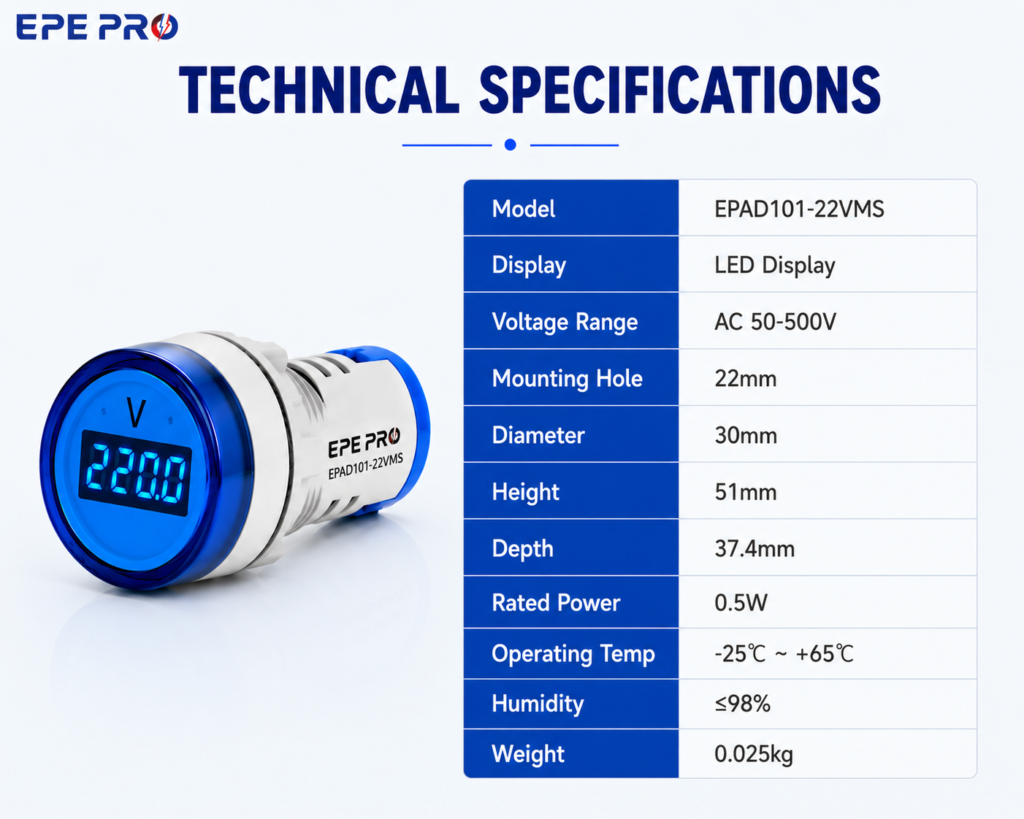

| Model | EPAD101-22VMS |
| Product Type | Digital Voltmeter |
| Display Type | LED Digital Display |
| Display Colors | Red / Green / Blue / Yellow / White |
| Voltage Range | AC 50-500V |
| Mounting Hole | 22mm |
| Product Diameter | 30mm |
| Product Height | 51mm |
| Product Depth | 37.4mm |
| Rated Power | 0.5W |
| Operating Temperature | -25°C ~ +65°C |
| Relative Humidity | ≤98% |
| Housing Material | Flame Retardant ABS |
| Weight | 0.025kg |
| Installation Type | Panel Mount |
| Application | Distribution Cabinet/Generator System/Solar Power System/Industrial Control Panel |
Product Description

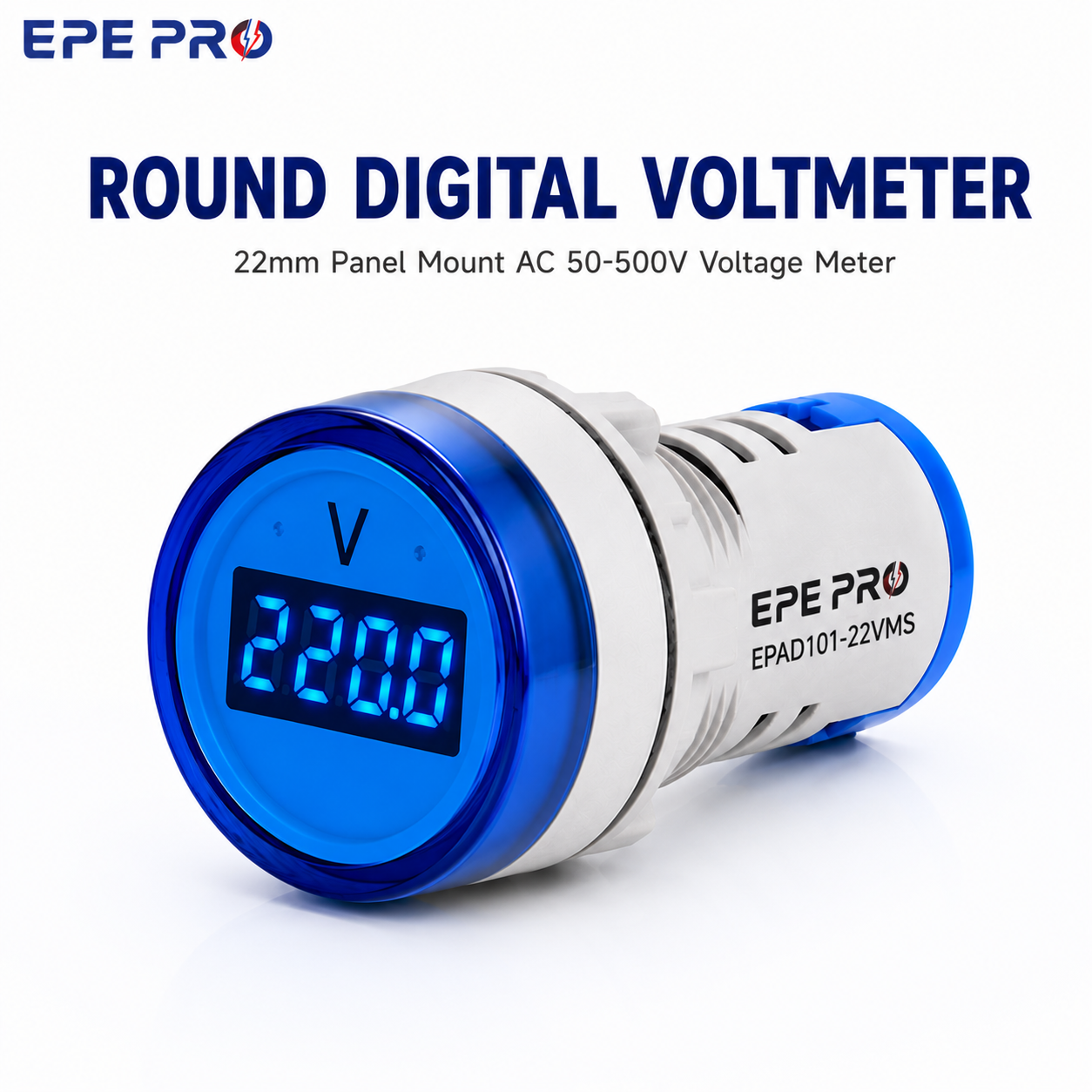

EPEPRO EPAD101-22VMS is a compact round digital voltmeter designed for real-time voltage monitoring in industrial and commercial electrical systems. Featuring a bright LED display and standard 22mm panel mounting design, it provides accurate and easy-to-read voltage measurements from AC 50V to 500V.
The meter is widely used in distribution cabinets, generator systems, solar power installations, industrial control panels, and electrical equipment where voltage monitoring is essential for safe and reliable operation.

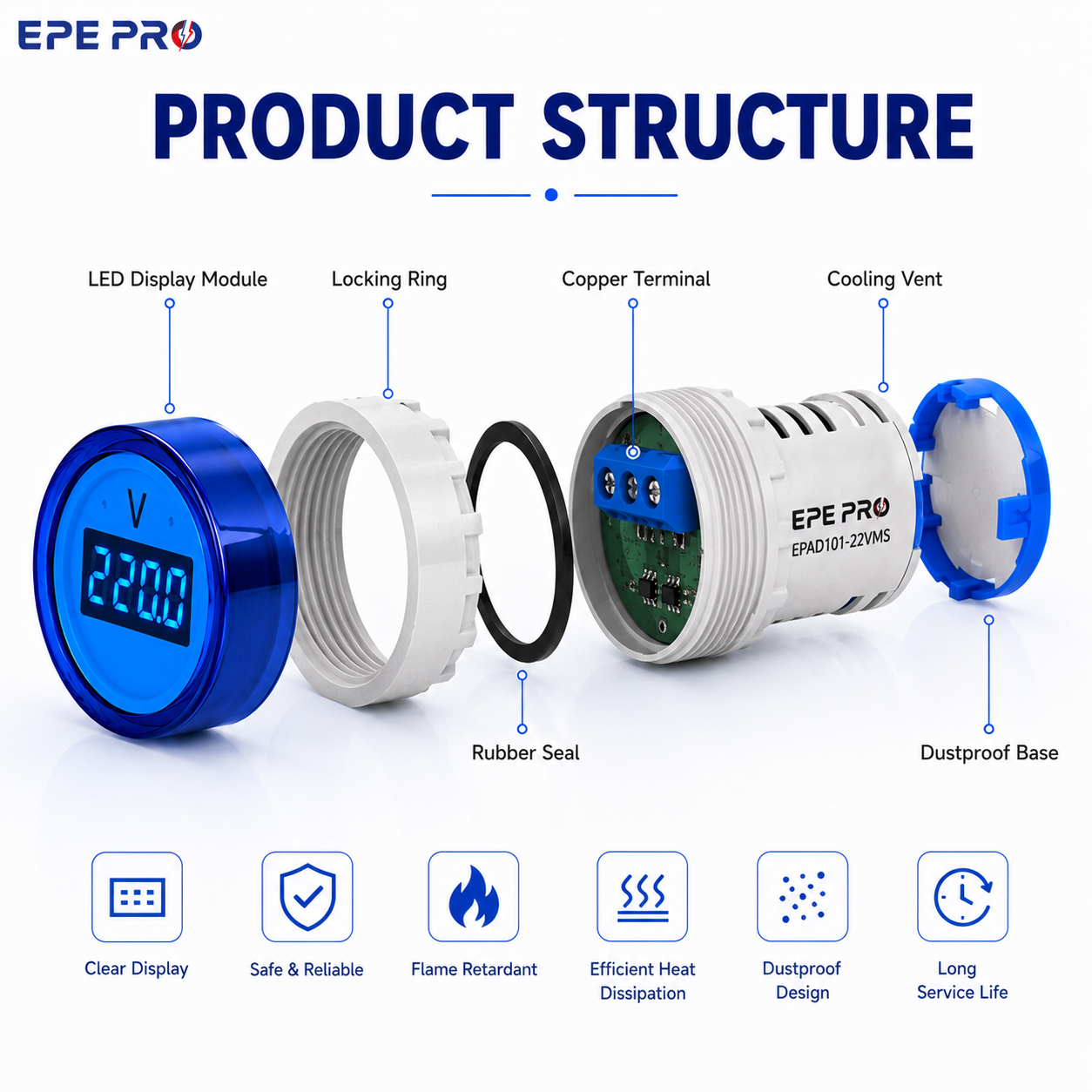

Built with a flame-retardant ABS housing, high-quality internal components, dustproof structure, and efficient heat dissipation design, the EPAD101-22VMS delivers stable performance and long service life in demanding industrial environments.
