| Type | EPNV-3P |
| Brand | EPEPRO |

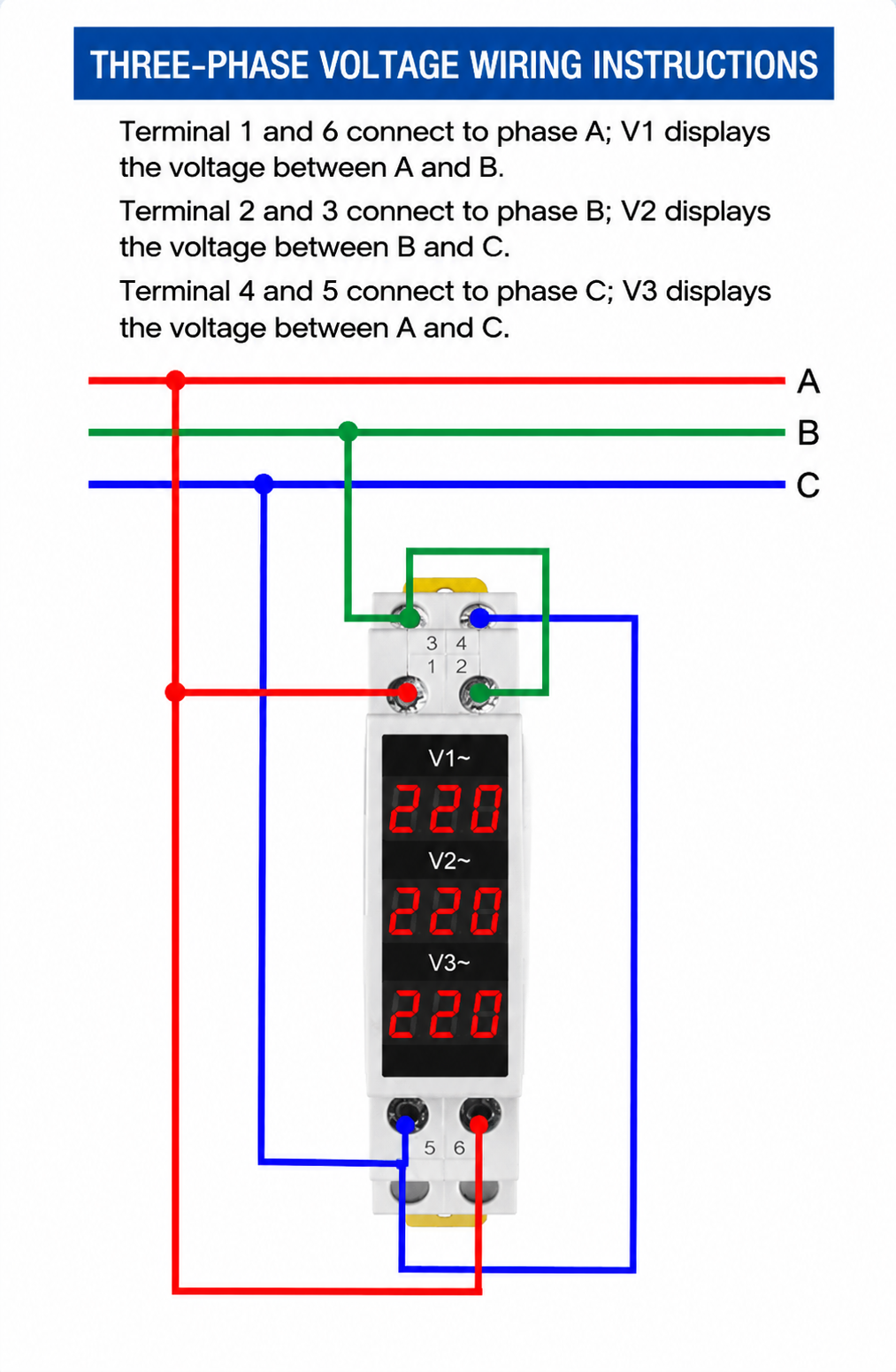

| Terminal for wiring | 3L+3N |
| Measurement voltage range | AC 80V~500V |
| Measuring accuracy | 1% |
| Measuring rate | >200MS/time |
| Protection degree | IP 20 |
| Electrical Life | ≥15000 hours |
| Working Conditions | temperature(with daily average ≤35℃ ) -5℃～+40℃ |
| Storage temperature | -25℃～+70℃ |
| Air relative humidity | 1-80%(no condensation) |
| Working pressure | 80～160Kpa |
| Weight | 75g |

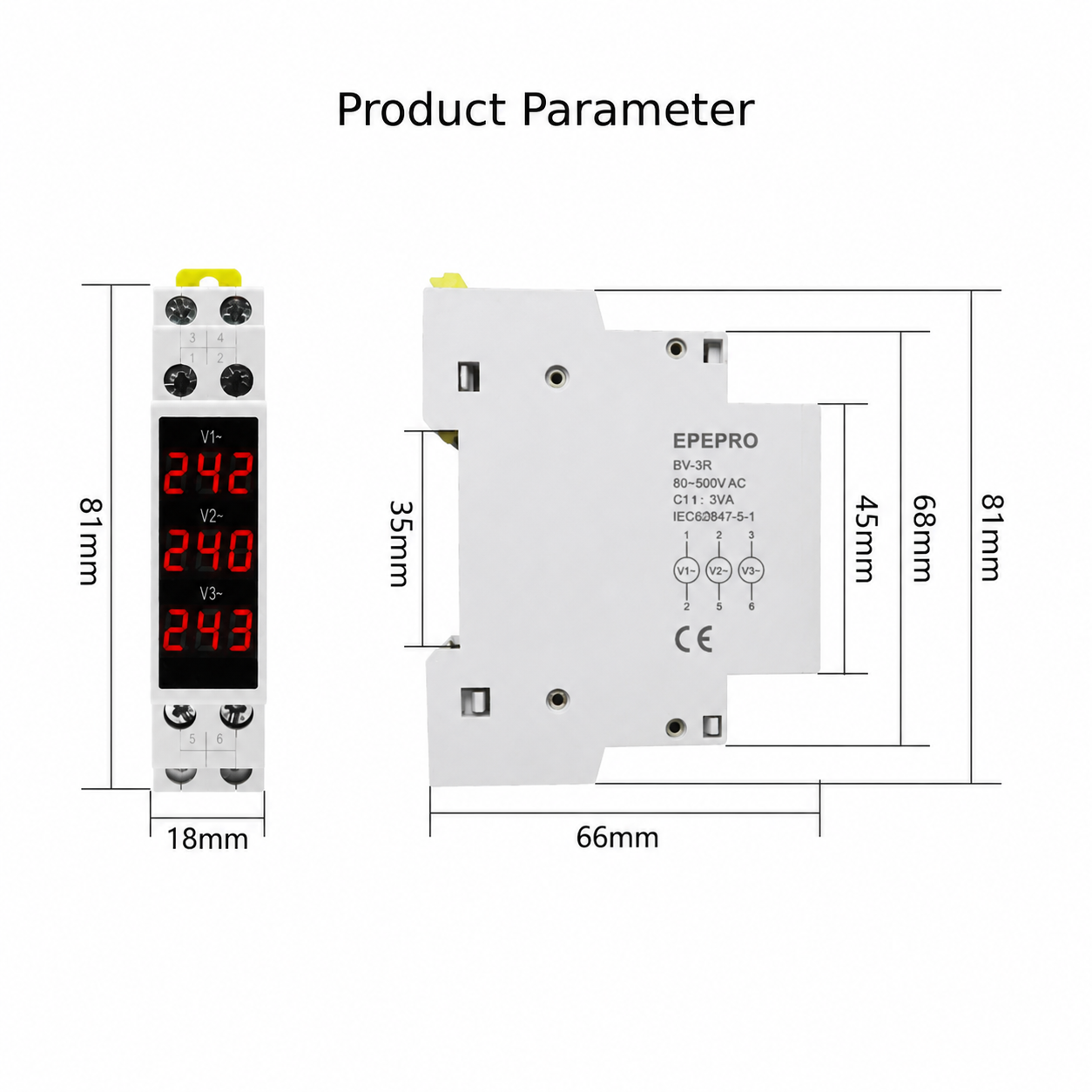

| Mounting | DIN rail (18mm) |
About this item

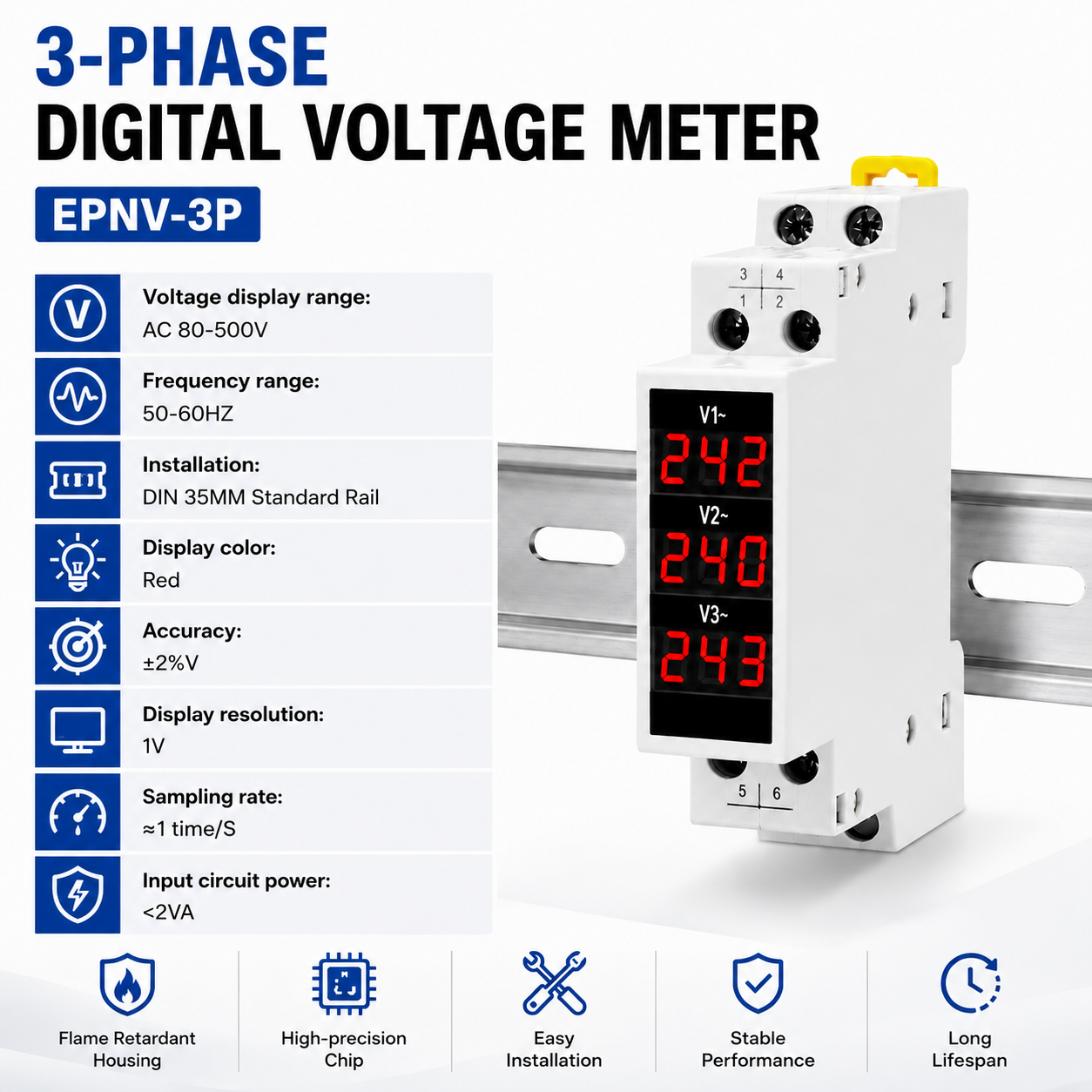

High precision: Enjoy accurate measurements with the AC 80-500V three-phase LED current meter, featuring a display resolution of 1V and an accuracy of ±2%V.
Wide compatibility: Compatible with frequencies ranging from 50 to 60HZ, this current meter is suitable for a variety of electrical systems.
Easy installation: Designed for convenience, it can be easily mounted on a DIN35MM standard guide rail to ensure a secure and stable installation.
Quick sampling rate: With a sampling rate of approximately 1 time per second, this meter provides real-time data to help you monitor electrical currents effectively.
Versatile Applications:The DIN rail current meter caters to a variety of application necessities and is predominantly used in industrial and mining enterprises, metallurgy, complete equipment, and various electrical control devices.
