| Brand | EPEPRO |
| Model Number | EPM1-630L 4P |
| Current rating | 630A |
| Rated operational voltage | 400/690V AC |
| Product dimensions | 10.5*7.3*13.5cm |
| Material | Copper,Silver Alloy Contact |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |

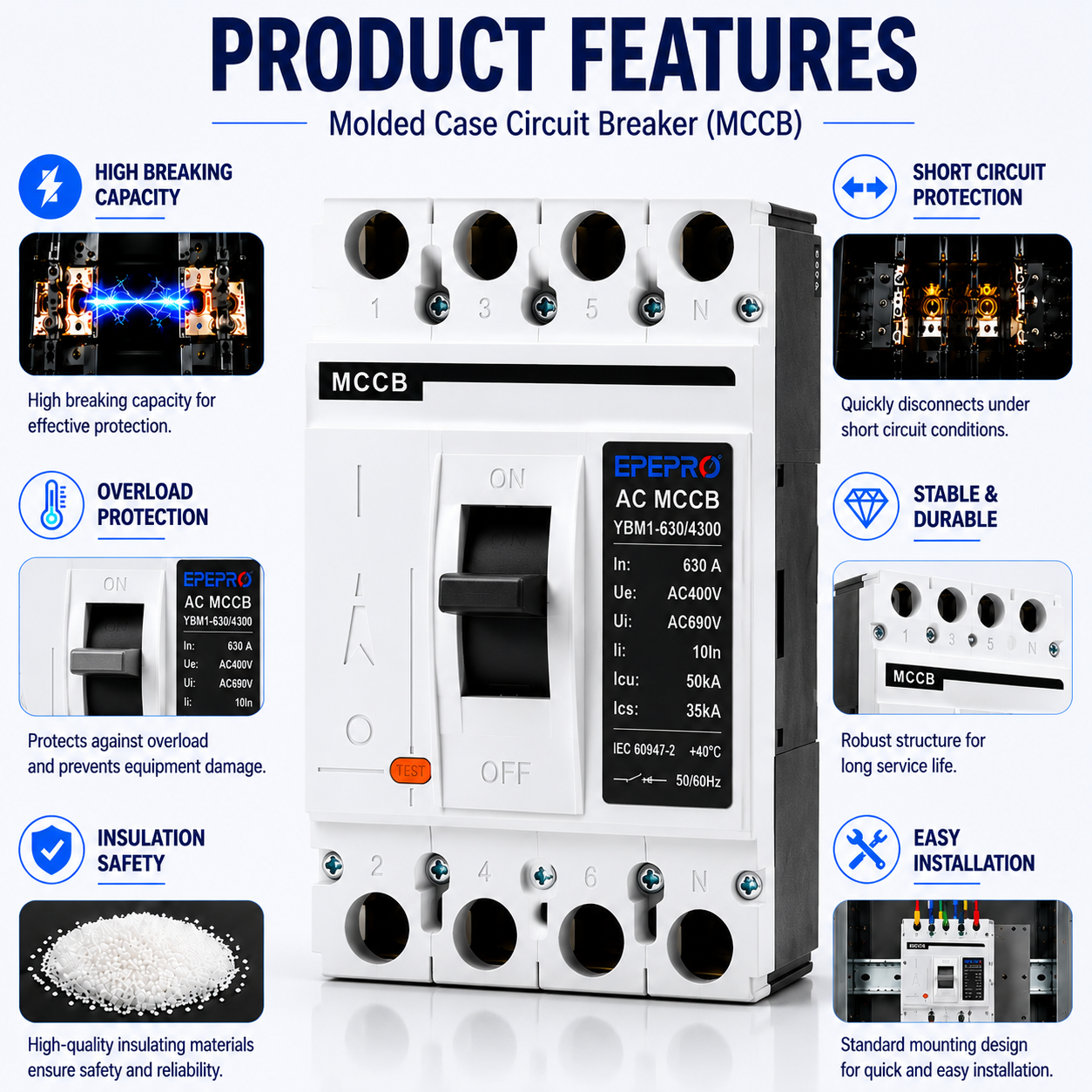

About this item
【Circuit Protection】:Protects AC circuits against overload and short circuit damage.
【C Curve】:Magnetic trip range: 5–10 times rated current.
【Durable Construction】:Copper conductor components ensure stable conductivity and long service life.

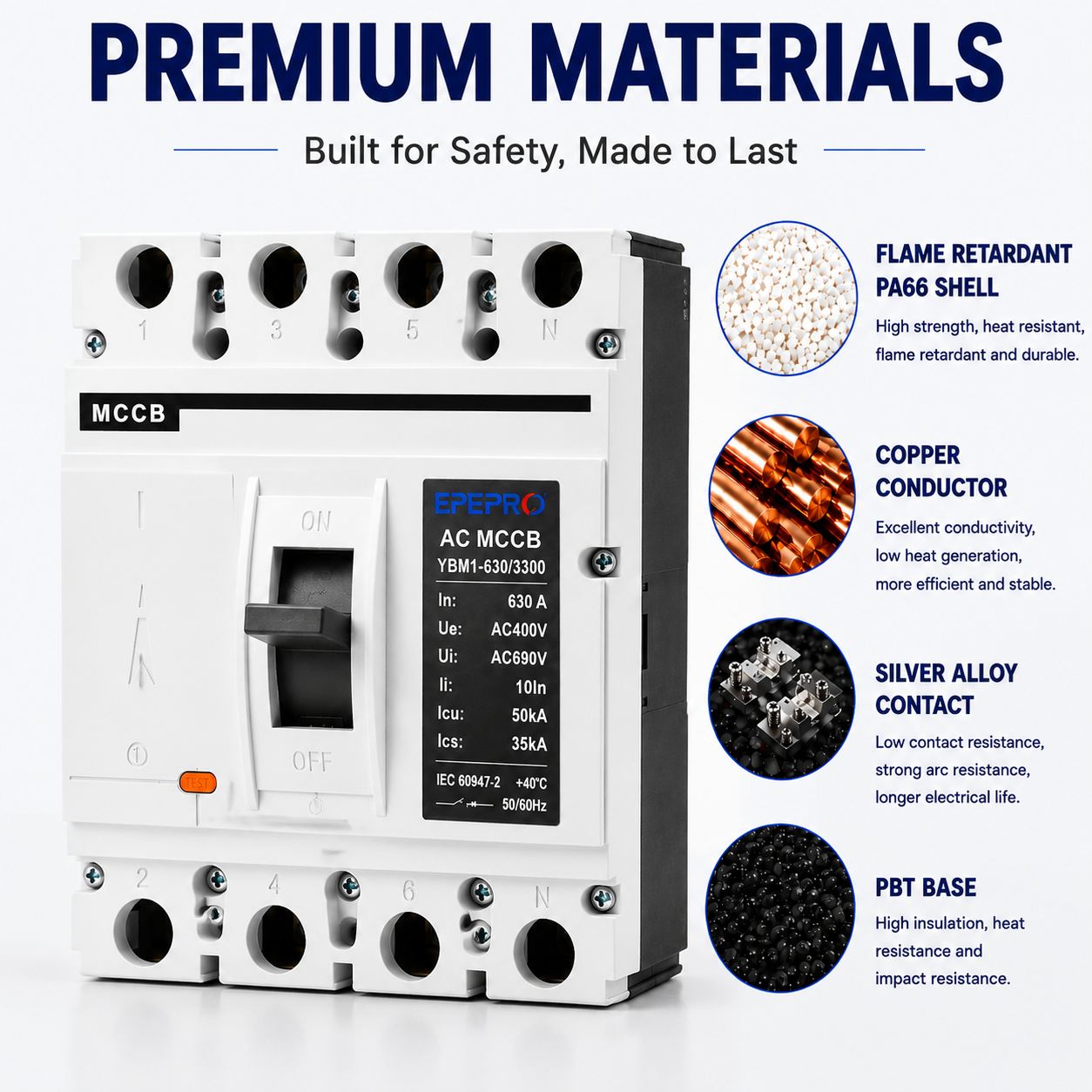

【Material Features】：High conductivity copper parts ；Strong arc resistance ；Heat resistant shell structure ；Durable and wear-resistant ；Stable electrical performance ；Long service life

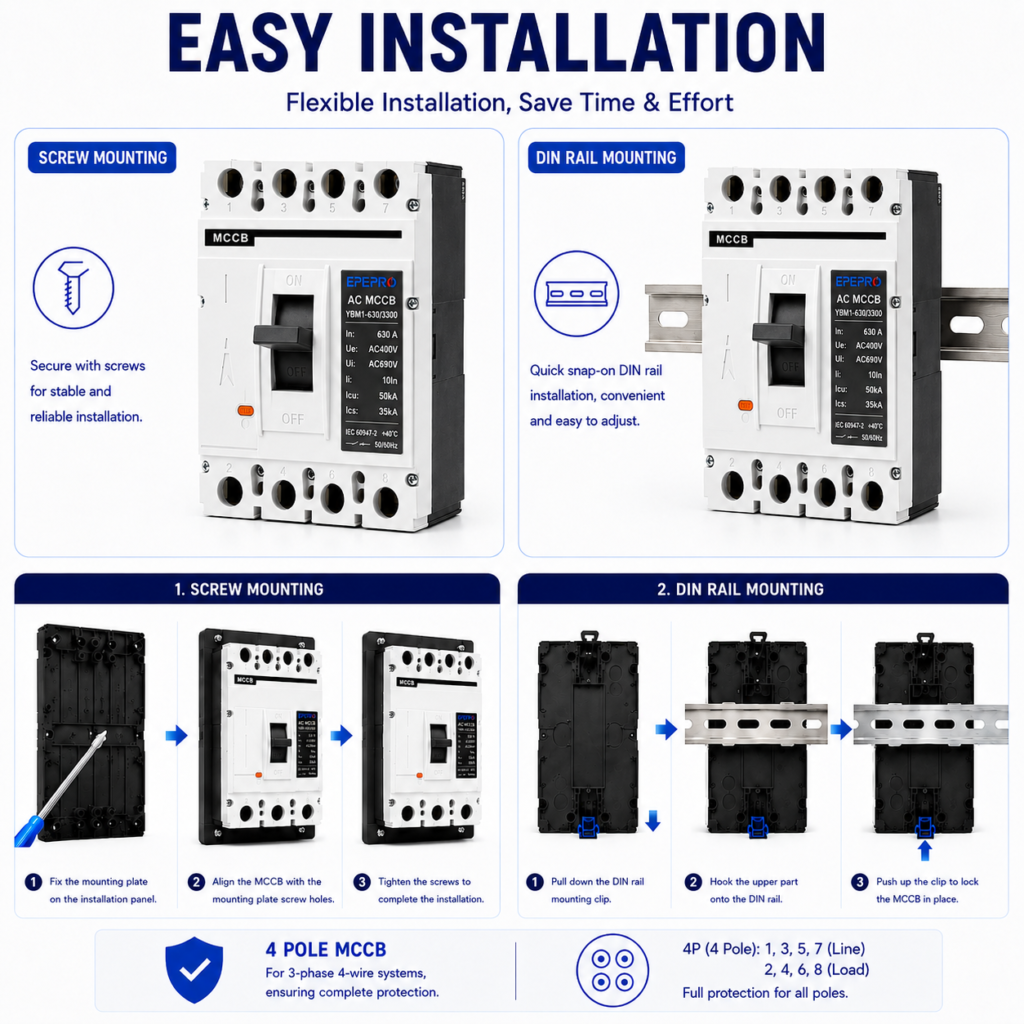

【Easy to Install】:Standard DIN rail mounting structure for quick installation.

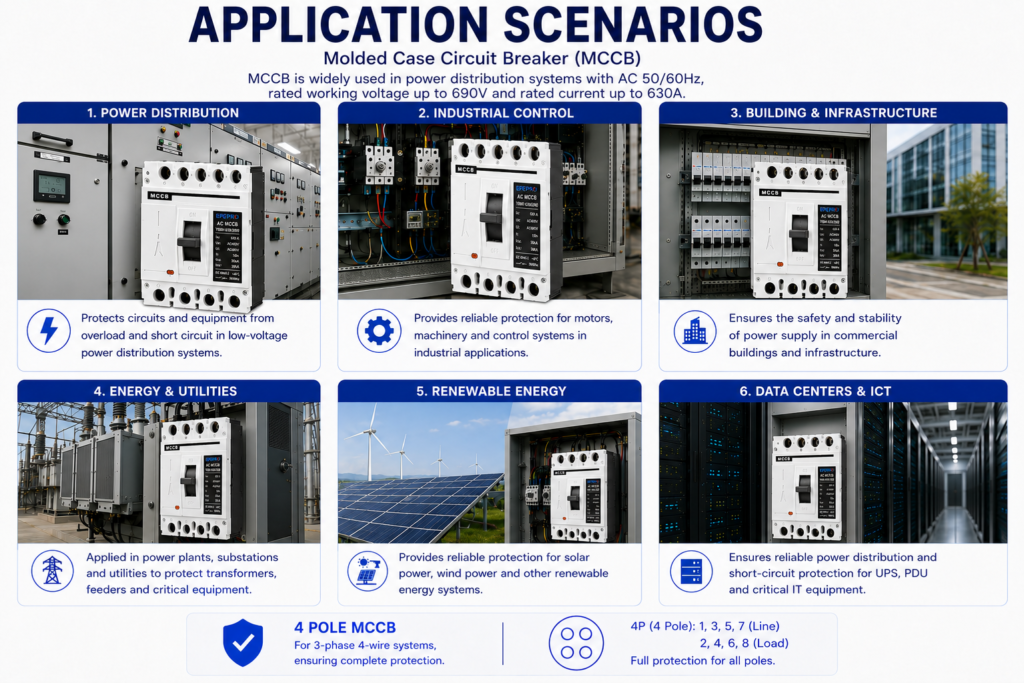

【Wide Application】:Perfect for solar systems, home circuits, RVs, and industrial AC systems.
Technical Data
| Product type | AC Molded Case Circuit Breaker |
| Pole number | 4P |
| Rated frequency | 50/60Hz |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Electrical durability | 4000 cycles |
| Mechanical durability | 10000cycles |
| Mounting support | 35mm DIN rail |
| operating temperature | -25℃ – +60℃ |
| Standard | IEC60898-1 |
