| Brand | EPEPRO |
| Model Number | DZ47-63A 2P |

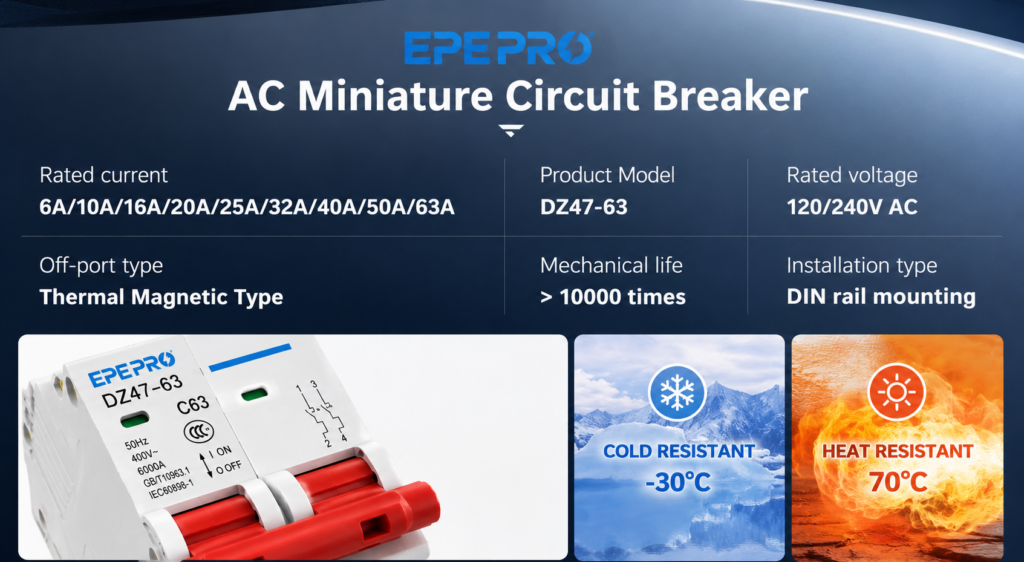

| Current rating | 6A / 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) |
| Rated operational voltage | 120V / 240V AC |

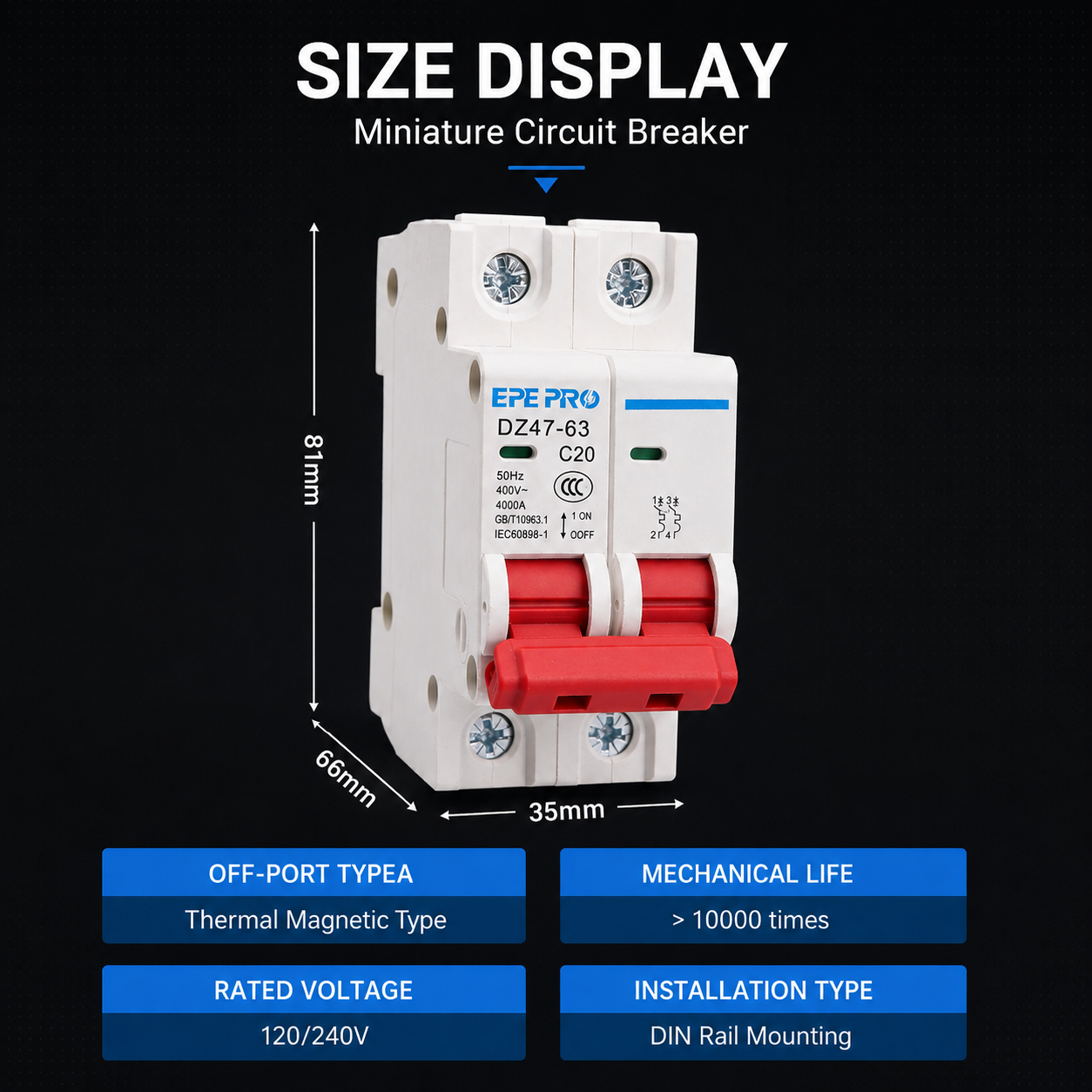

| Product dimensions | 3.6 × 7.4×8.2 cm |
| Material | Copper |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |
About this item
PRODUCT NAME: AC circuit breaker, Model: BKS-63-2P, Rated voltage: 120V/240V AC, Number of poles: 2pole, Rated current: 63A

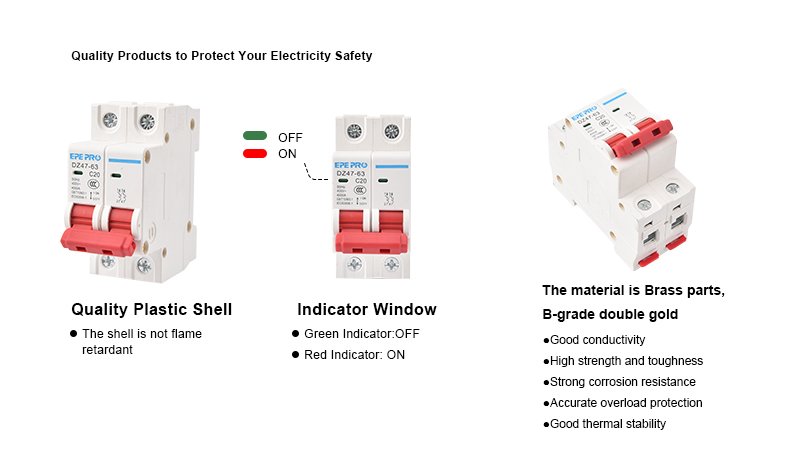

Quality:Brass parts. Non-flame retardant shell base, B-grade double gold
SAFETY：When the circuit is short-circuited can immediately trip, to protect the safety of the circuit, can be easily installed on the DIN rail.
WIDELY USED ：Suitable for protecting AC circuits against overload and short-circuit damage, ideal for AC power systems, residential buildings, RVs, offices, and solar photovoltaic systems.
AFTER-SALES SERVICE：feel free to contact us with any questions, we have a professional team to provide you with help services
Technical Data
| Product type | AC miniature circuit breaker |
| Pole number | 2P |
| Rated frequency | 50/60Hz |

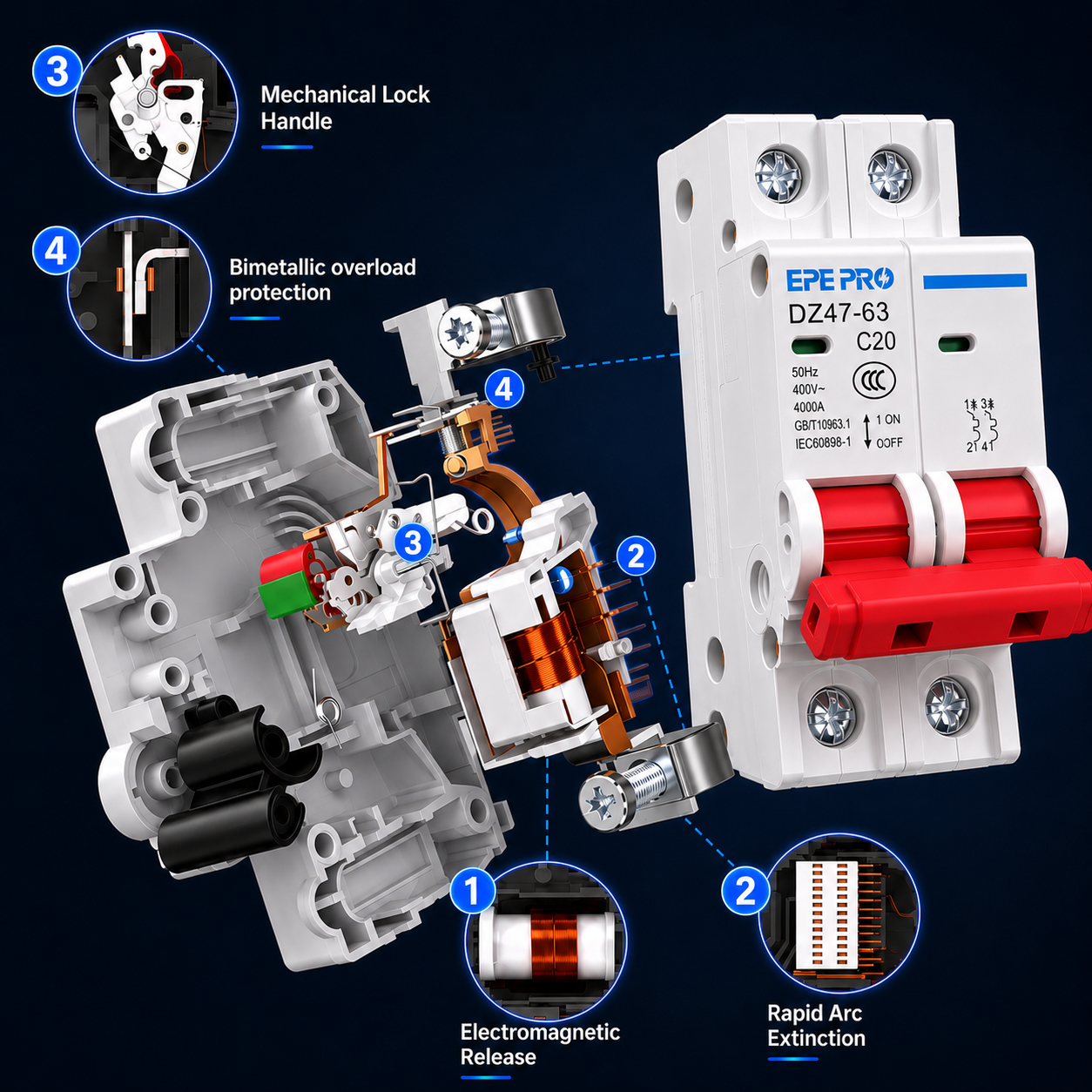

| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Electrical durability | 4000 cycles |
| Mechanical durability | 10000cycles |
| Mounting support | 35mm DIN rail |
| operating temperature | -25℃ – +60℃ |
| Standard | IEC60898-1 |
