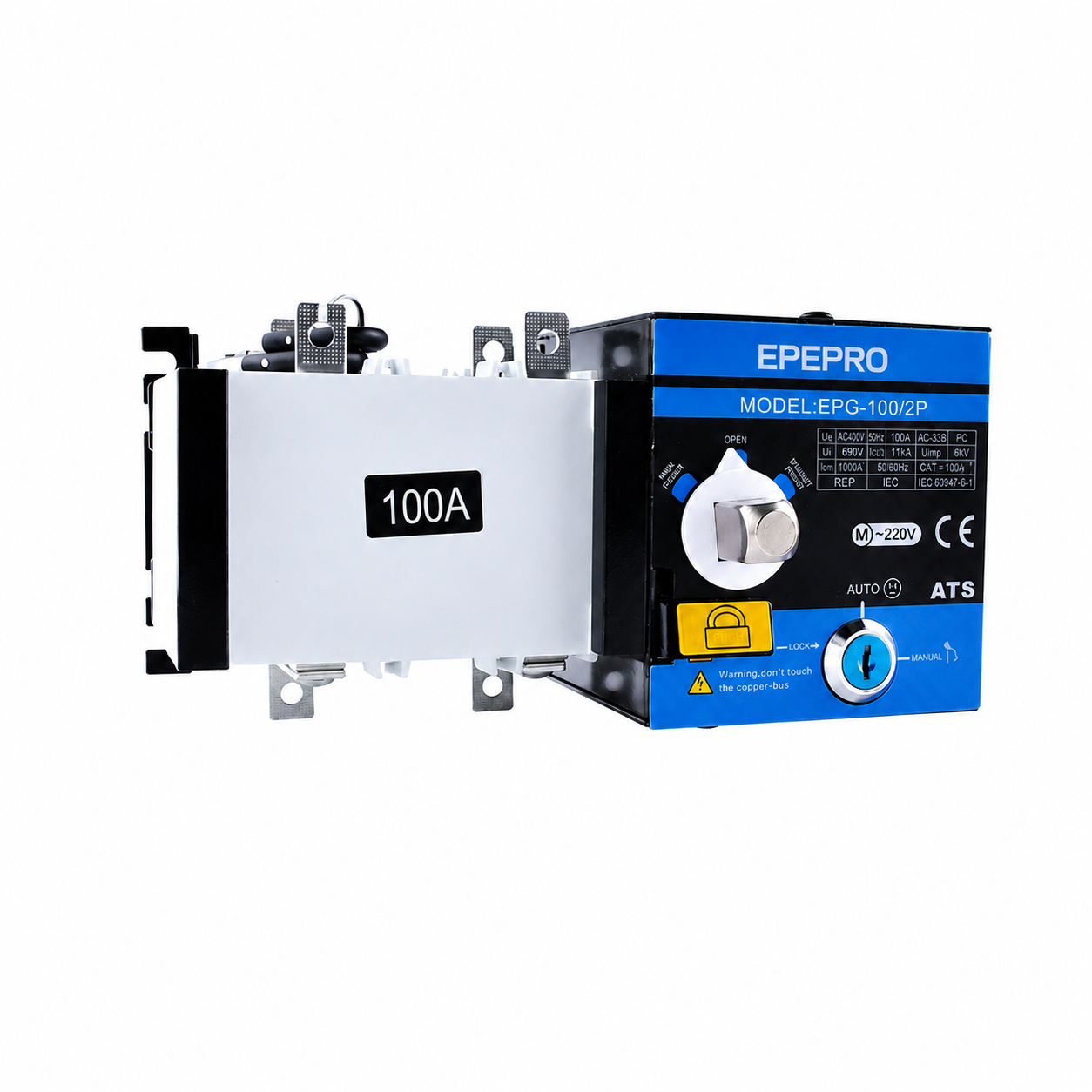

| Brand | EPEPRO |
| Model Number | EPG-S1 2P 100A |
| Rated Operational Voltage (Ue) | AC 400V |
| Control Power Supply Voltage | DC24V, DC48V, AC110V, AC220V |
| Transfer Time | 0.5s ~ 2.45s |
| Installation Method | Fixed Installation |
| Making Capacity (Arms) | 10Ie |
| Breaking Capacity (Arms) | 8Ie |
| Rated Impulse Withstand Voltage (Uimp) | 5kV |
| Standard | GB/T 14048.11 / IEC 60947-6-1 |
The EHG Series Automatic Transfer Switch is mainly used in AC 50/60Hz power distribution systems with rated voltage AC 400V , and rated current from 100A to 3200A.

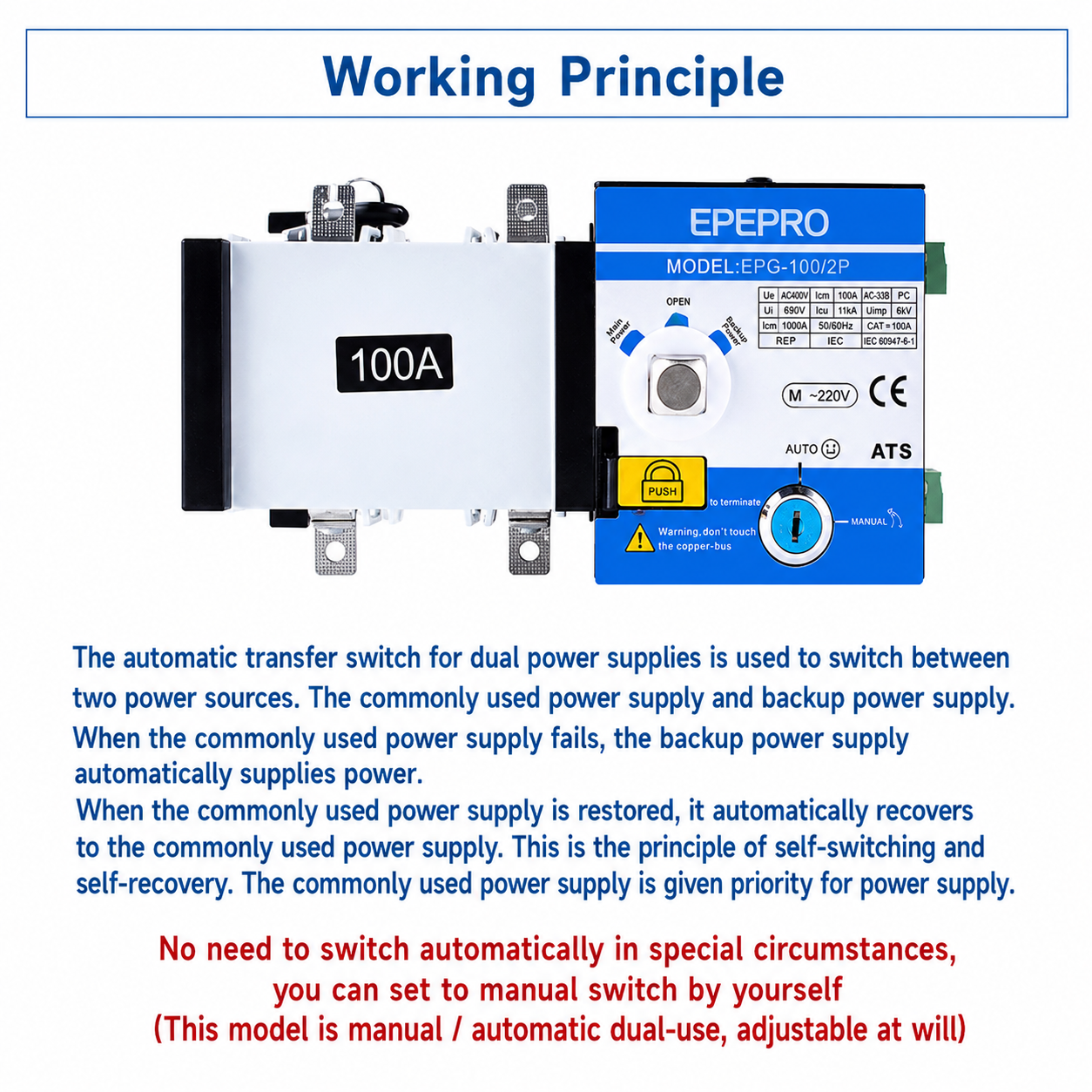

It is designed for switching between main power and standby power sources, or for load transfer between utility power and generator sets. It can also be used for infrequent connection/disconnection and isolation of circuits.
Widely used in fire protection systems, hospitals, banks, high-rise buildings, and other critical power supply applications where uninterrupted power is required
