| Attribute | Specification |
| Brand Name | EPEPRO |

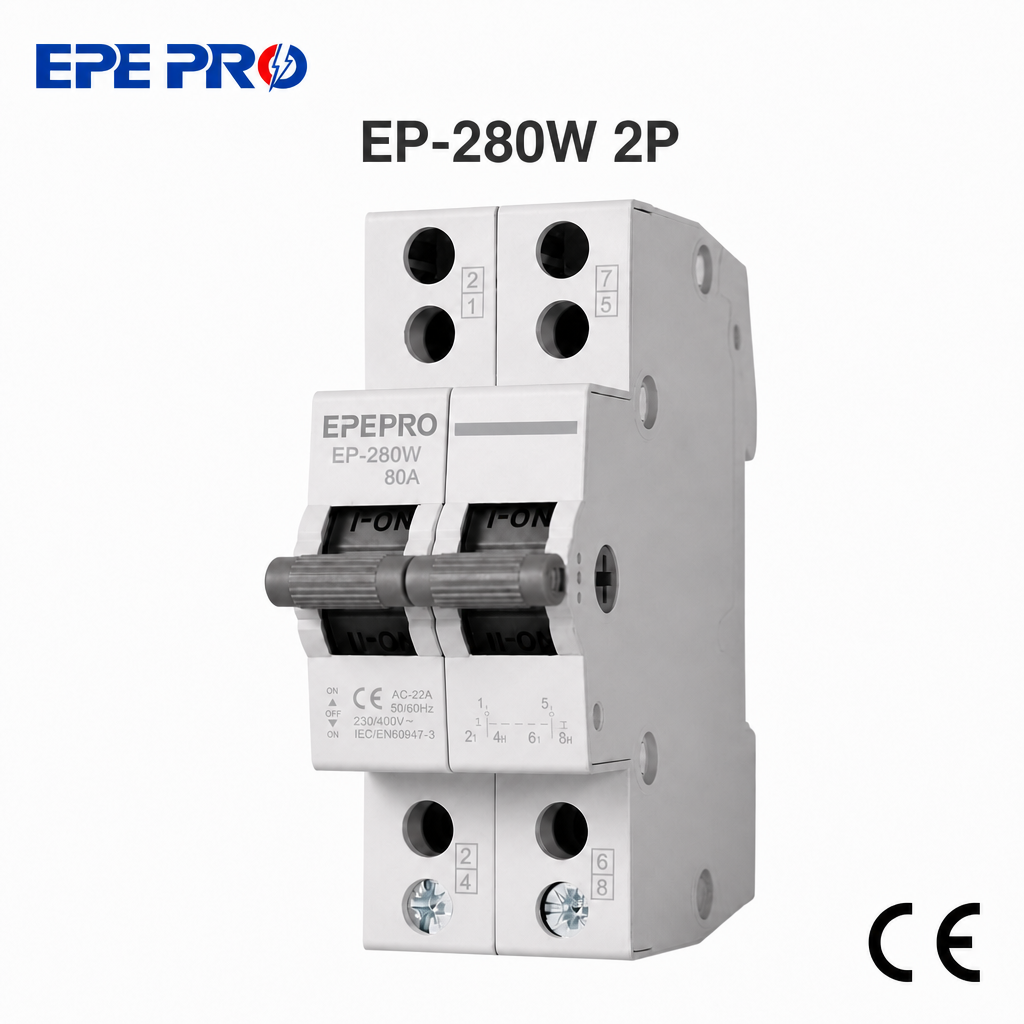

| Model Number | EP-280W (2P) |
| Poles Number | 2 Pole (2P) |
| Rated Current (Ie) | 25A, 32A, 40A, 50A, 63A, 80A |
| Rated Voltage (Ue) | AC 230V / 400V |
| Rated Frequency | 50Hz / 60Hz |
| Insulation Voltage (Ui) | 500V |
| Utilization Category | AC-22A |
| Mechanical Life | ≥≥ 8,500 times |
| Protection Grade | IP20 |
| Standard | IEC60947-3 |
| Installation | 35mm DIN Rail Mount |
| Operation Temp | -5°C to +40°C |

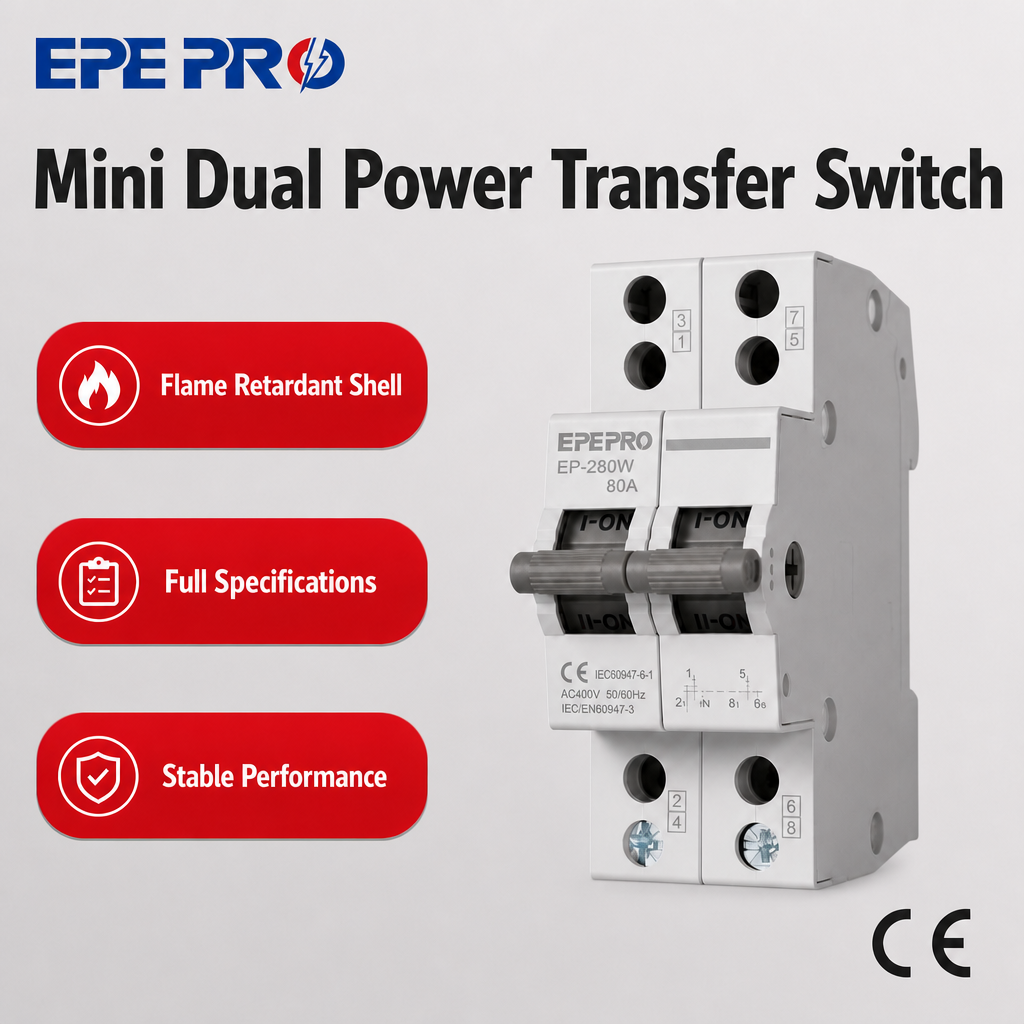

The EPEPRO EP-280W Series is a high-performance Mini Dual Power Manual Transfer Switch (MTS), specifically designed for AC 50Hz/60Hz circuits with rated voltages up to 400V. It provides reliable non-automatic transfer and isolation for household and industrial low-voltage power systems.
Key Features:

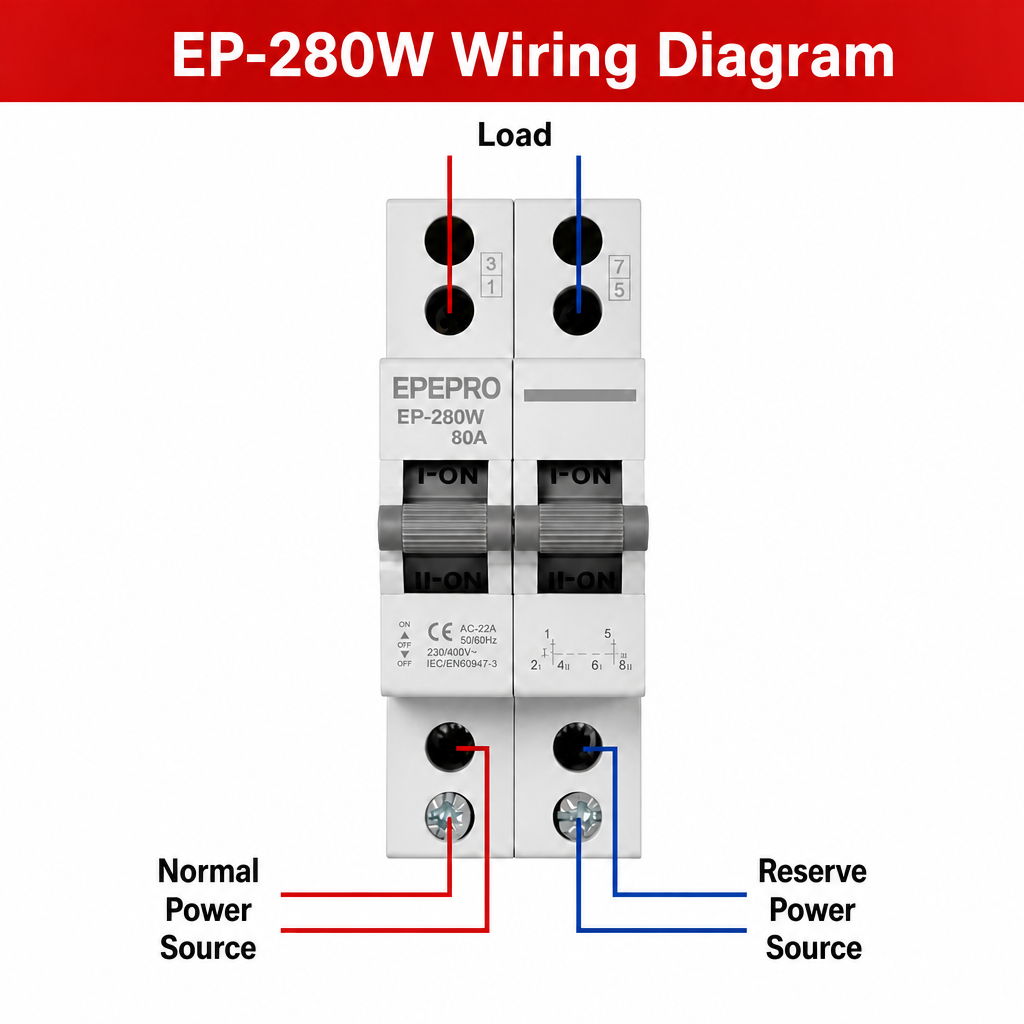

Dual Power Safety: Perfect for switching between main power and backup power (generator/solar) to ensure continuous power supply.
Flame Retardant Housing: Constructed with high-quality flame-retardant materials for superior fire protection and durability.

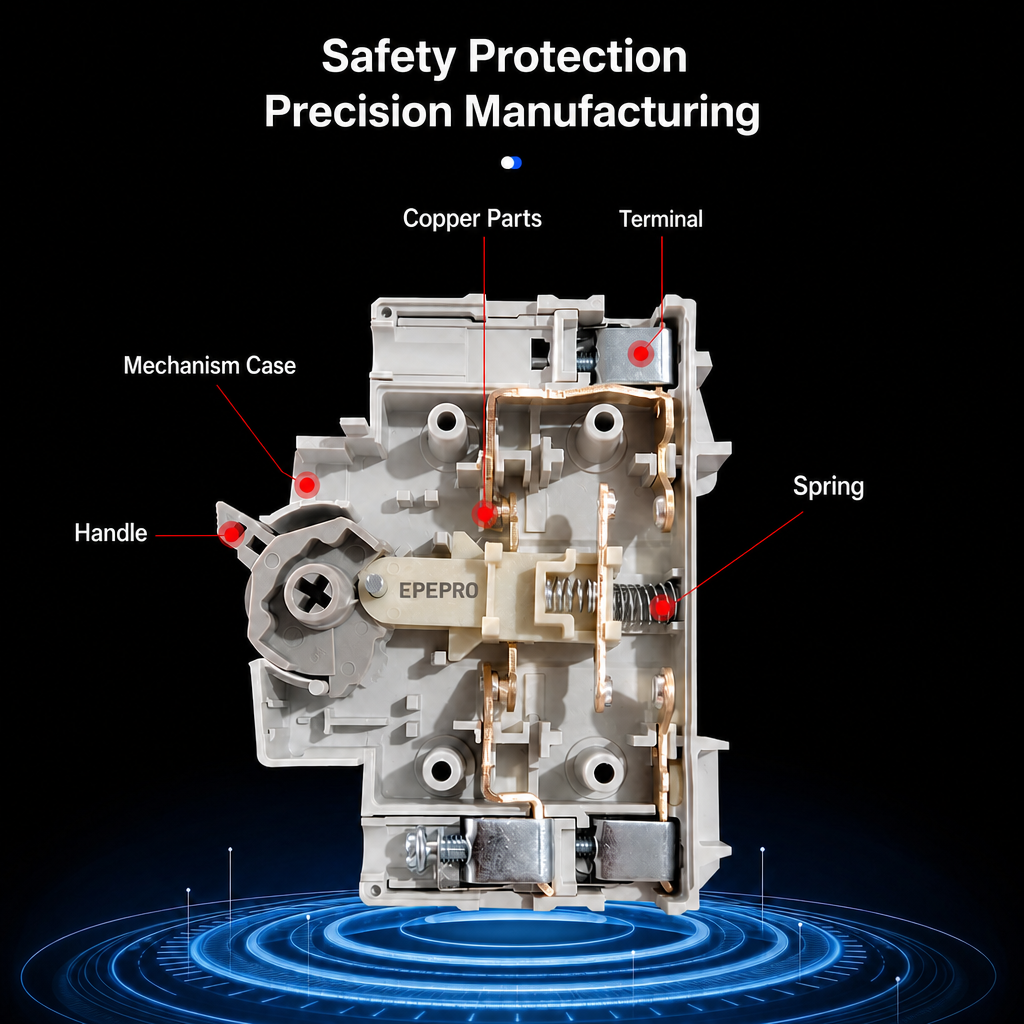

Precision Manufacturing: Features high-purity copper components and a robust mechanical structure, achieving a lifespan of over 8,500 cycles.
Standardized Installation: Fully compatible with 35mm DIN rail systems, making it easy to integrate into existing distribution boxes.
International Compliance: Certified to IEC60947-3 standards, ensuring global quality and safety requirements for overseas B2B markets.
