| Item | Specification |
| Brand | EPEPRO |
| Model | EPM3-100E/2P |
| Product Type | Automatic Transfer Switch (ATS) |
| Poles | 2P |
| Rated Current | 100A |
| Rated Voltage | AC220V |
| Frequency | 50/60Hz |
| Transfer Mode | Automatic Transfer |
| Manual Operation | Yes |
| Control Voltage | AC220V |
| Switching Time | ≤2s |
| Mounting Type | DIN Rail Mount |
| Housing Material | Flame Retardant PA |
| Mechanical Life | 10,000+ Operations |
| Electrical Life | 6,000+ Operations |
| Application | Main Power & Generator Switching |
| Protection Class | PC Class |
| Operating Temperature | -5°C ~ +40°C |
| Relative Humidity | ≤95% RH |
| Installation Environment | Indoor Electrical Distribution Systems |

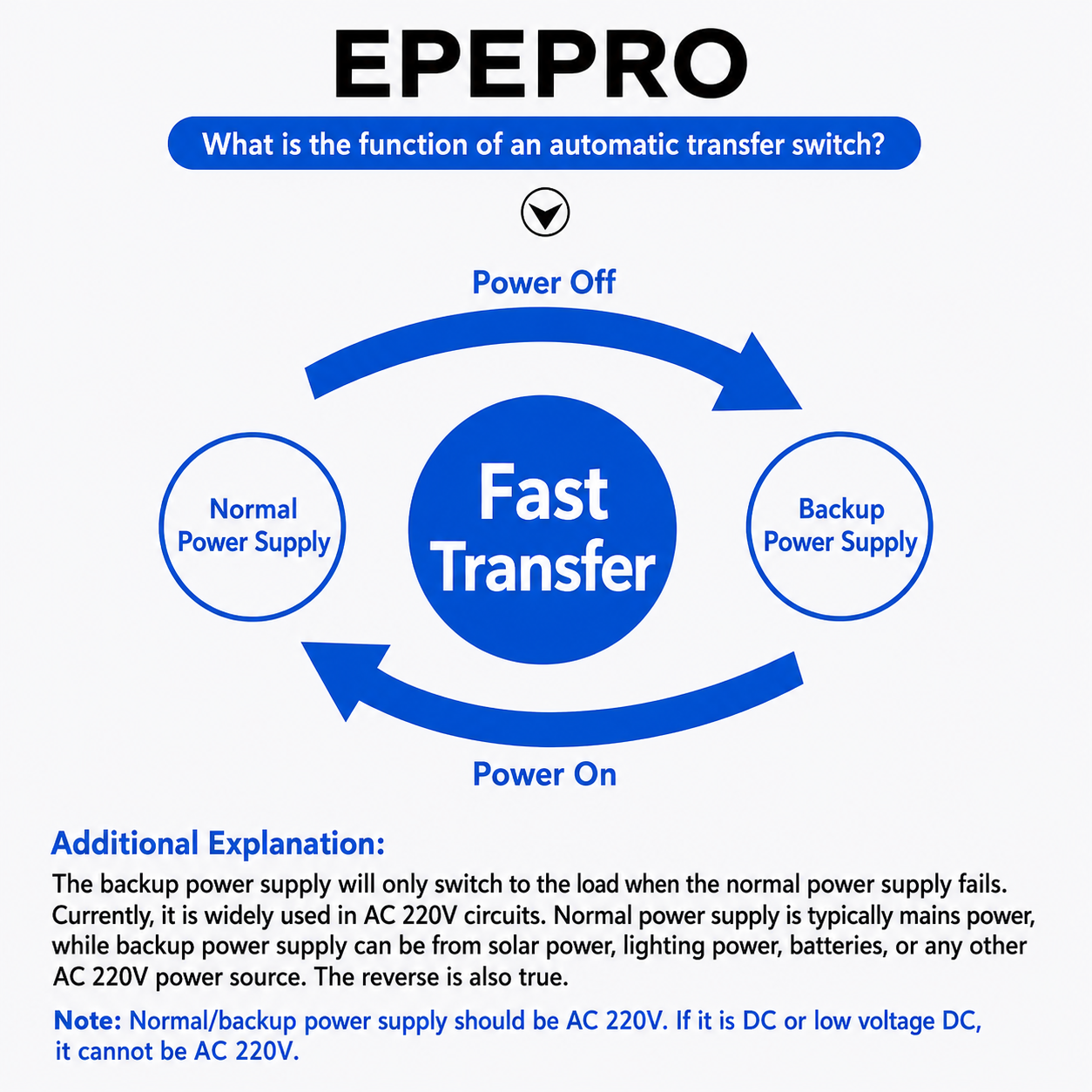

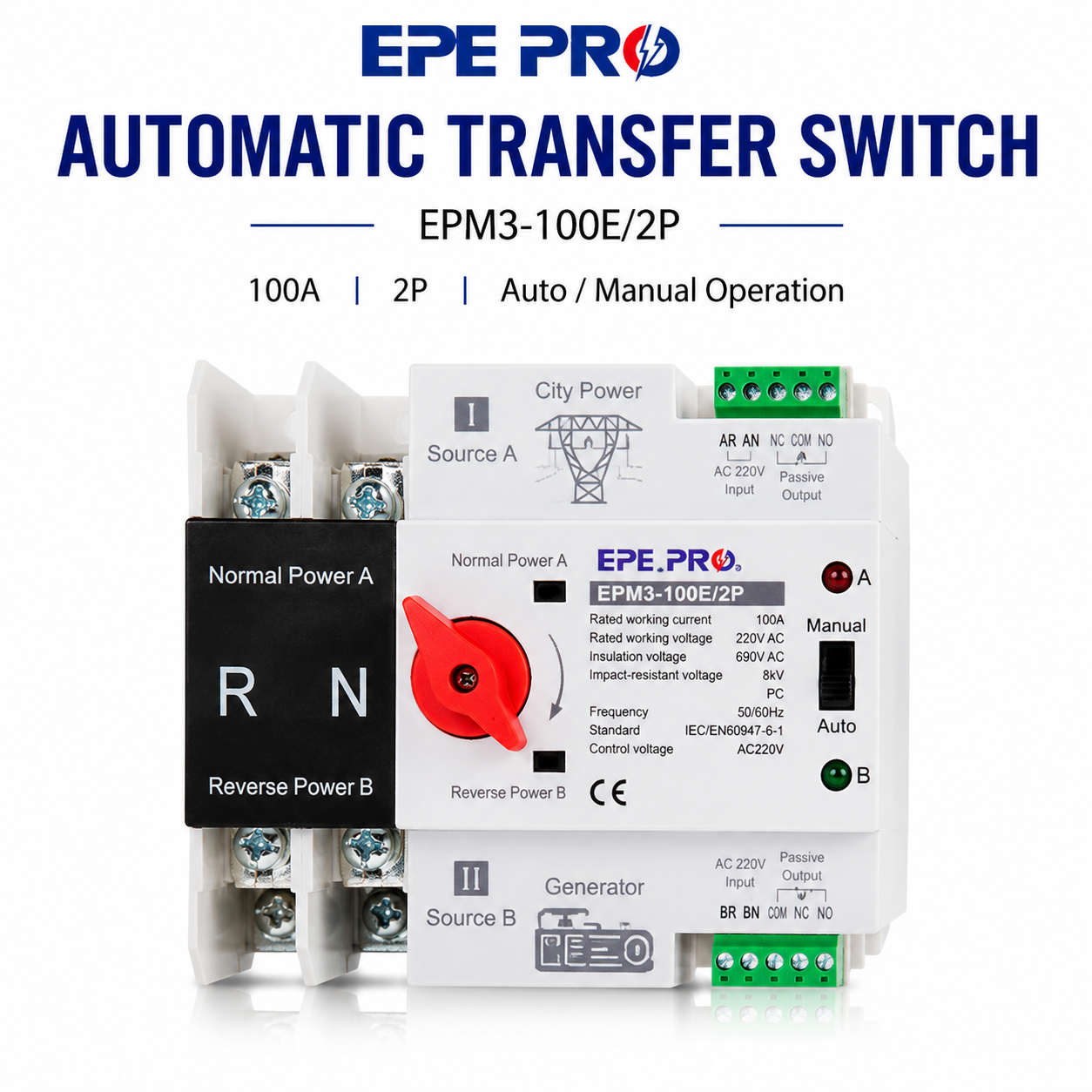

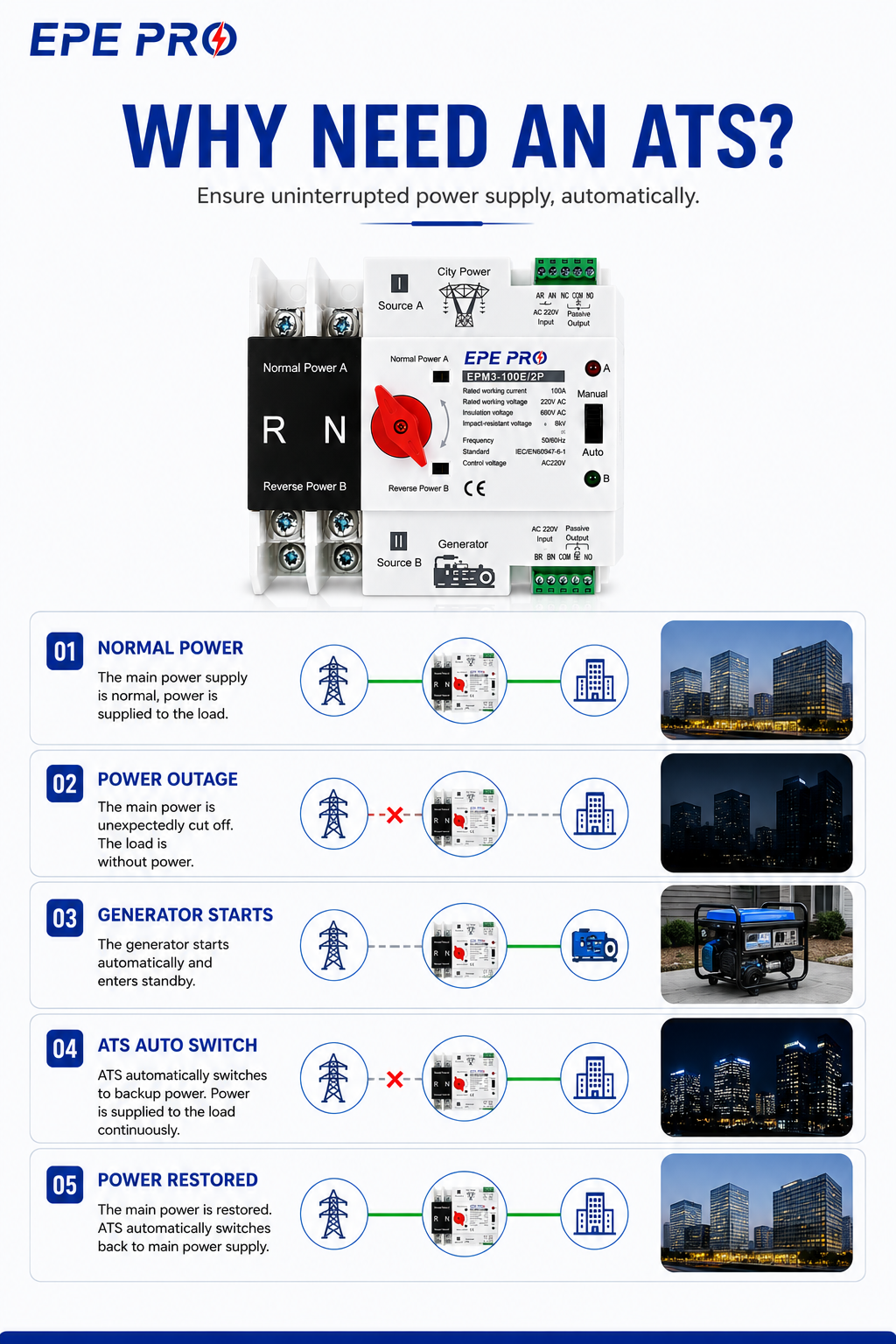

The EPEPRO EPM3-100E/2P Automatic Transfer Switch is designed to provide reliable and uninterrupted power transfer between the main power source and backup generator. When the utility power fails, the ATS automatically switches the load to the backup power source, ensuring continuous operation of critical electrical equipment.

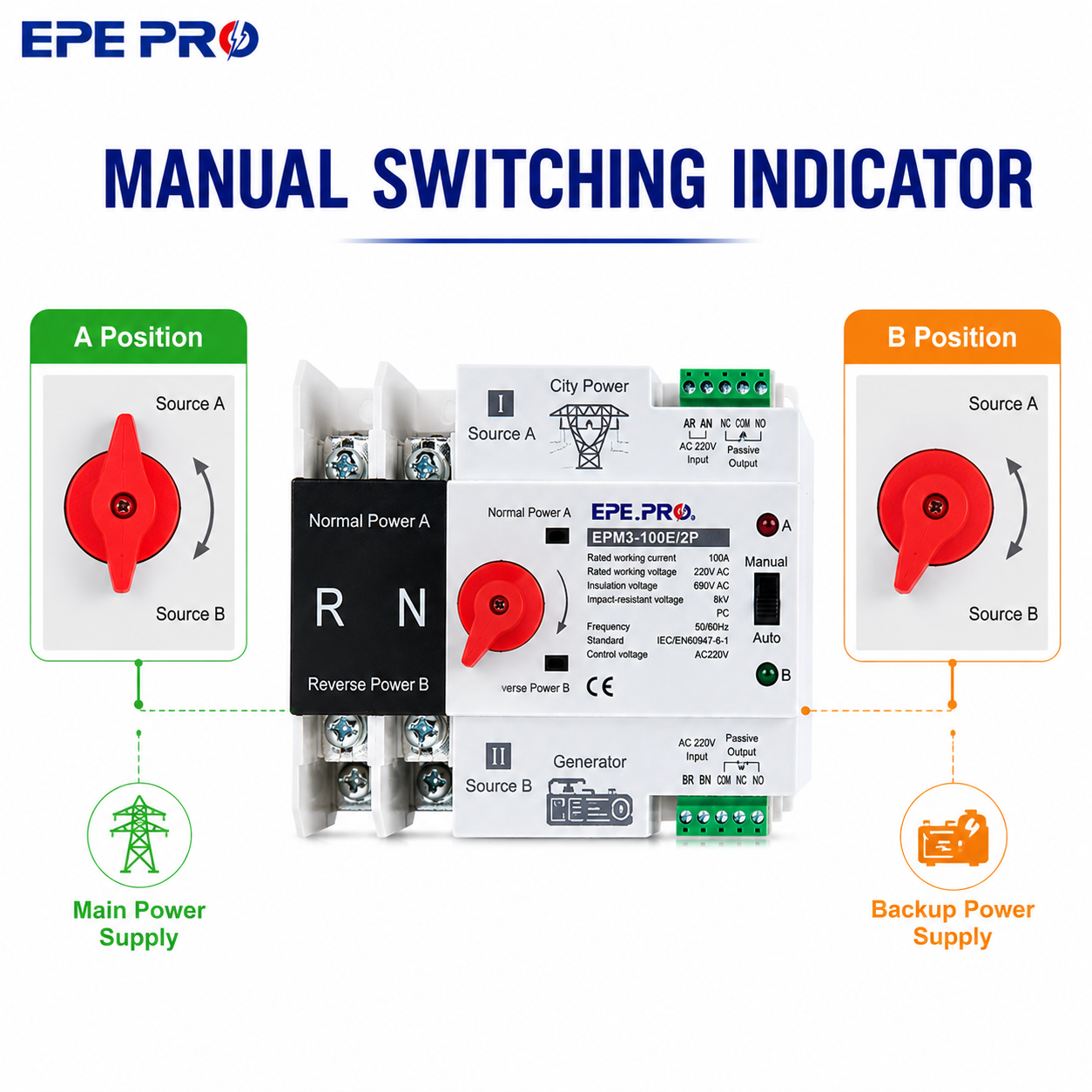

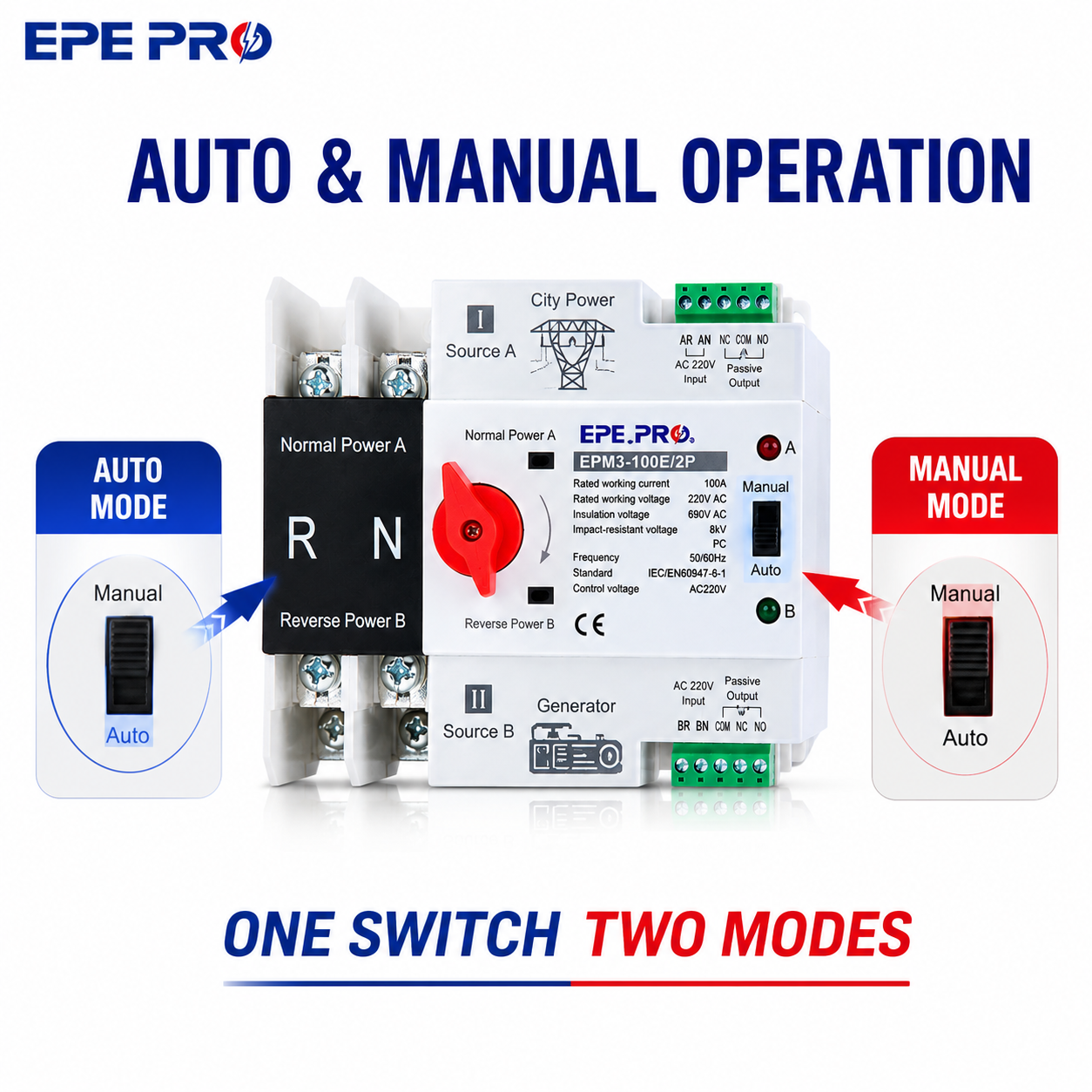

Built with a flame-retardant housing and high-quality copper contacts, the EPM3 Series offers stable performance, long service life, and safe operation. The integrated Auto/Manual mode allows users to switch power sources automatically or manually according to application requirements.
