| Brand | EPEPRO |
| Model | EPNP-100N |
| Product Name | 3 Phase Adjustable Voltage Current Protector |
| Product Type | Three Phase Over & Under Voltage Current Protector |
| Working Voltage Range | AC80-400V |
| Rated Current | 100A |
| Optional Current | 40A / 63A / 80A / 100A |
| Frequency | 50/60Hz |
| Display Type | Digital Display |
| Phase Type | Three Phase |

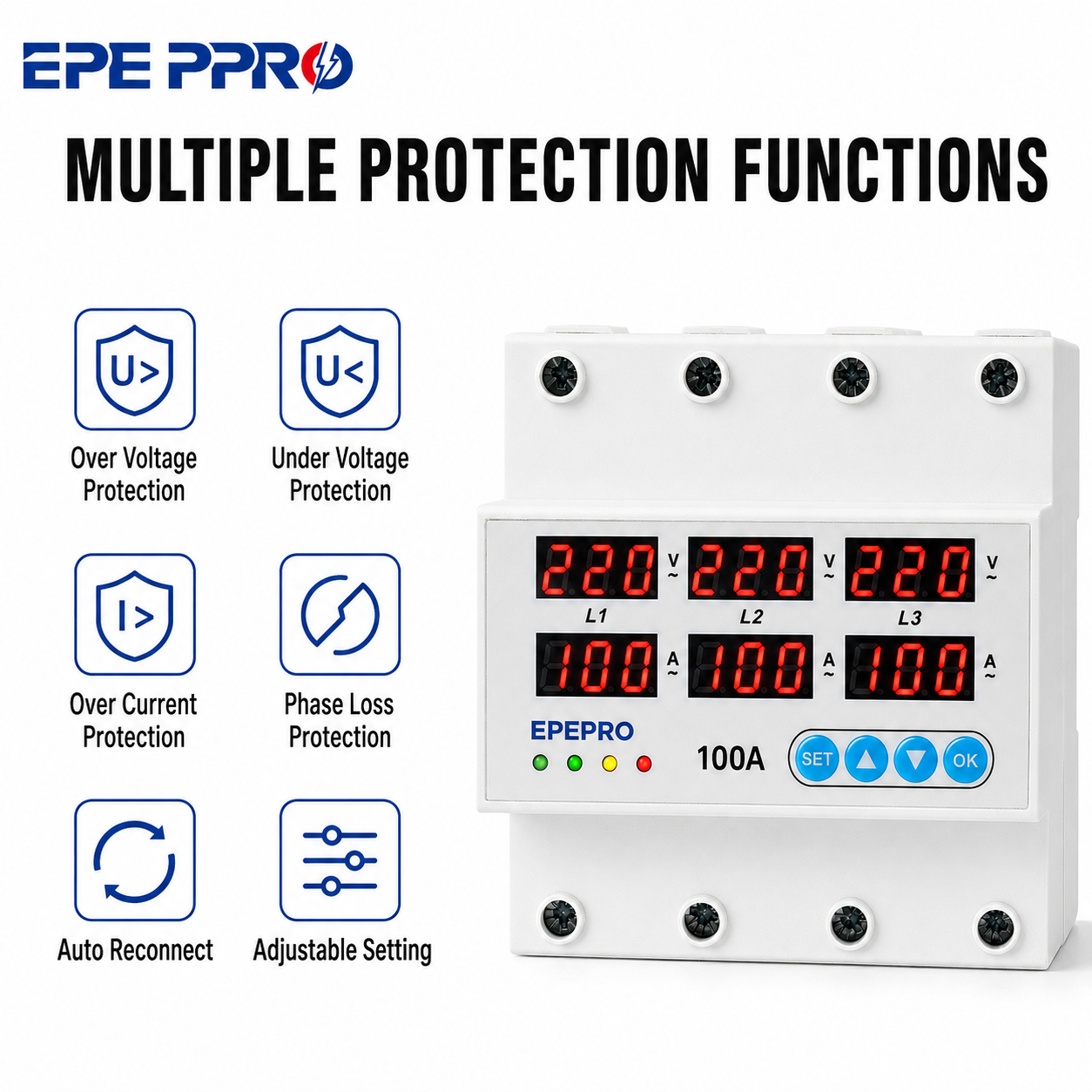

| Protection Functions | Over Voltage Protection / Under Voltage Protection / Over Current Protection |
| Monitoring Function | L1 / L2 / L3 Voltage & Current Monitoring |
| Setting Type | Adjustable Voltage, Current and Delay Time |
| Reset Mode | Auto Reconnect / Auto Reset |
| Installation | DIN Rail Mount |
| Application | Distribution Cabinet / Industrial Equipment / Motor Protection / Building Power System |
| Housing Material | Flame Retardant Plastic |
| Button Type | SET / UP / DOWN / OK |
| Warranty | 1 Year |
| OEM & ODM | Custom Logo / Custom Label / Custom Model Number / Custom Packaging |
Product Description:
EPEPRO EPNP-100N 3 Phase Adjustable Voltage Current Protector is designed for three-phase electrical systems. It can monitor L1, L2 and L3 voltage and current in real time, helping protect electrical circuits and equipment from abnormal voltage and over current conditions.
The protector supports over voltage protection, under voltage protection and over current protection. When abnormal voltage or current is detected, the device can automatically disconnect the circuit to protect connected equipment. After the electrical value returns to normal, it can automatically reconnect according to the preset delay time.
With clear digital display, adjustable protection settings and DIN rail installation, the EPNP-100N is suitable for industrial equipment, motor systems, distribution cabinets, building power systems and other three-phase power applications. EPEPRO also supports OEM and ODM service, including custom logo, product label, model number and packaging.
