| Item | Specification |
| Brand | EPEPRO |
| Model | EPVA-002 |
| Product Name | Voltage Current Protector |
| Function | Over Voltage, Under Voltage, Over Current Protection |
| Pole Number | 2P |
| Width | 36mm |
| Rated Voltage | AC 100V-450V |
| Rated Current | 1-40A / 1-63A / 1-80A |
| Default Current | 40A / 63A |

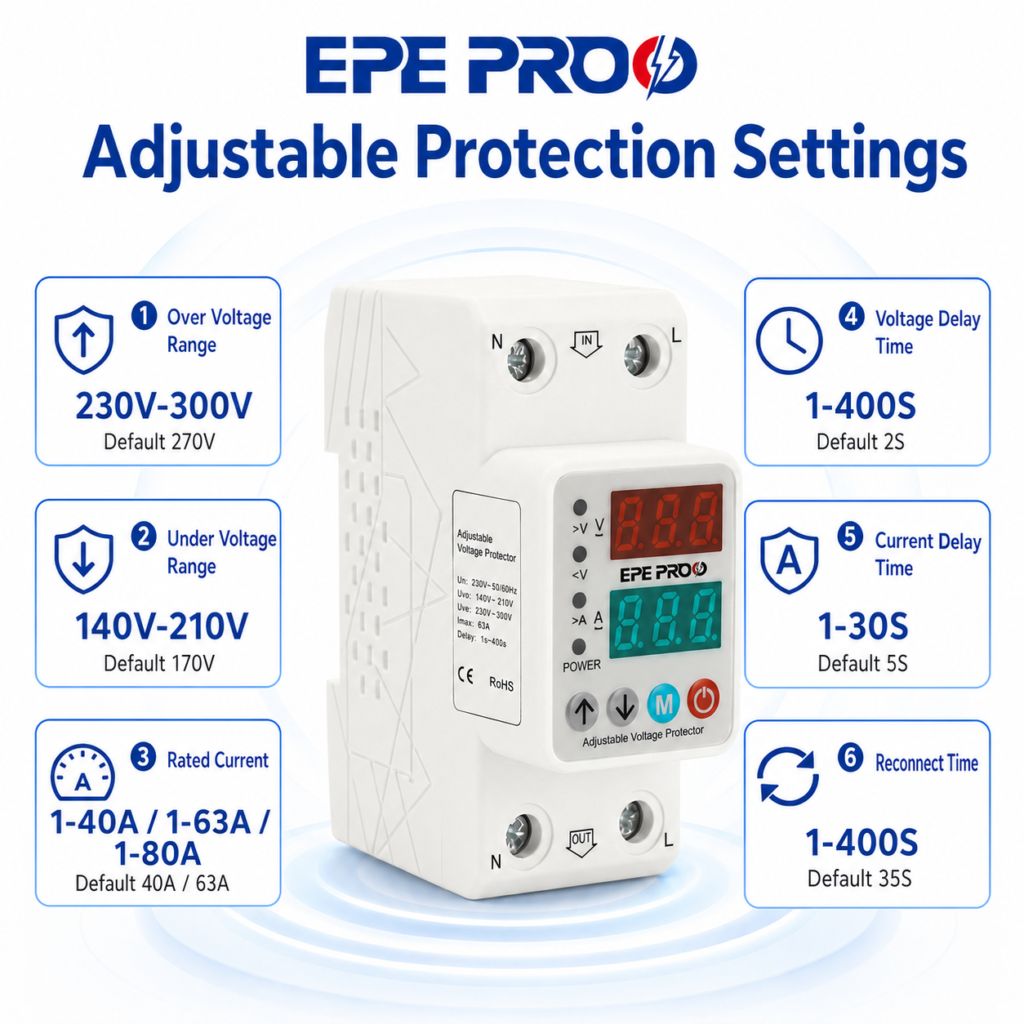

| Over Voltage Range | 230V-300V |
| Default Over Voltage | 270V |
| Under Voltage Range | 140V-210V |
| Default Under Voltage | 170V |
| Voltage Delay Time | 1-400s |
| Default Voltage Delay Time | 2s |
| Current Delay Time | 1-30s |
| Default Current Delay Time | 5s |
| Reconnect Time | 1-400s |
| Default Reconnect Time | 35s |
| Display | LED Digital Display |
| Installation | DIN Rail Mounting |
| Product Size | 35 × 50 × 85mm |

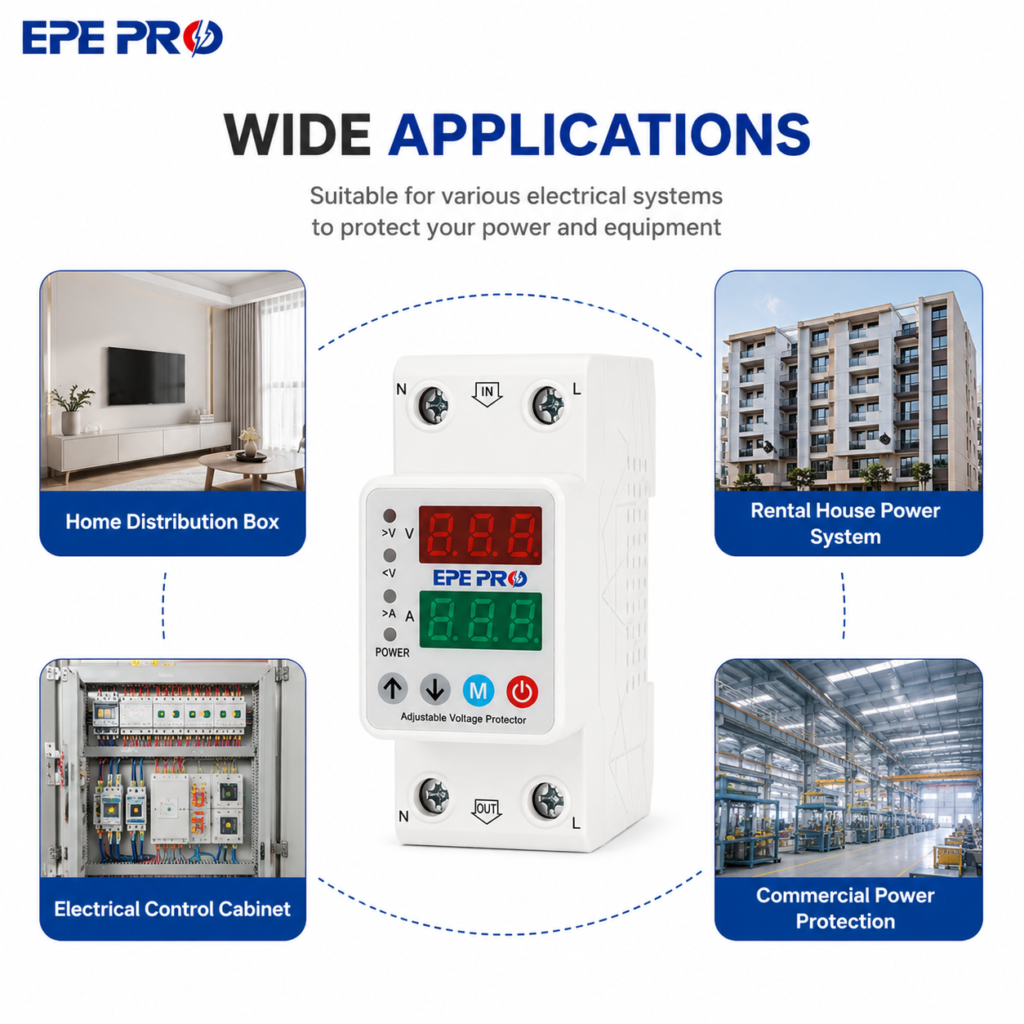

| Application | Home Distribution Box, Electrical Cabinet, Commercial Power System |
| OEM / ODM | Available |
Product Description:

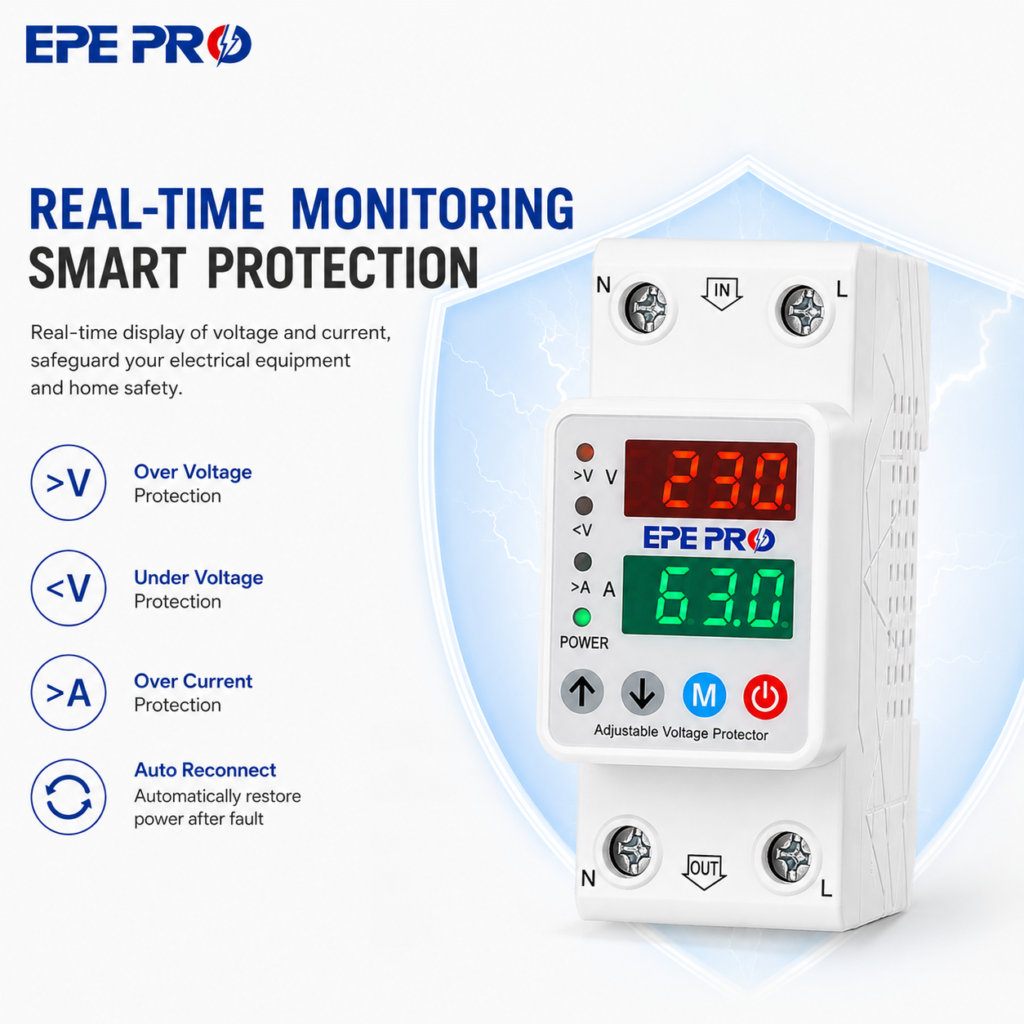

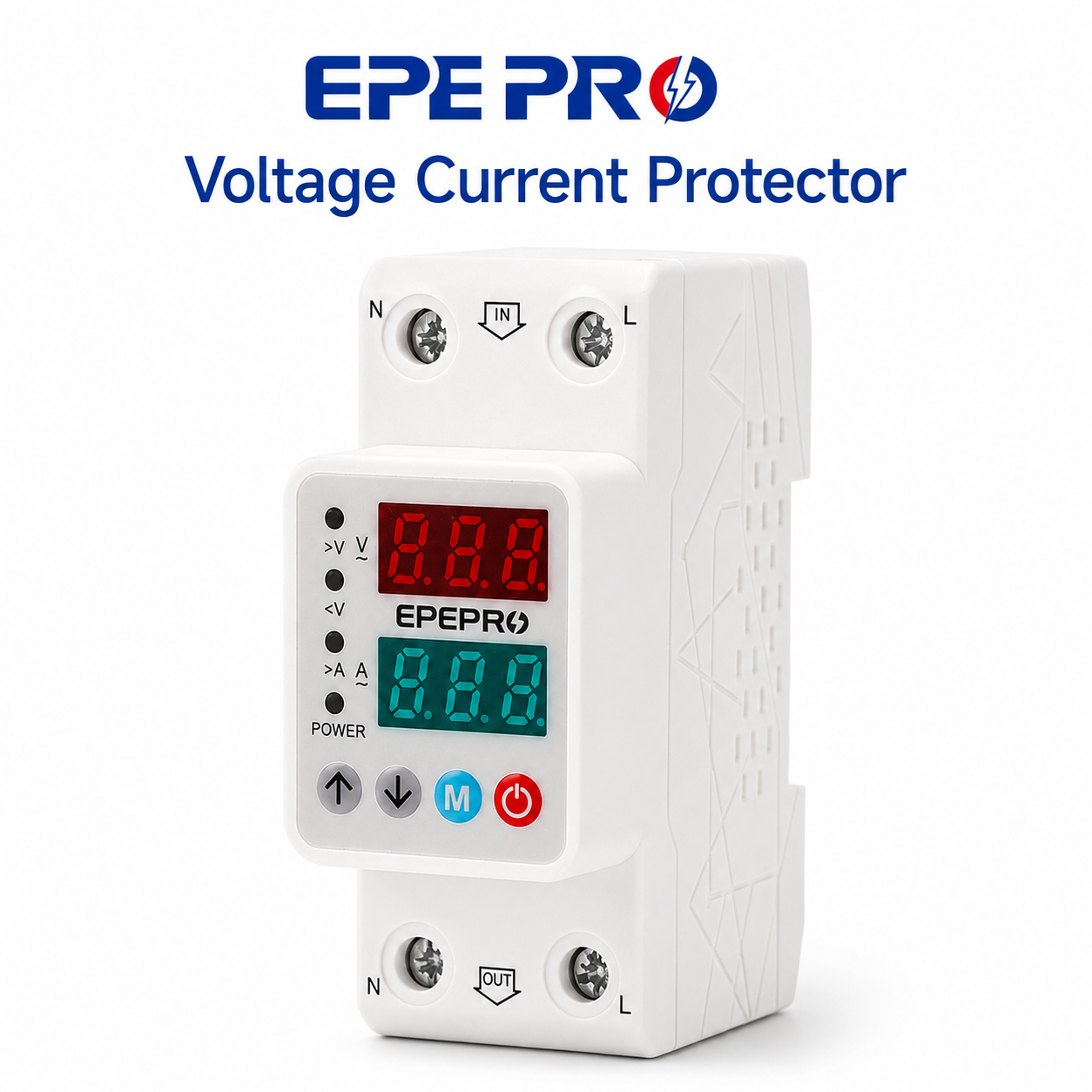

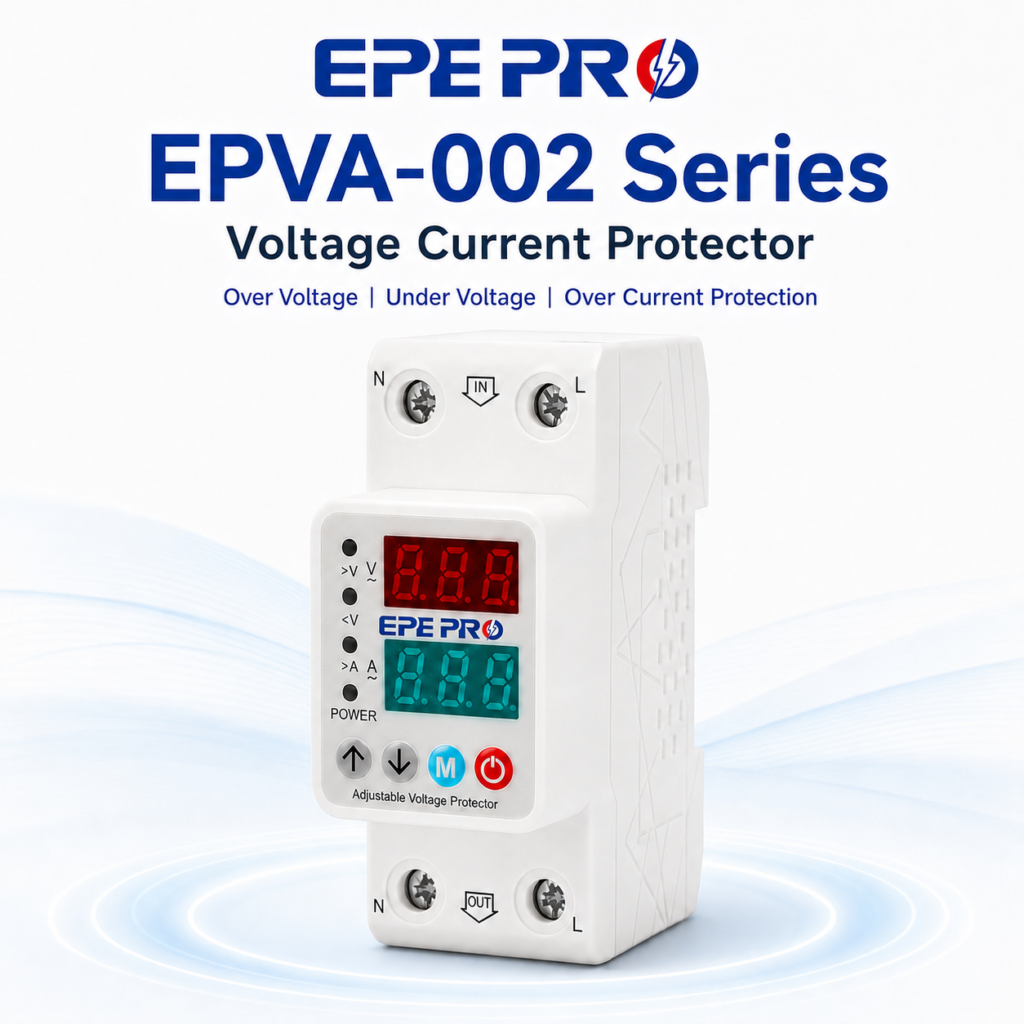

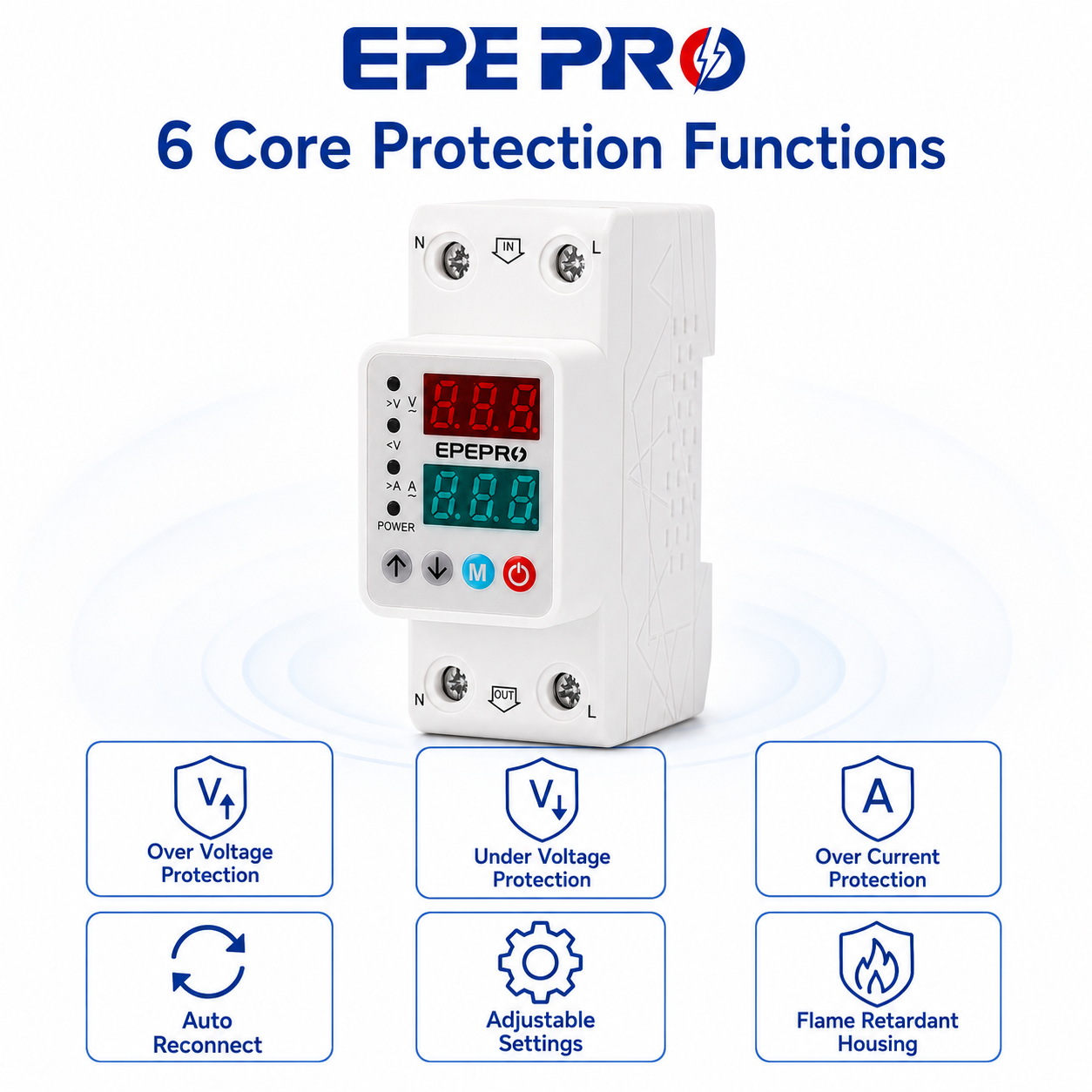

EPEPRO EPVA-002 Voltage Current Protector is designed for electrical circuit protection in home distribution boxes, commercial power systems and electrical control cabinets. It can monitor voltage and current in real time and provide over voltage protection, under voltage protection and over current protection.
When abnormal voltage or over current is detected, the protector will automatically cut off the power supply to help protect electrical equipment and wiring systems. After the voltage returns to normal, the device can automatically reconnect after the set delay time.

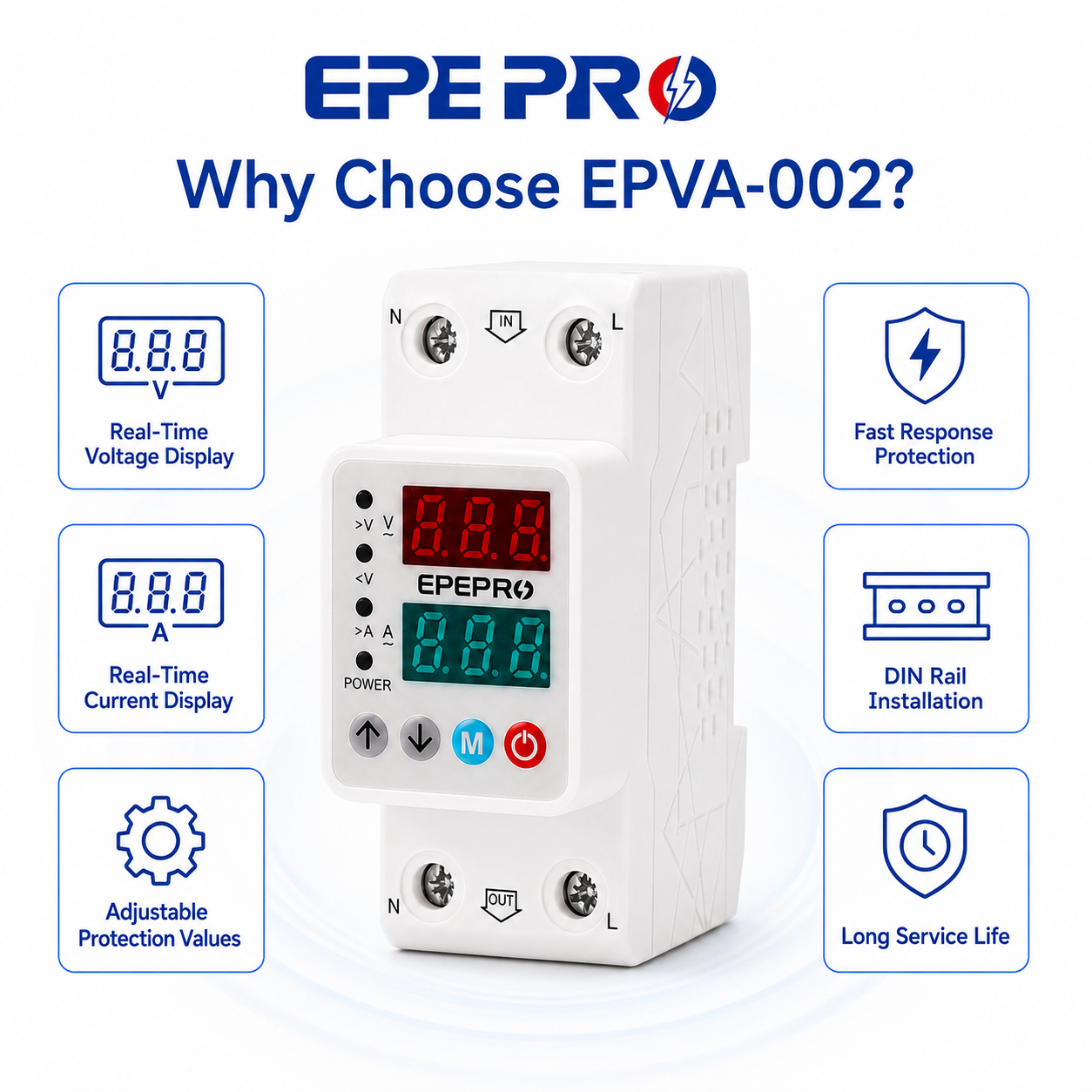

The product features LED digital display, adjustable protection values and DIN rail installation. It is suitable for household, rental house, commercial and light industrial electrical protection applications.
