| Item | Specification |
| Brand | EPEPRO |
| Model | EPVP-001 |
| Product Name | 5-in-1 Voltage Current Protector |
| Rated Current | 1-63A Adjustable |
| Applicable System | Single Phase AC Circuit |
| Display Functions | Voltage / Current / Power / Frequency / Energy |
| Over Voltage Protection | 230-300V Adjustable |
| Under Voltage Protection | 140-210V Adjustable |
| Over Current Protection | 1-63A Adjustable |
| Power-on Delay | 1-500s Adjustable |
| Recovery Time | 1-600s Adjustable |
| Continuous Overcurrent Count | 0-20 / OFF |
| Energy Limit Protection | 1-30000 |
| Over Voltage Recovery | Default 5V Hysteresis |
| Installation Method | DIN Rail Mounting |
| Wiring Type | N / L Input, N / L Output |
| Product Size | 85 × 36 × 50mm |
| Side Depth | 60mm |
| Housing | Flame Retardant Housing |
| Application | Distribution Box, Home Electrical System, Solar System, Generator System, Industrial Equipment |
| OEM / ODM | Custom Logo, Custom Label, Custom Model Number, Custom Packaging |

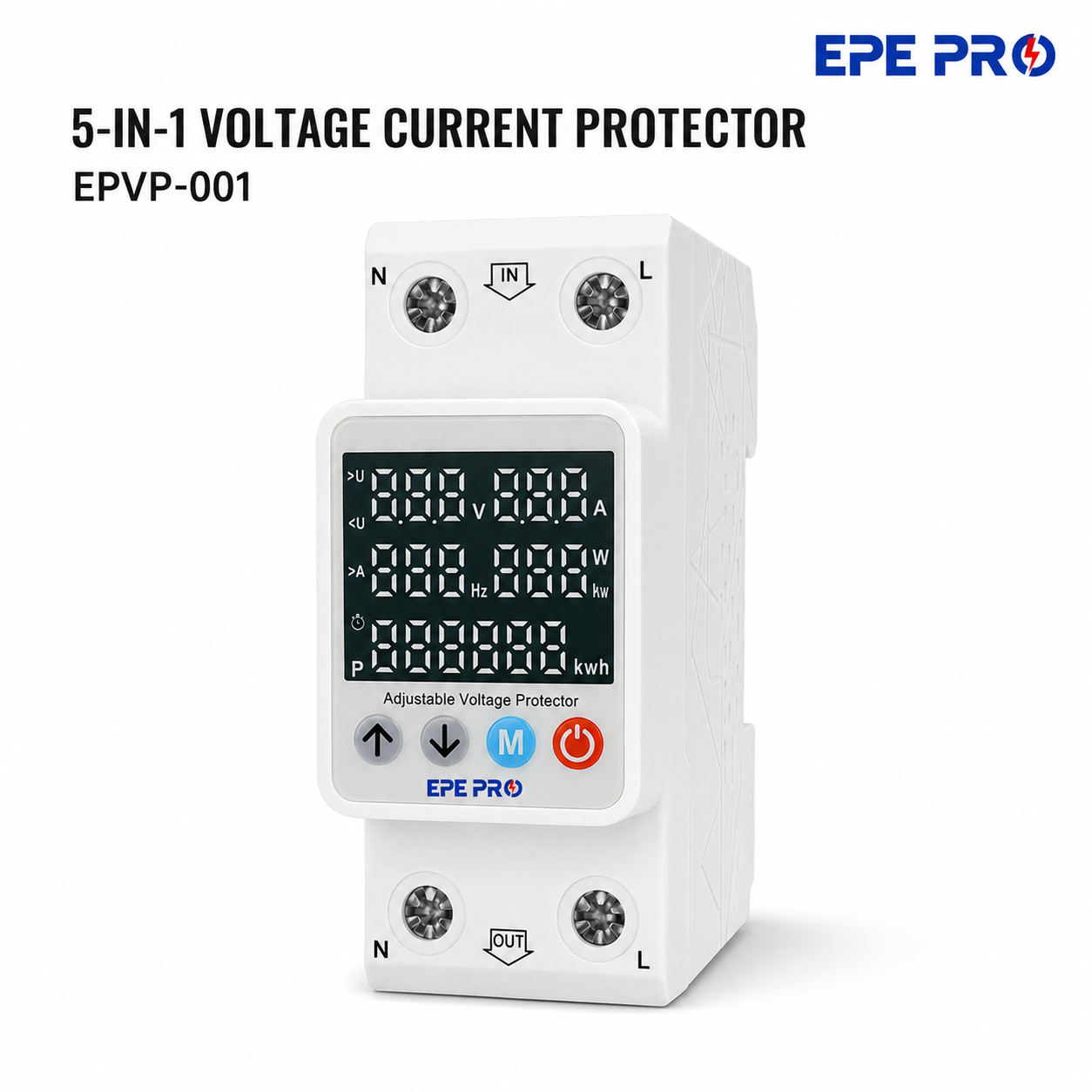

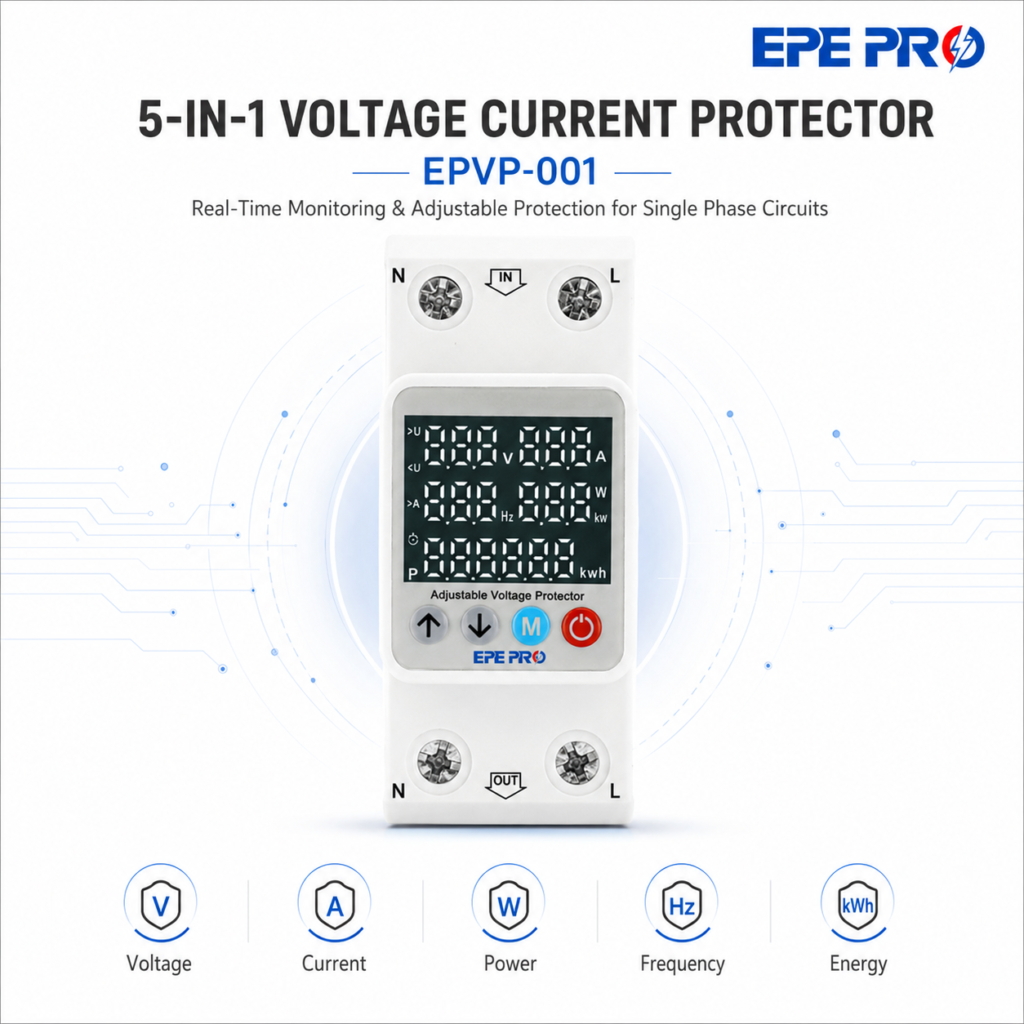

The EPVP-001 is a multifunctional voltage and current protector designed for single phase electrical circuits. It integrates real-time monitoring and adjustable protection functions in one compact DIN rail device.
With a large digital display, the protector can show voltage, current, power, frequency and energy consumption at the same time, helping users monitor circuit status clearly and quickly.

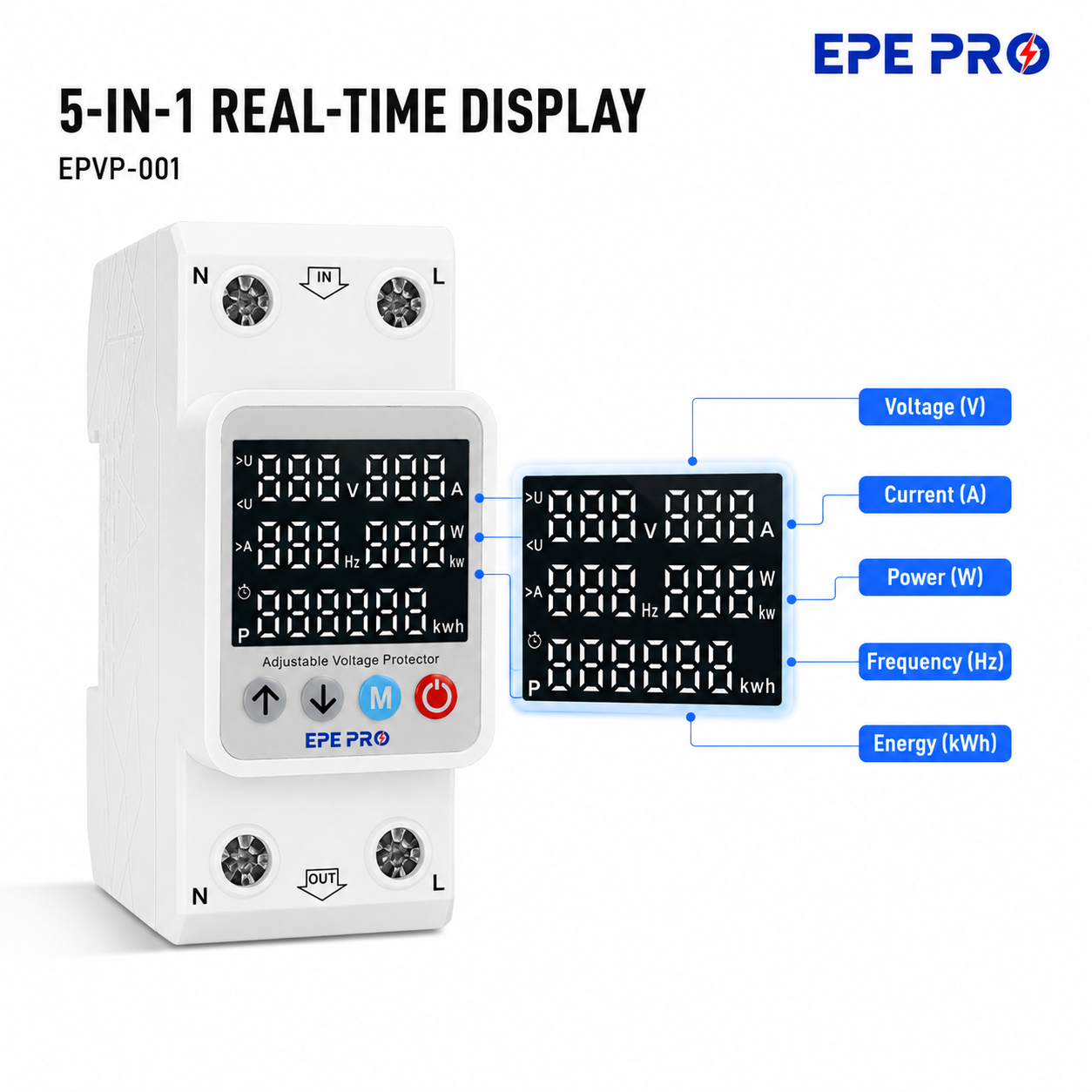

5-in-1 Real-Time Display
Displays voltage, current, power, frequency and energy consumption on one screen.

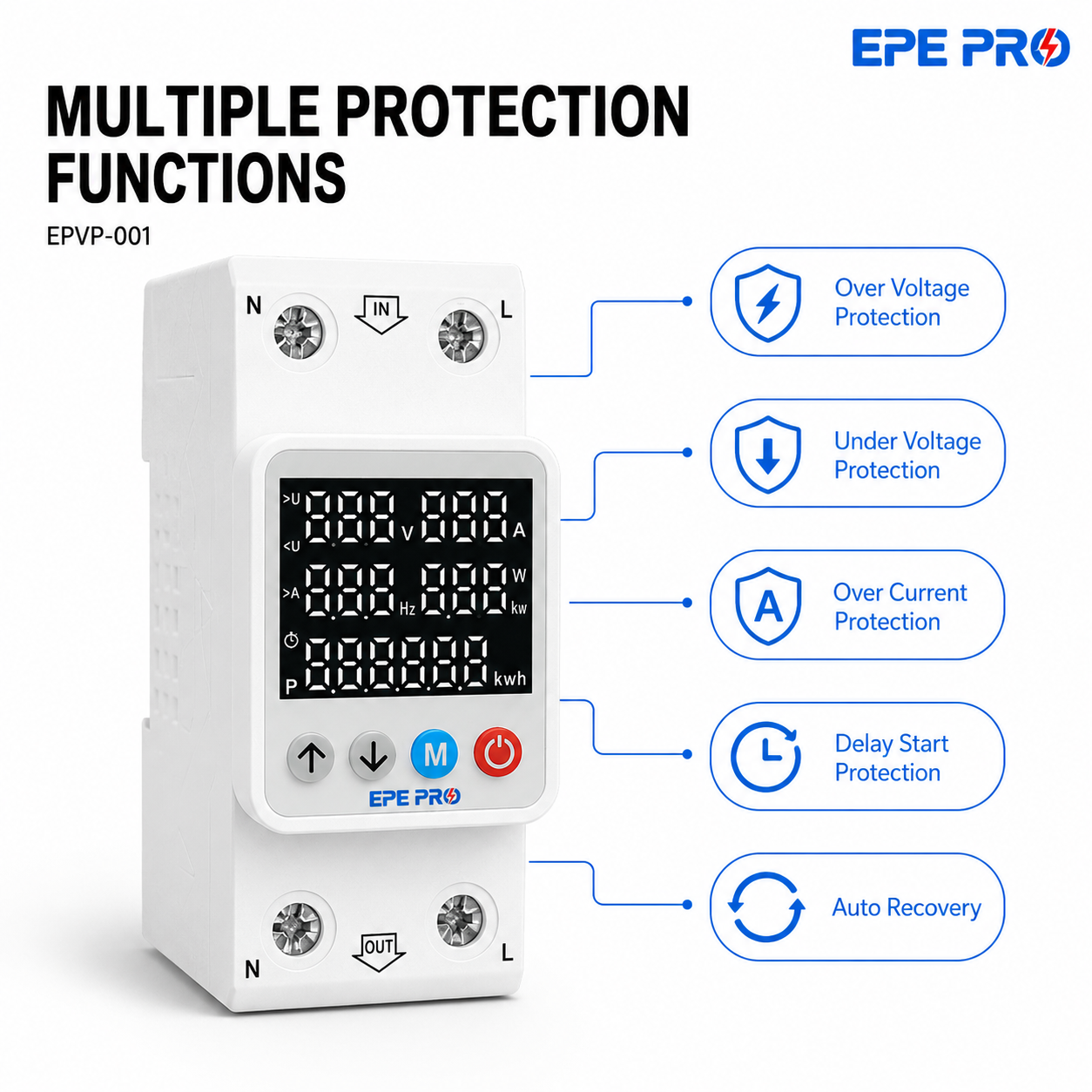

Multiple Protection Functions
Supports over voltage protection, under voltage protection, over current protection, delay start protection and automatic recovery.

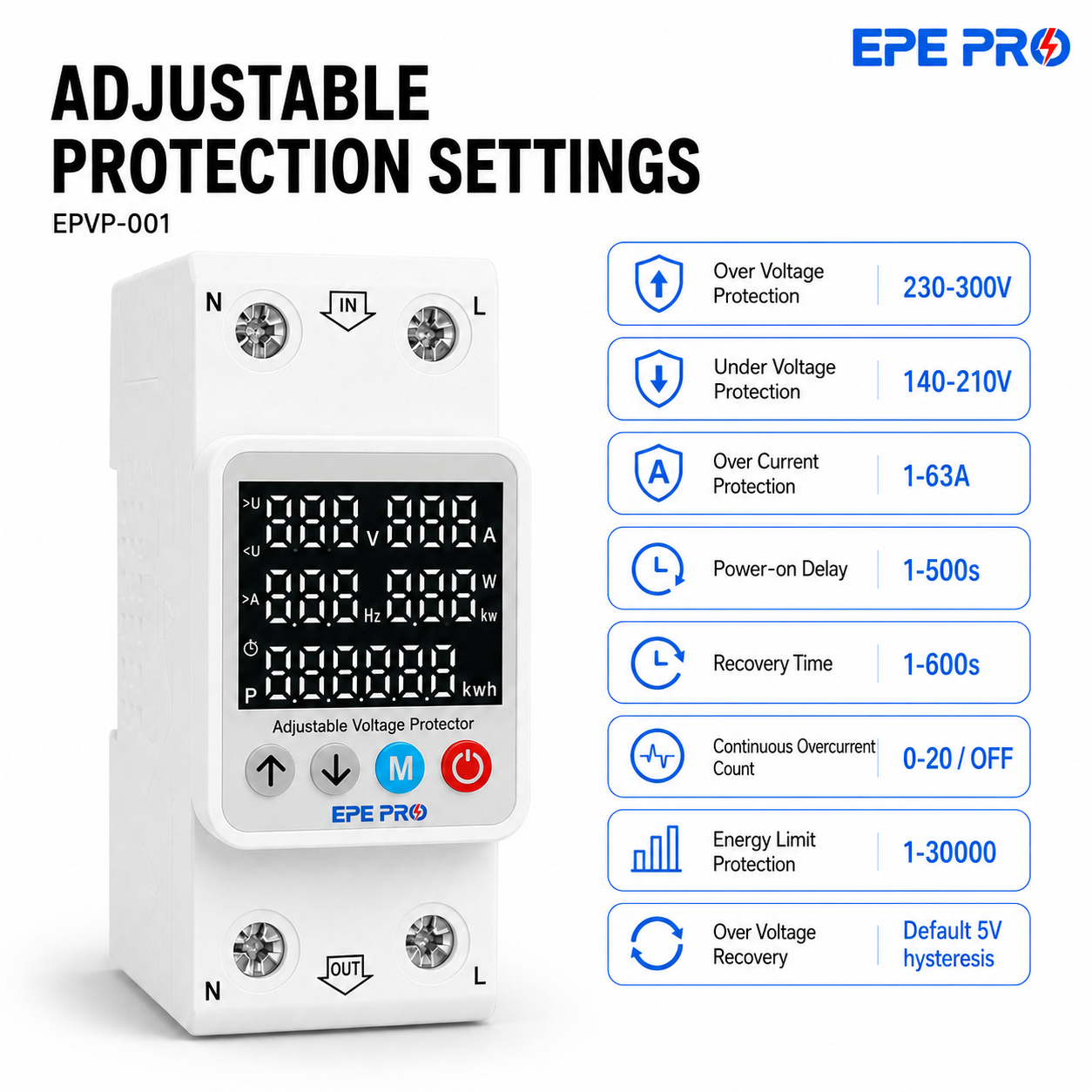

Adjustable Protection Settings
Protection values can be adjusted according to different electrical environments and customer requirements.
Compact DIN Rail Design
Standard DIN rail mounting, compact structure, suitable for distribution boxes and control cabinets.
Easy Wiring Connection
Clear N / L input and output terminals make installation simple and convenient.

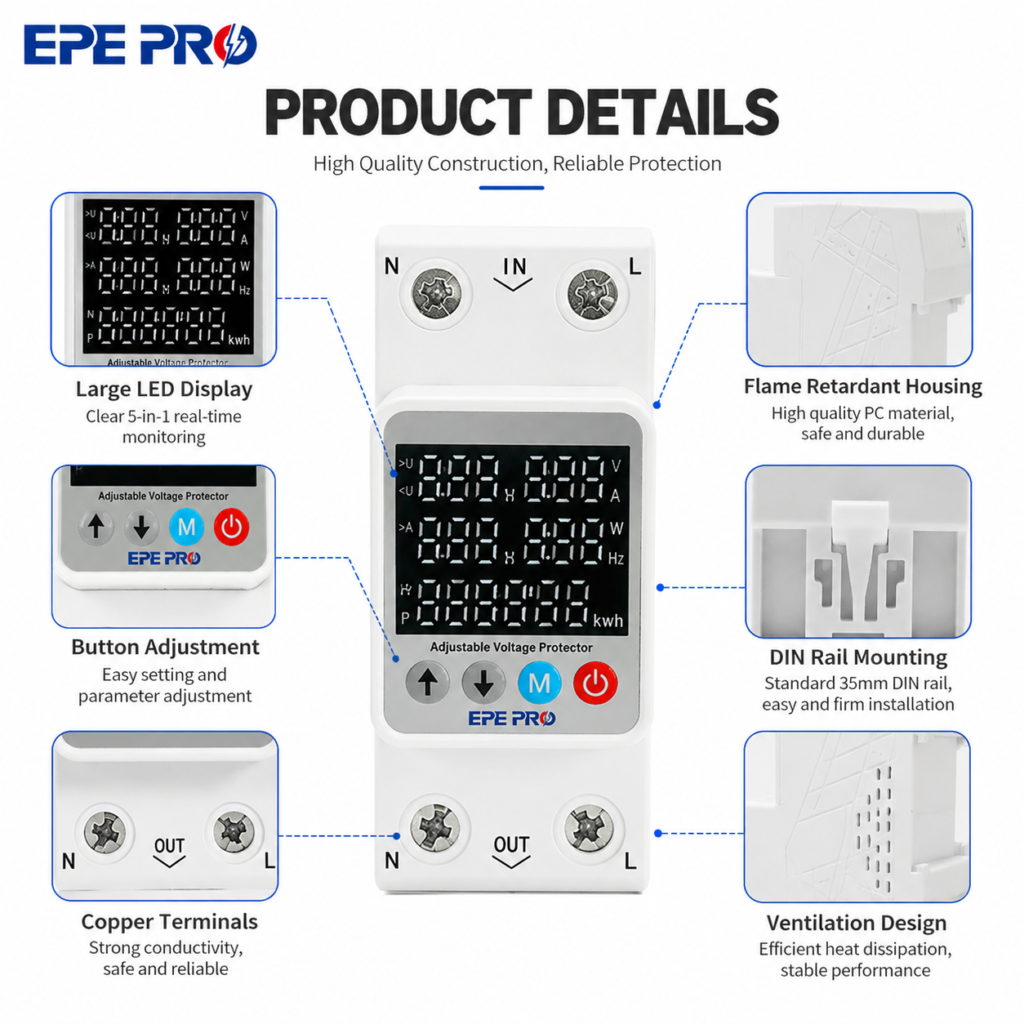

Reliable Structure
Flame retardant housing, copper terminals, button adjustment and ventilation design ensure stable operation.
