Item	Parameter
Model	1038 (Φ10×38)
Rated Voltage	1000V DC
Fuse Characteristic	gPV
Rated Breaking Capacity	20kA
Standard	IEC60269, CE Certified
Size	10mm Diameter, 38mm Length
Ambient Temperature	-30℃ ~ 70℃
Rated Current	15A (Multiple current options available)
Application	Solar PV Combiner Box, PV String Protection

gPV photovoltaic grade fuse, specially designed for solar DC system, reliable protection for PV modules.
Rated up to 1000VDC, breaking capacity 20kA, provides overload & short-circuit protection.

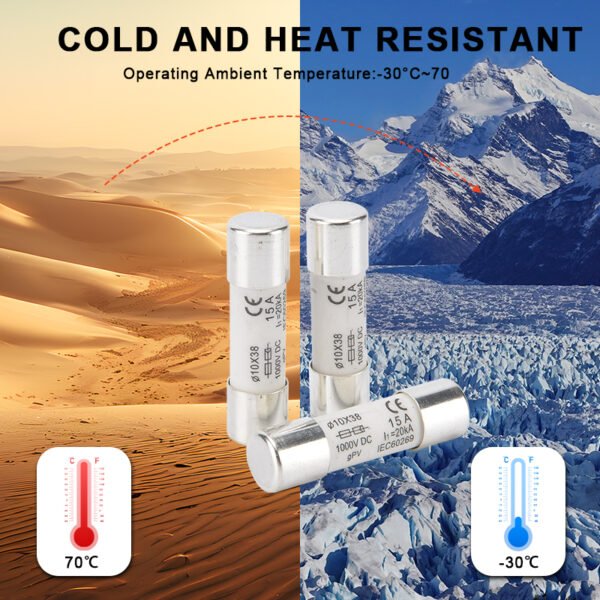

Wide temperature adaptability: -30℃~70℃, stable performance in desert & alpine outdoor environments.

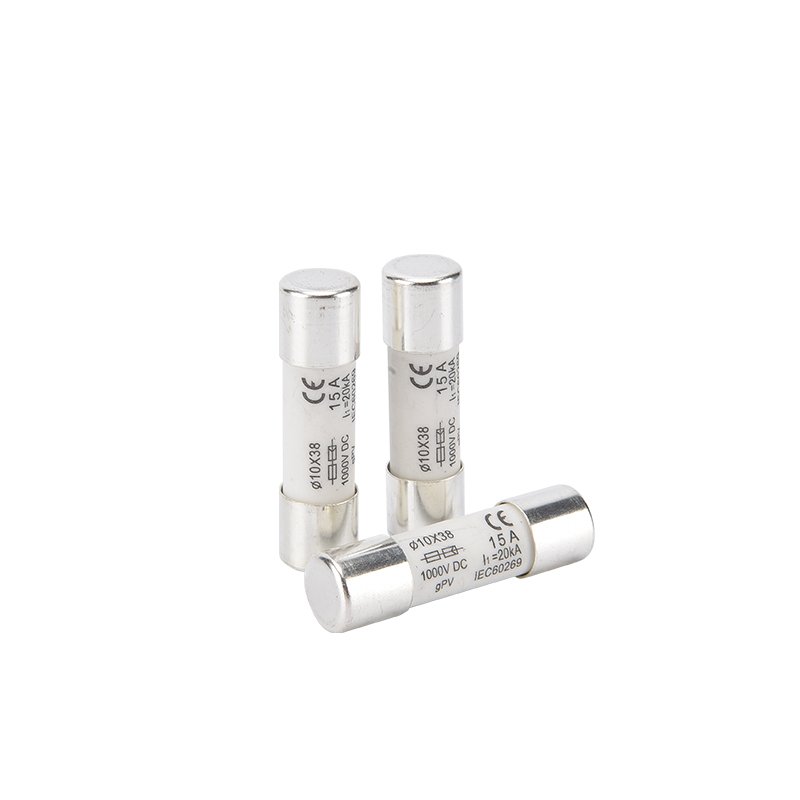

Cylindrical ceramic body with silver end caps, high heat resistance, arc extinguishing performance.
Comply with IEC60269 standard, CE certified, safe for global solar projects.
Standard 10×38 dimension, compatible with matching PV fuse holder, easy installation & replacement.
