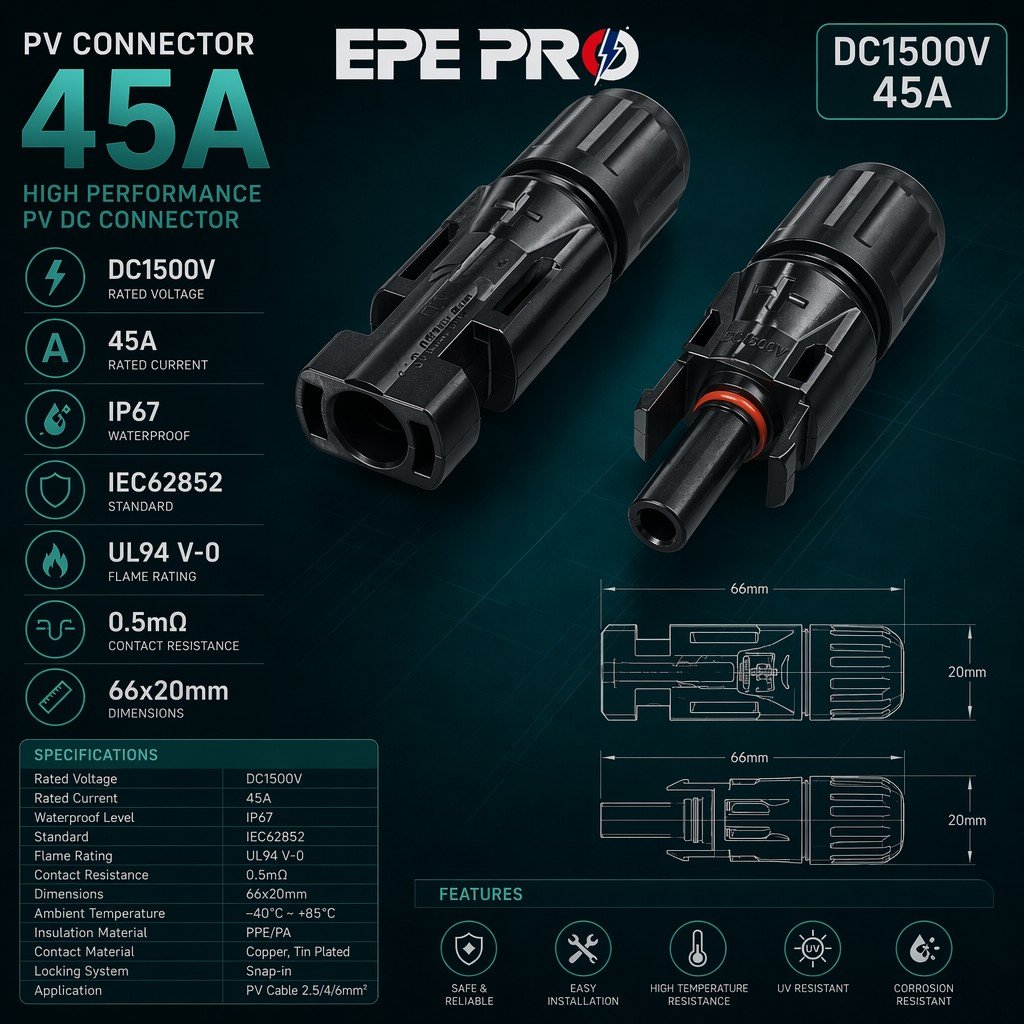

| Item | Parameter |
|---|---|
| Model | PVCNT‑45A |
| Rated Voltage | DC1500V |
| Rated Current | 45A |
| Waterproof Grade | IP67 |
| Contact Resistance | ≤0.5mΩ |
| Insulation Material | PPE/PA, UL94 V‑0 Flame Retardant |
| Contact Material | Tin‑plated Copper Alloy |
| Standard | IEC62852 |
| Operating Temperature | -40℃ ~ +85℃ |
| Dimension | 66×20mm |
| Applicable Cable | 2.5/4/6mm² PV cable |
| Certification | TUV, CE, RoHS |
| Lock Type | Snap‑in locking design |
EPE PRO PVCNT‑45A PV connector is designed for solar photovoltaic systems, solar panels, inverters and combiner boxes.
1.IP67 waterproof & dust‑proof with EPDM sealing ring, anti‑UV, stable performance under outdoor harsh weather conditions.
2.Tin‑plated copper contact pin, ultra‑low contact resistance, excellent conductivity to reduce power loss.
3.PPE/PA flame‑retardant housing, UL94 V‑0 rating, high temperature and corrosion resistance for long‑term outdoor service.
4.Snap‑in locking mechanism, quick plug‑in installation, firm locking to prevent accidental disconnection.
5.Complies with IEC62852 standard, passed waterproof, insulation and salt‑spray tests, safe and reliable.
6.Fits 2.5/4/6mm² solar PV cables, widely used for on‑grid & off‑grid solar power stations, rooftop solar projects.
