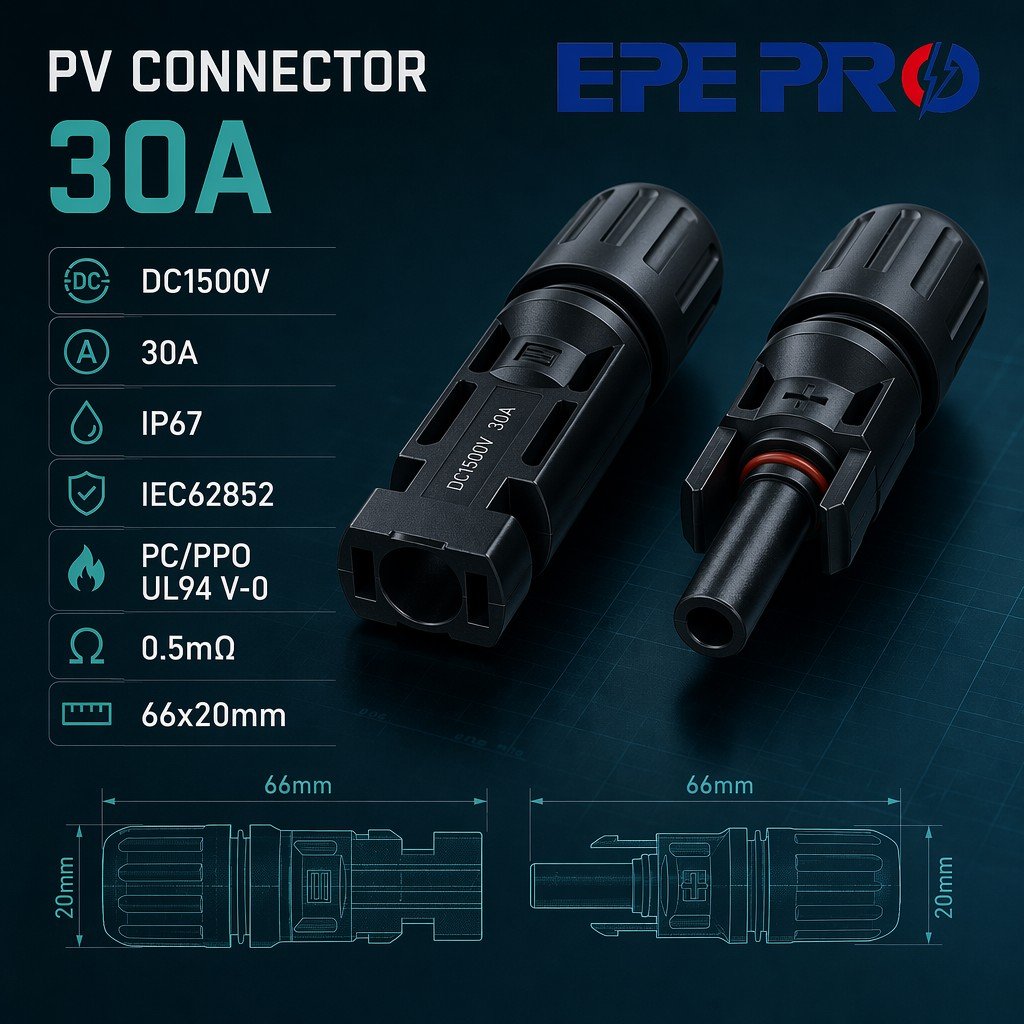

Item	Parameter
Model	PVCNT-30A
Rated Voltage	DC1500V
Rated Current	30A
Waterproof Grade	IP67
Contact Resistance	≤0.5mΩ
Insulation Material	PC/PPO, UL94 V-0 Flame Retardant
Contact Material	Tin-plated Brass Copper Alloy
Standard	IEC62852
Operating Temperature	-40℃ ~ +85℃
Dimension	66×20mm
Certification	TUV, CE, RoHS
Lock Type	Snap-in locking design

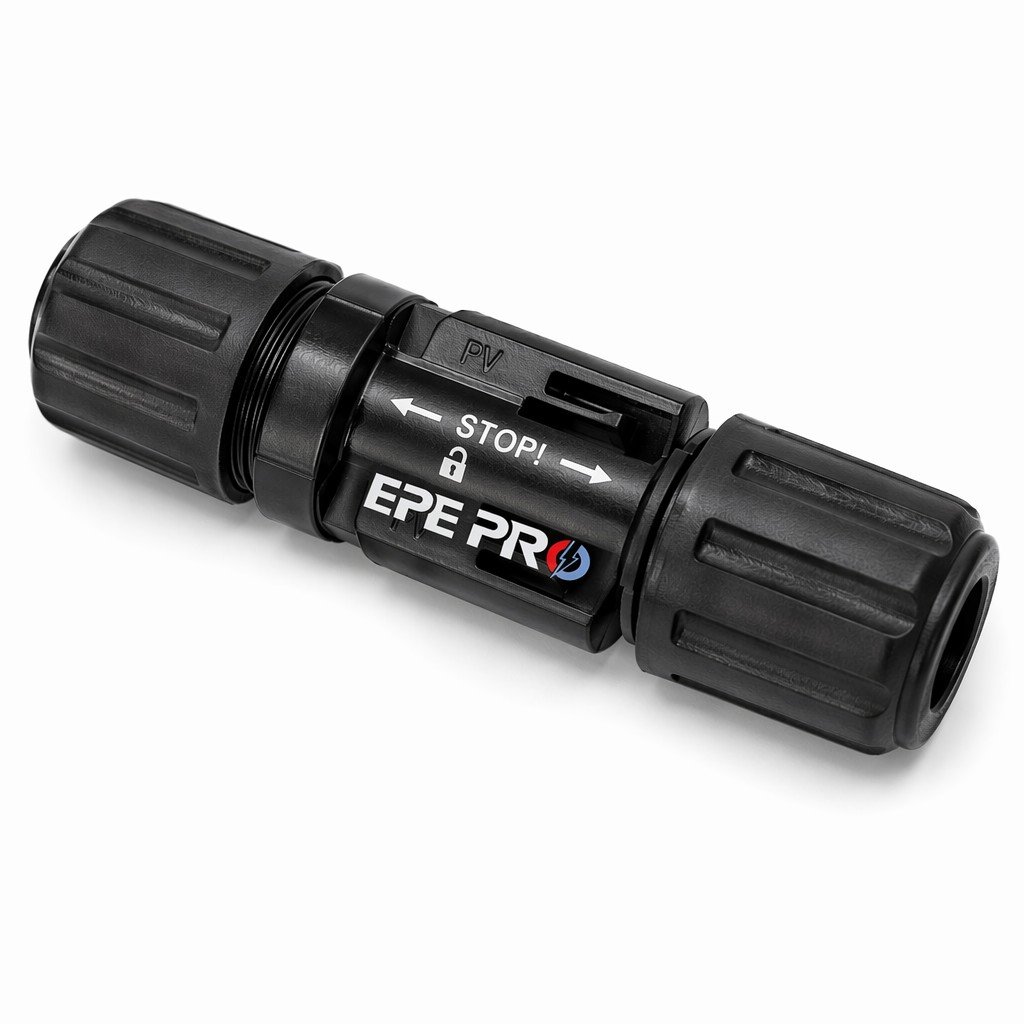

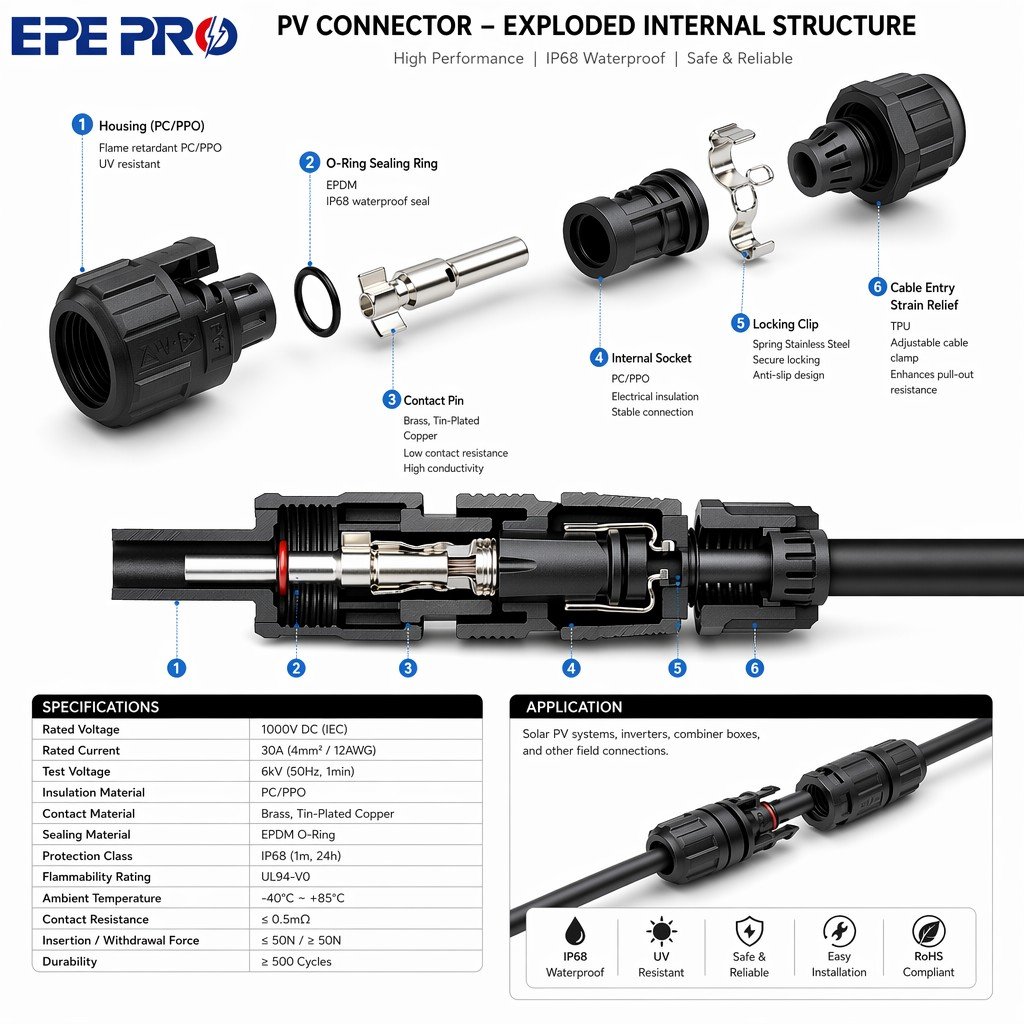

EPEPRO PVCNT-30A PV connector is specially designed for solar PV power systems, solar panels, combiner boxes and inverters.

IP67 waterproof & dustproof, with EPDM sealing ring, works stably in outdoor harsh environment, rainproof and anti-UV aging.
Tin-plated brass contact pin, ultra-low contact resistance, excellent conductivity, reduce power loss.
PC/PPO flame retardant housing with UL94 V-0 rating, high temperature resistance, anti-crack for long time outdoor use.
Snap-in locking structure, easy plug & install, secure lock connection, prevent accidental disconnection.
Complies with IEC62852 standard, passed strict waterproof, insulation and salt spray test, safe and reliable.
Widely used in off-grid & on-grid solar power station, rooftop solar project, solar battery connection.
