| Brand | EPEPRO |
| Current rating | 6A / 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) |
| Rated operational voltage | 400V AC |
| Product dimensions | 7.2 × 7.4 ×8.2 cm |
| Material | Copper |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |

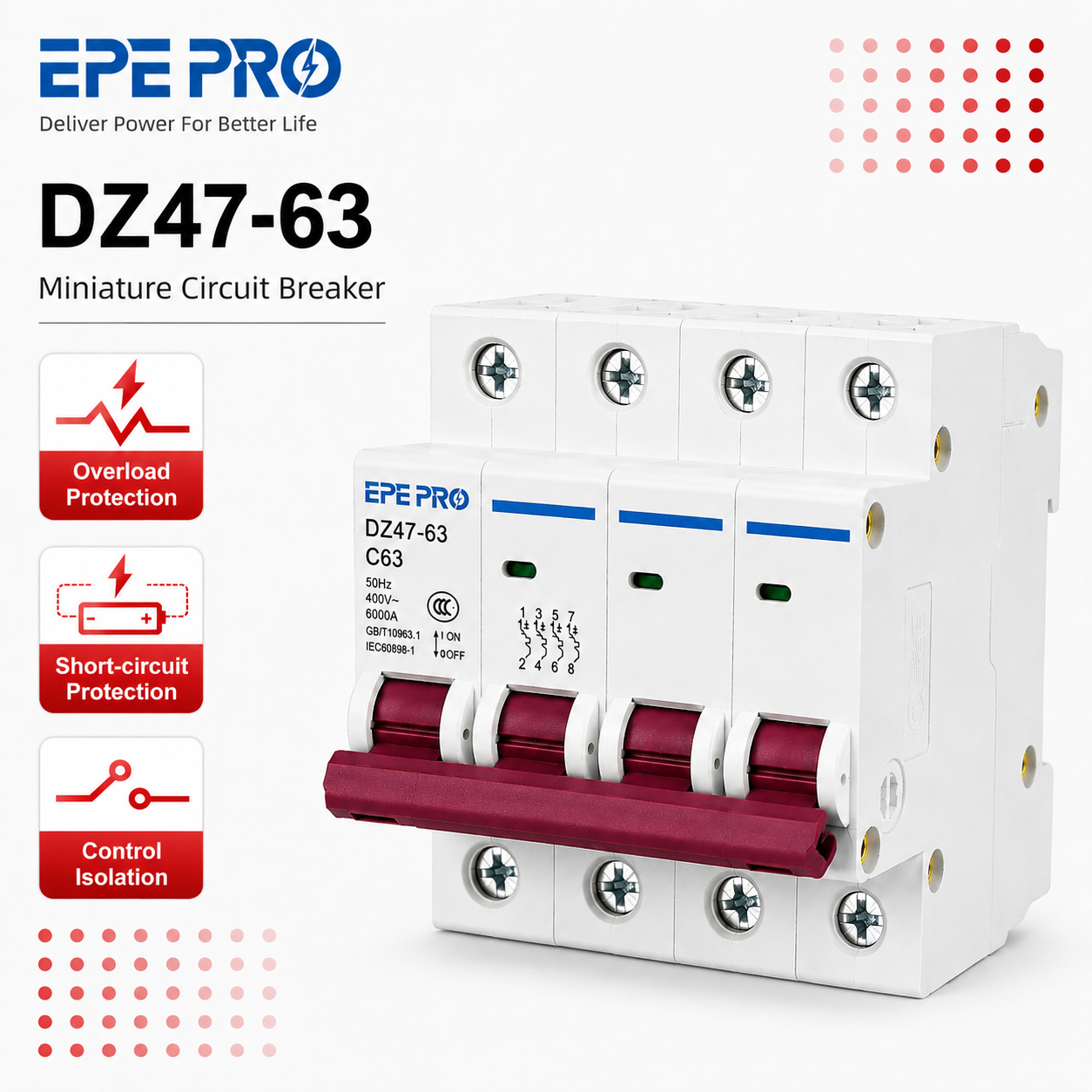

About this item

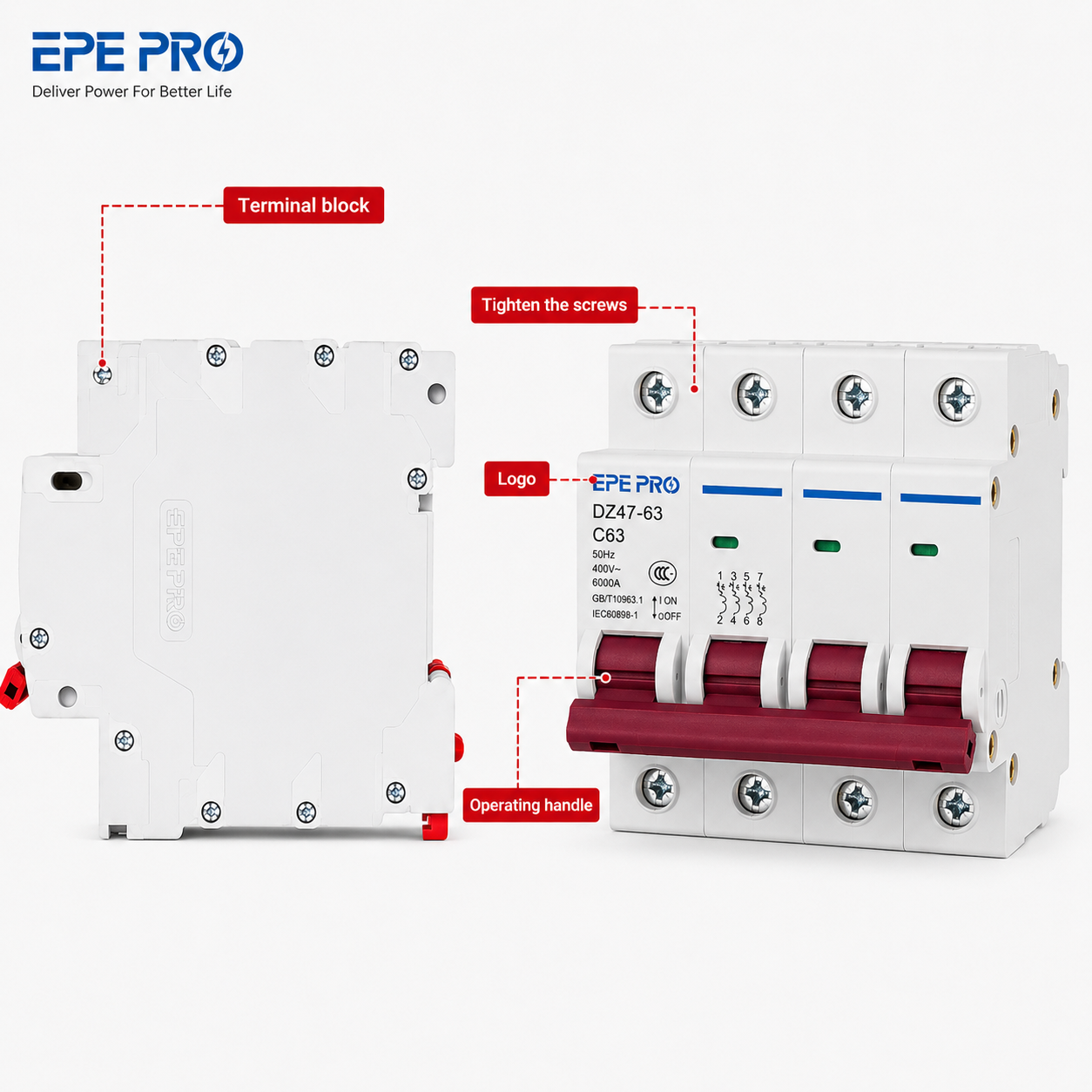

【Installation】The package includes 1× 4 pole 63A 400V AC circuit breaker, 1×35mm din rial,2×din rial sleeve,2×screw.
【Functionality】: Used to protect 400V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
【Curve C】: Magnetic trip range 5-10 times rated current.

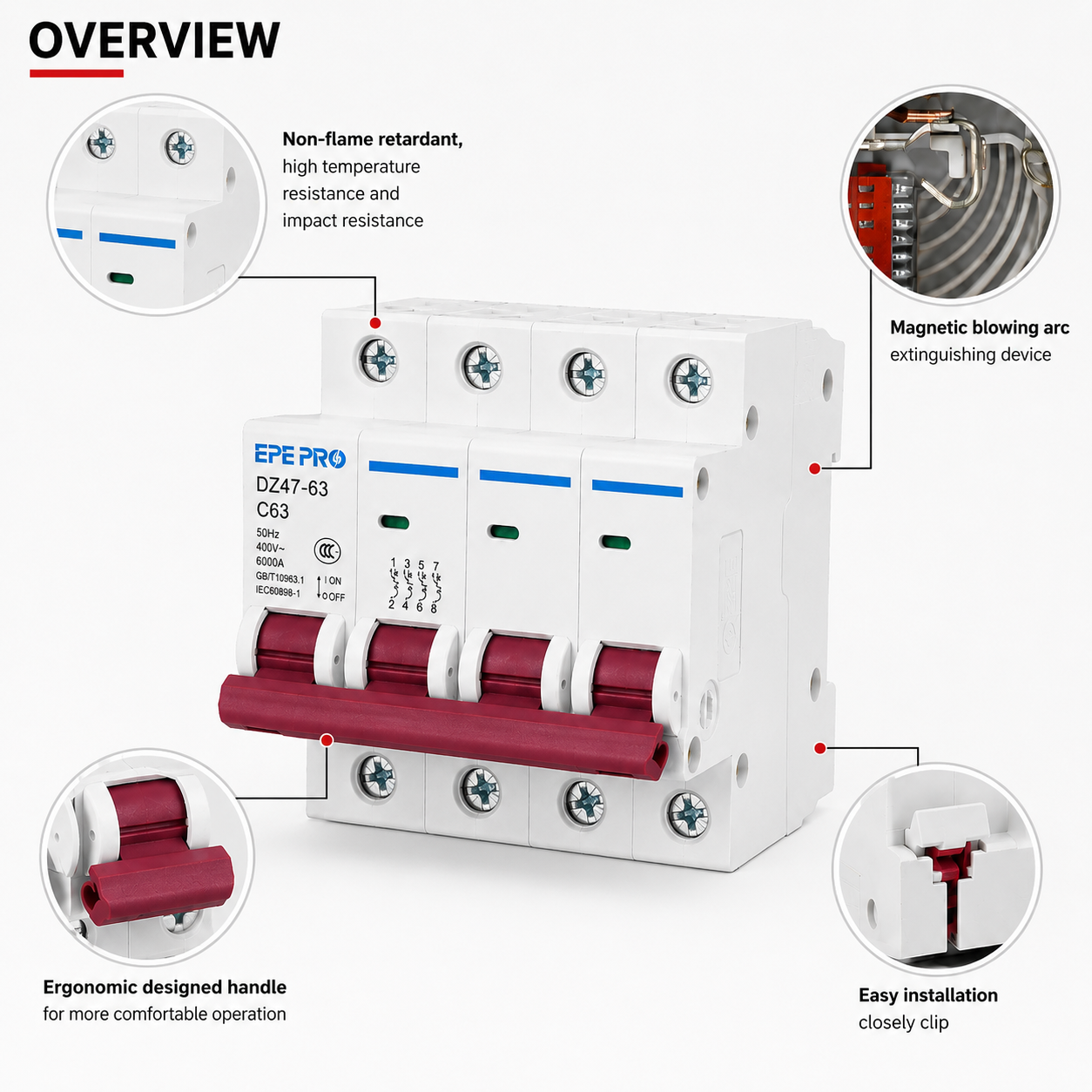

【High Quality】: Non-flame retardant shell base, B-grade double gold
【Application】: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems.
Technical Data

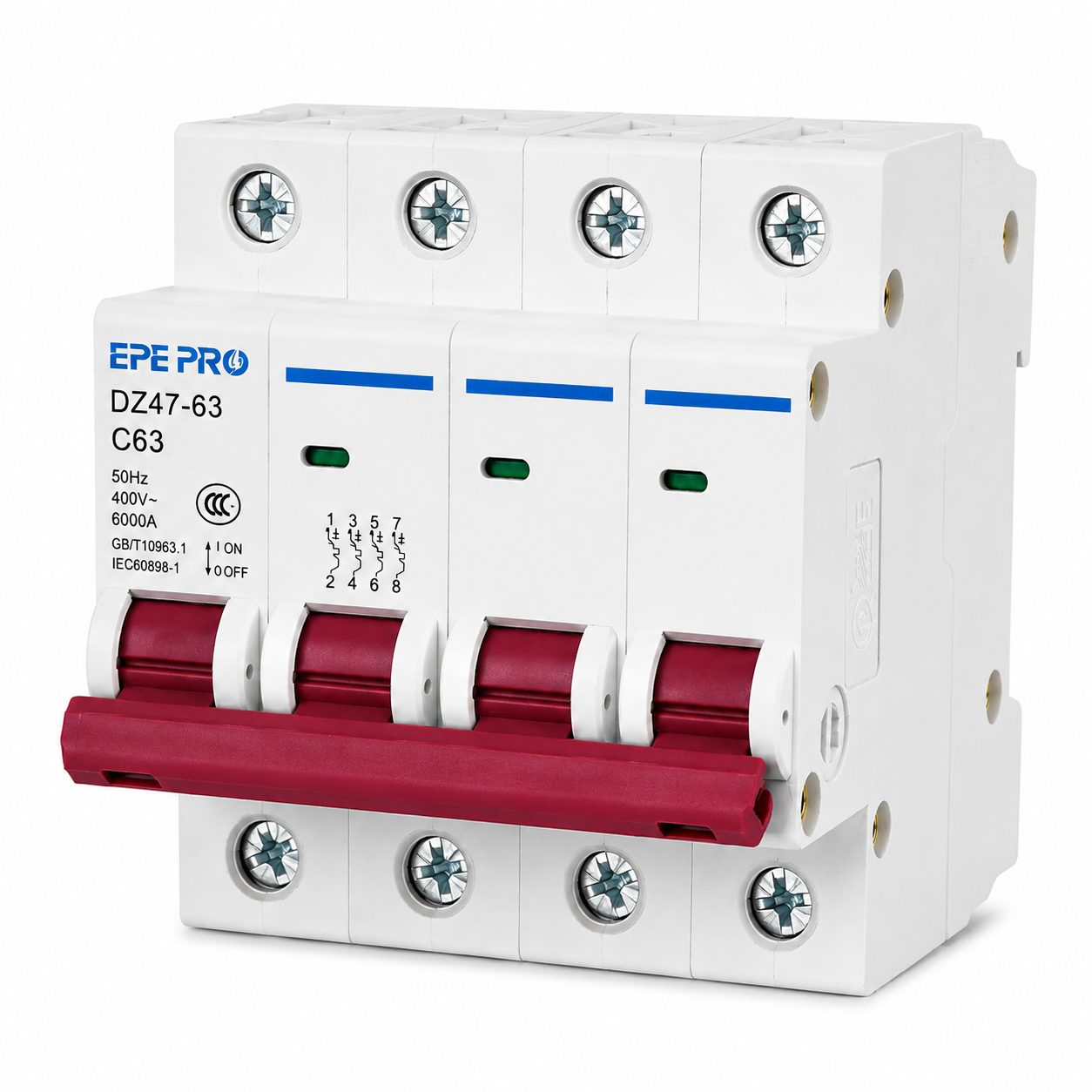

| Product type | AC miniature circuit breaker |
| Pole number | 4P |
| Rated frequency | 50/60Hz |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Electrical durability | 4000 cycles |
| Mechanical durability | 10000cycles |
| Mounting support | 35mm DIN rail |
| operating temperature | -25℃ – +60℃ |
| Standard | IEC60898-1 |
