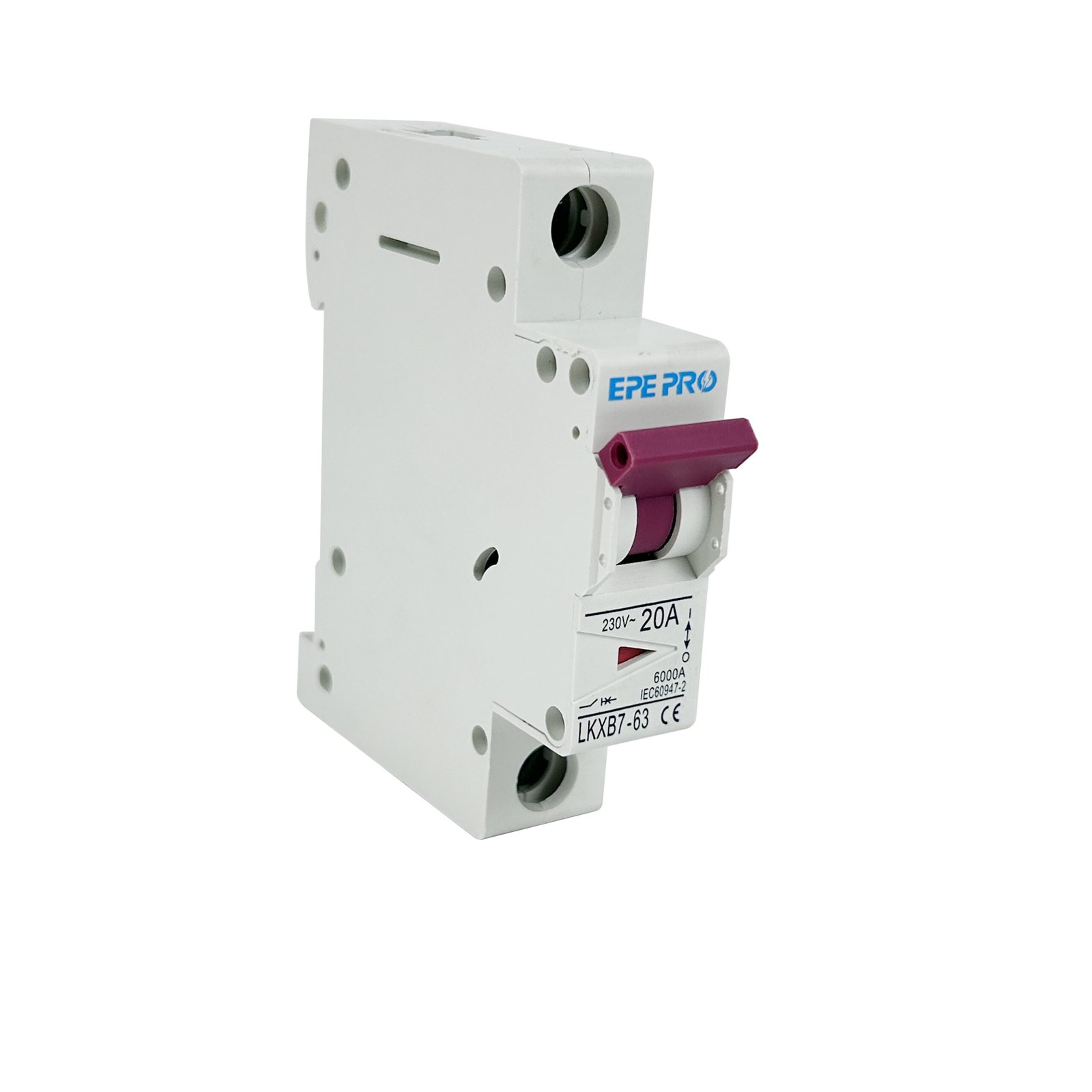

| Brand | EPEPRO |
| Model Number | L7-63A 1p |
| Current rating | 6A / 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) |
| Rated operational voltage | 120V / 240V AC |
| Product dimensions | 1.8 × 7.4× 8.2 cm |
| Material | Copper |
| Mounting type | Din Rail Mount |
| Circuit breaker Type | Standard |
About this item
FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation.
CURVE C: Magnetic trip range 5-10 times rated current.

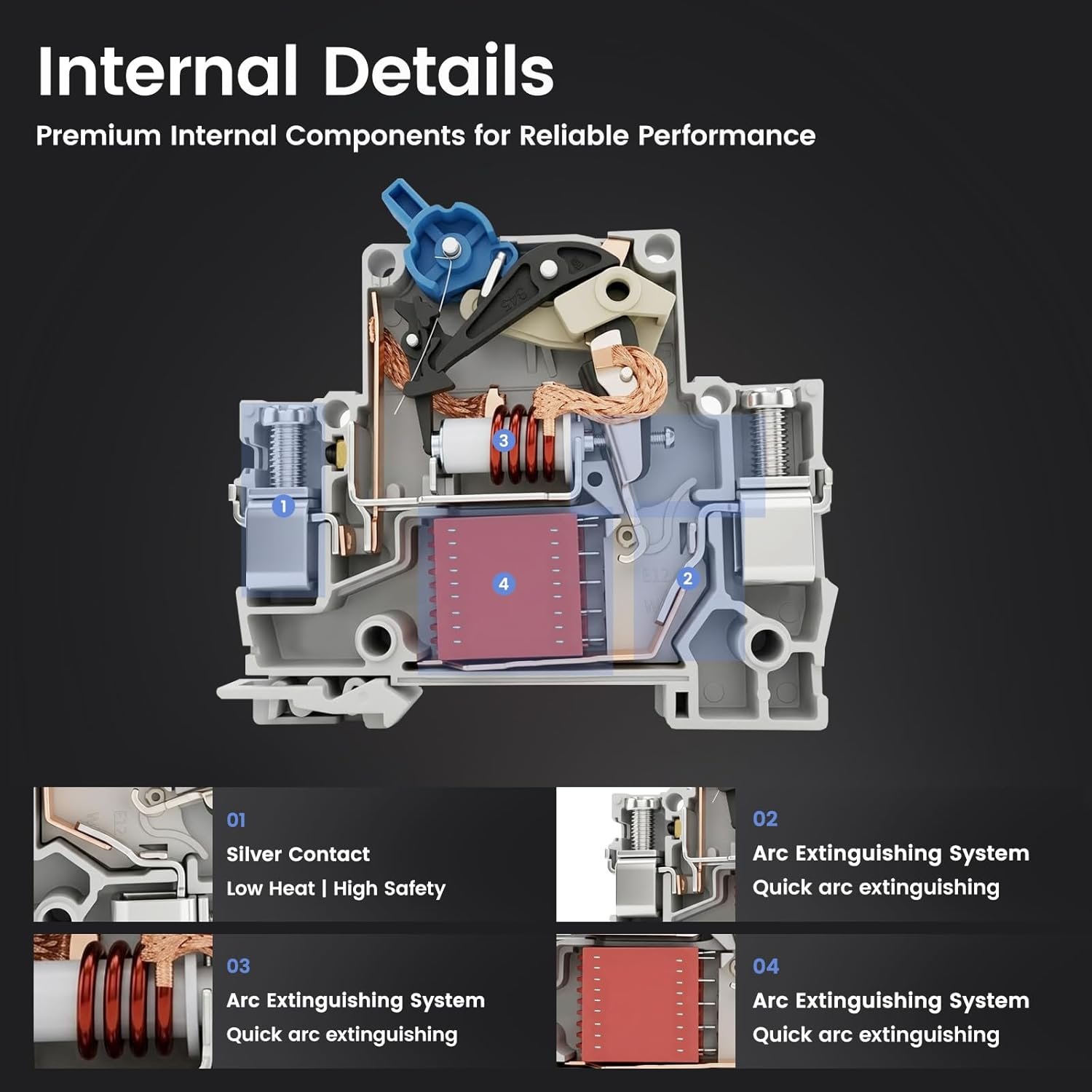

QUALITY:Flame retardant shell, copper parts, grade A double gold, 30% silver points
APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems.

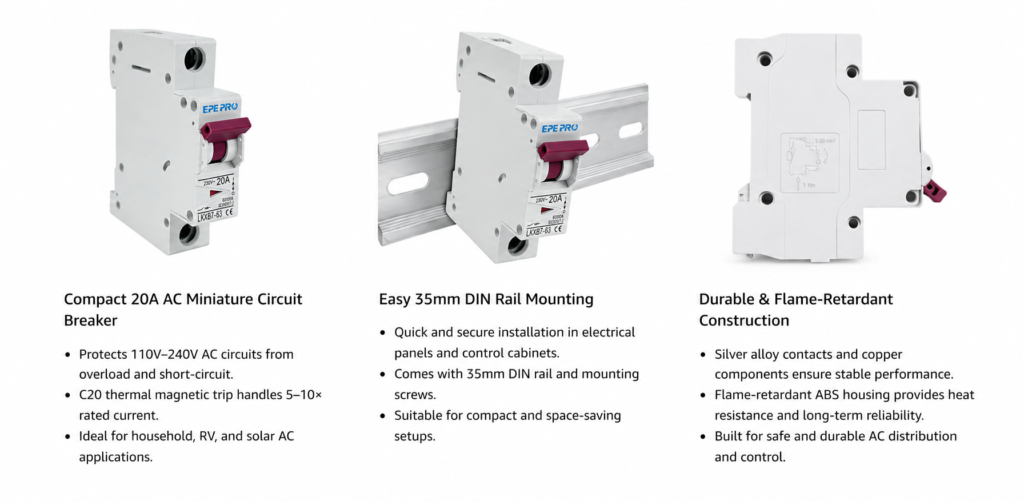

INSTALLATION: Screw clamp wires, 35mm DIN rail mount.
Technical Data
| Product type | AC miniature circuit breaker |
| Pole number | 1P |
| Rated frequency | 50/60Hz |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking Capacity | 6KA Ics=Icu |
| Uimp | 4kV |
| Tightening torque | 2.5N.m |
| Electrical durability | 4000 cycles |
| Mechanical durability | 10000cycles |
| Mounting support | 35mm DIN rail |
| operating temperature | -25℃ – +60℃ |
| Standard | IEC60898-1 |
